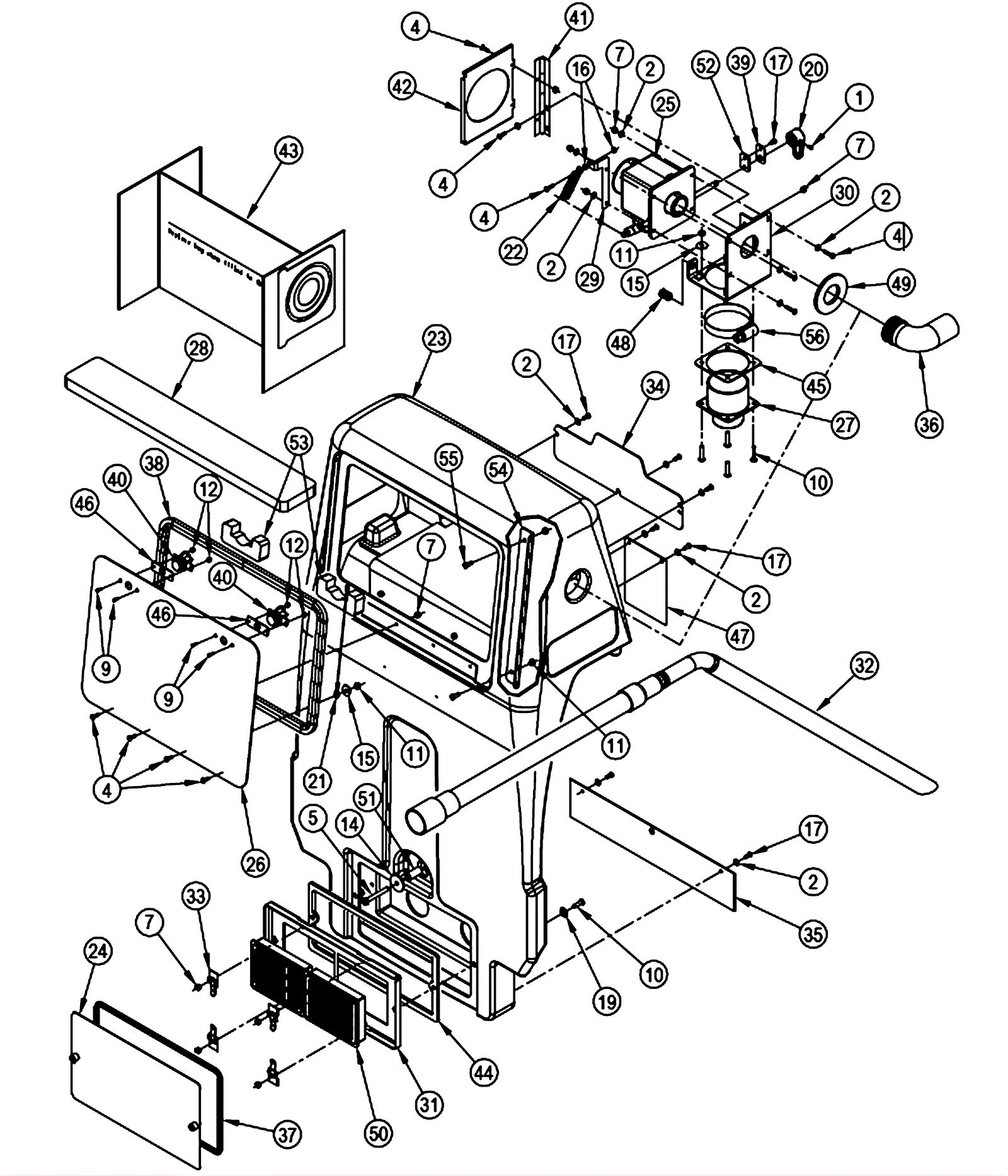

VACRIDE Recovery Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0903 Screw 10-24 x 3/8 knurled point socket set plain finish $0.99 1 ships same day
2 999-1862 Washer #10 flat SAE stainless steel $0.99 15 ships same day
4 999-1862 Washer #10 flat SAE stainless steel $0.99 15 ships same day
5 272-8818 Screw 5/16-18 x 2 1/2 hex head $10.52 1 usually ships 1-5 days
7 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 16 ships same day
9 999-0618 Screw 3/8-16 x 1 1/4 socket head stainless steel $2.64 4 ships same day
10 999-0432 Screw 1/4-20 x 1 1/4 pan head phillips zinc plated $0.99 6 ships same day
11 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
12 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 4 ships same day
14 N/A Not available Call for price 1 (Washer) usually ships 3-26 days
15 172-0553 Washer 17/64 x 1/16 flat $10.85 2 usually ships 17-28 days
16 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
17 182-0034 Screw 10-14 x 1/2 pan head plastite $4.61 8 ships same day
19 172-1950 Washer 5/16 sealine stainless steel $12.31 2 usually ships 1-5 days
20 272-8820 Lever $18.38 1 usually ships 17-28 days
21 181-0249 Wire rope (OBSOLETE) $9.90 1 usually ships 1-5 days
22 172-2341 Extension spring $13.76 1 usually ships 17-28 days
23 272-8821 Tank vacuum $748.00 1 usually ships 1-5 days
24 272-8822 Cover filter $81.44 1 usually ships 1-5 days
25 272-8823 Vacuum diverter assembly $183.90 1 usually ships 17-28 days
26 272-8824 Vacuum tank cover weldment $60.50 1 usually ships 1-5 days
27 272-8825 Vacuum hose fitting (OBSOLETE) $9.89 1 usually ships 17-28 days
28 272-8826 Filter $27.93 1 usually ships 1-5 days
29 272-8827 Bracket spring mount $14.30 1 usually ships 1-5 days
30 272-8828 Bracket $56.10 1 usually ships 17-28 days
31 272-8829 Panel $31.90 1 usually ships 1-5 days
32a 272-6552 Vacuum wand with hose (OBSOLETE) $96.79 1 usually ships 1-5 days
32b 272-6553 Wand handle (OBSOLETE) $19.47 1 usually ships 1-5 days
32c 272-6554 Plastic wand $25.30 1 usually ships 1-5 days
32d 272-6555 Hose (OBSOLETE) $33.55 1 usually ships 1-5 days
33 272-8830 Snap down latch $10.01 4 usually ships 1-5 days
34 272-8831 Panel $16.50 1 usually ships 1-5 days
35 272-8832 Rear skirt $10.52 1 usually ships 1-5 days
36 272-8833 Elbow (OBSOLETE) $27.93 1 usually ships 17-28 days
37 272-8834 Gasket $24.96 1 usually ships 1-5 days
38 272-8835 Gasket (OBSOLETE) $18.70 1 usually ships 1-5 days
39 272-8836 Retainer $10.01 1 usually ships 1-5 days
40 272-8837 Knob $20.90 2 usually ships 1-5 days
41 272-8838 Hinge $19.80 1 usually ships 1-5 days
42 272-8839 Bracket $19.80 1 usually ships 1-5 days
43 272-6558 Disposable paper bags (pkg of 6) $34.87 1 ships same day
44 272-8840 Gasket $10.01 1 usually ships 1-5 days
45 272-8841 Gasket (OBSOLETE) $10.52 1 usually ships 17-28 days
46 272-8842 Gasket $10.01 2 usually ships 1-5 days
47 272-8843 Flap $10.01 1 usually ships 1-5 days
48 272-8844 Magnet $10.01 1 usually ships 1-5 days
49 272-8845 Gasket (OBSOLETE) $10.52 1 usually ships 17-28 days
50a 272-9246 HEPA filter $52.67 2 ships same day
50b 991-6032 HEPA filter $12.50 2 (NON-OEM) ships same day
51 272-8022 Phenolic spacer $12.31 1 ships same day
52 272-8846 Gasket $9.27 1 usually ships 1-5 days
53 272-8847 Foam pad $8.25 2 usually ships 1-5 days
54 272-8848 Support bracket $16.50 1 usually ships 1-5 days
55 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated $0.99 2 ships same day
