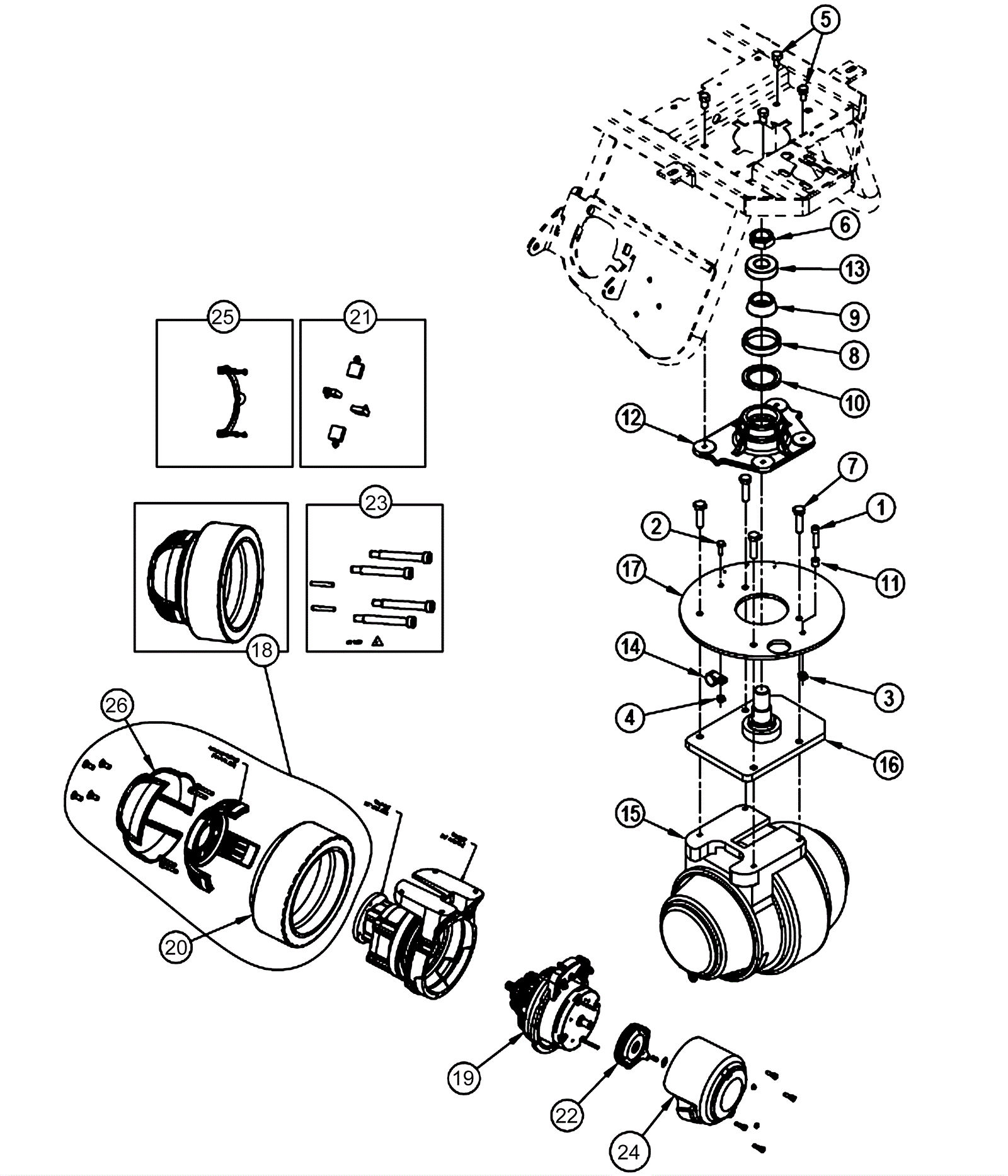

VACRIDE Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0573 Screw 5/16-18 x 1 1/4 socket head alloy plain finish $0.99 1 ships same day
2 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 usually ships 16-20 days
3 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 5 ships same day
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 5 ships same day
5 272-1652 Bolt 3/8-16 x 5/6 lock $12.89 4 usually ships 1-5 days
6 172-0951 Nut 1-14 hex thin nylock UNF $5.50 1 usually ships 1-5 days
7 272-1624 Bolt M10-1.5 x 40mm hex $14.18 4 usually ships 13-18 days
8 172-3315 Bearing cup $45.00 1 usually ships 13-18 days
9 172-3316 Bearing cone $72.26 1 usually ships 13-18 days
10 172-3317 Seal $56.65 1 usually ships 13-18 days
11 172-0068 Bushing $16.20 1 usually ships 13-18 days
12 172-3319 Bearing block $240.68 1 usually ships 13-18 days
13 172-0435 Top bearing $45.00 1 usually ships 13-18 days
14 172-2122 P clamp $12.89 1 usually ships 13-18 days
15 272-8807 Drive wheel motor $4,008.20 1 ships same day
16 272-8814 Spindle weldment $329.16 1 usually ships 1-5 days
17 172-3320 Steering plate $216.63 1 usually ships 1-5 days
18 272-5562 Tire with hub $1,555.87 1 usually ships 13-18 days
19 272-8808 Replacement drive motor $1,843.84 1 usually ships 1-5 days
20 272-8809 Tire $1,058.10 1 usually ships 13-18 days
21 272-8810 Carbon brush kit $109.53 1 usually ships 1-5 days
22 272-8811 Parking brake $1,010.09 1 usually ships 13-18 days
23 272-8604 Tire puller kit $497.64 1 usually ships 1-5 days
24 272-8598 Drive motor cover $96.35 1 usually ships 1-5 days
25 272-8813 Brake lever kit $79.22 1 usually ships 1-5 days
26 272-8597 Gearbox motor cover $50.45 1 usually ships 13-18 days
