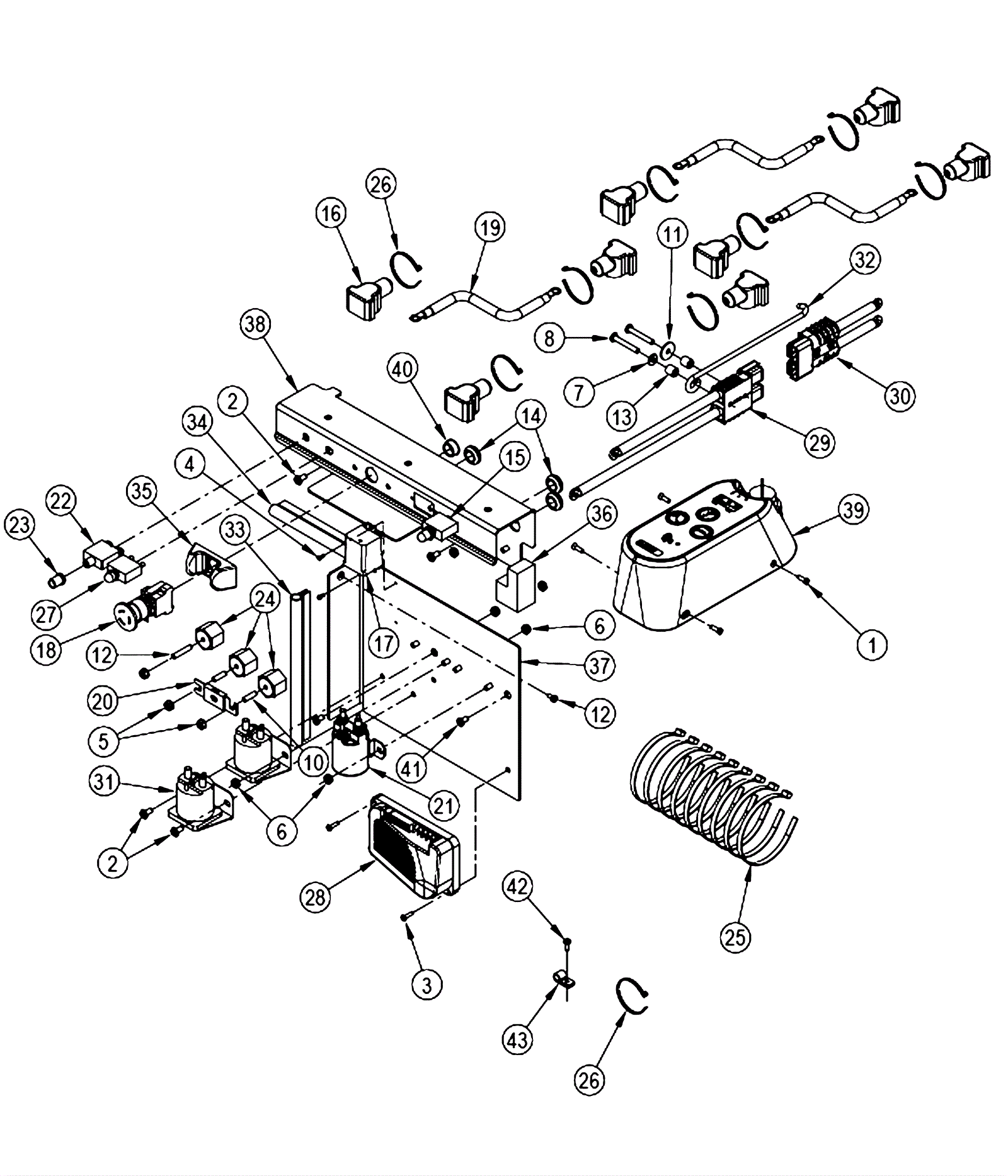

VACRIDE Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-1545 Screw 10-24 X 5/8 $5.39 4 usually ships 1-5 days
2 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 4 ships same day
3 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
4 999-0100 Screw 6-32 x 5/16 round head slotted zinc plated $0.99 2 ships same day
5 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
6 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 6 ships same day
7 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
8 999-0599 Screw 1/4-20 x 1 3/4 pan head phillips stainless steel $1.21 2 ships same day
9 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc $0.99 1 ships same day
10 172-0345 Terminal stud $12.31 2 usually ships 17-28 days
11 172-0548 Washer 17/64 x 47/64 flat stainless steel $10.85 1 usually ships 17-28 days
12 172-0346 Stud 1/4-20 $12.31 1 ships same day
13 181-0421 Spacer $13.76 2 usually ships 1-5 days
14 172-0343 Grommet $12.31 3 usually ships 17-28 days
15 991-1628 5amp circuit breaker $13.76 1 usually ships 17-28 days
16 172-0223 Battery cable boot $9.26 8 ships same day
17 172-1768 Relay 24V SPST $39.60 1 usually ships 1-5 days
18 172-9233 Emergency stop button $268.38 1 usually ships 17-28 days
19 172-8828 Battery cable $48.18 3 ships same day
20a 172-8836 150amp fuse $19.67 1 usually ships 17-28 days
20b 991-3061 150amp fuse $48.06 1 ships same day
21a 172-2163 24V solenoid 4 post (2 large 2 small) $126.03 1 ships same day
21b 991-1226 24V solenoid 4 post (2 large 2 small) $54.00 1 (NON-OEM) usually ships 14-21 days
22a 172-2523 70amp circuit breaker $118.65 1 usually ships 1-5 days
22b 991-1633 70amp circuit breaker $57.60 1 (NON-OEM) usually ships 21-22 days
23 172-0232 Clear boot cap $34.87 1 usually ships 17-28 days
24 172-0103 Electrical mount $13.76 3 usually ships 1-5 days
25 997-2102 Cable tie $1.24 9 ships same day
26 997-2101 6 inch cable tie $0.99 9 ships same day
27 272-9374 10amp circuit breaker $24.60 1 usually ships 17-28 days
28 272-3514 Speed control $811.94 1 usually ships 17-28 days
29 272-8791 Connector assembly $72.63 1 usually ships 17-28 days
30 272-8792 Connector assembly $92.03 1 usually ships 17-28 days
31a 272-8794 24V contactor $93.46 2 usually ships 17-28 days
31b 272-8792 Connector assembly $92.03 1 usually ships 17-28 days
32 272-8795 Seat rod $12.31 1 usually ships 1-5 days
33 272-8796 Gasket $12.31 1 usually ships 1-5 days
34a 272-8797 Gasket $12.31 1 usually ships 1-5 days
34b 272-8798 Cable assembly $32.69 1 usually ships 1-5 days
35 272-8799 Emergency button guard $12.31 1 usually ships 1-5 days
36a 272-8800 Foam insert $12.31 1 usually ships 1-5 days
36b 272-8801 Main harness $594.00 1 usually ships 1-5 days
37 272-8802 Electric panel $42.90 1 usually ships 1-5 days
38 272-8803 Panel $99.00 1 usually ships 1-5 days
39a 272-8804 Interface panel assembly $955.19 1 usually ships 1-5 days
39b 272-8805 Interface panel kit(OBSOLETE) $159.50 1 usually ships 1-5 days
39c 272-2195 Key switch assembly $92.03 1 usually ships 17-28 days
39d 272-2196 Keys (pkg of 2) $40.52 1 ships same day
40 172-2306 Cap plug $12.31 1 usually ships 1-5 days
41 999-0694 Screw 1/4-20 x 1/2 flat head phillips zinc plated $0.99 2 ships same day
42 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 1 ships same day
43 272-8806 P clamp $12.31 1 usually ships 1-5 days
