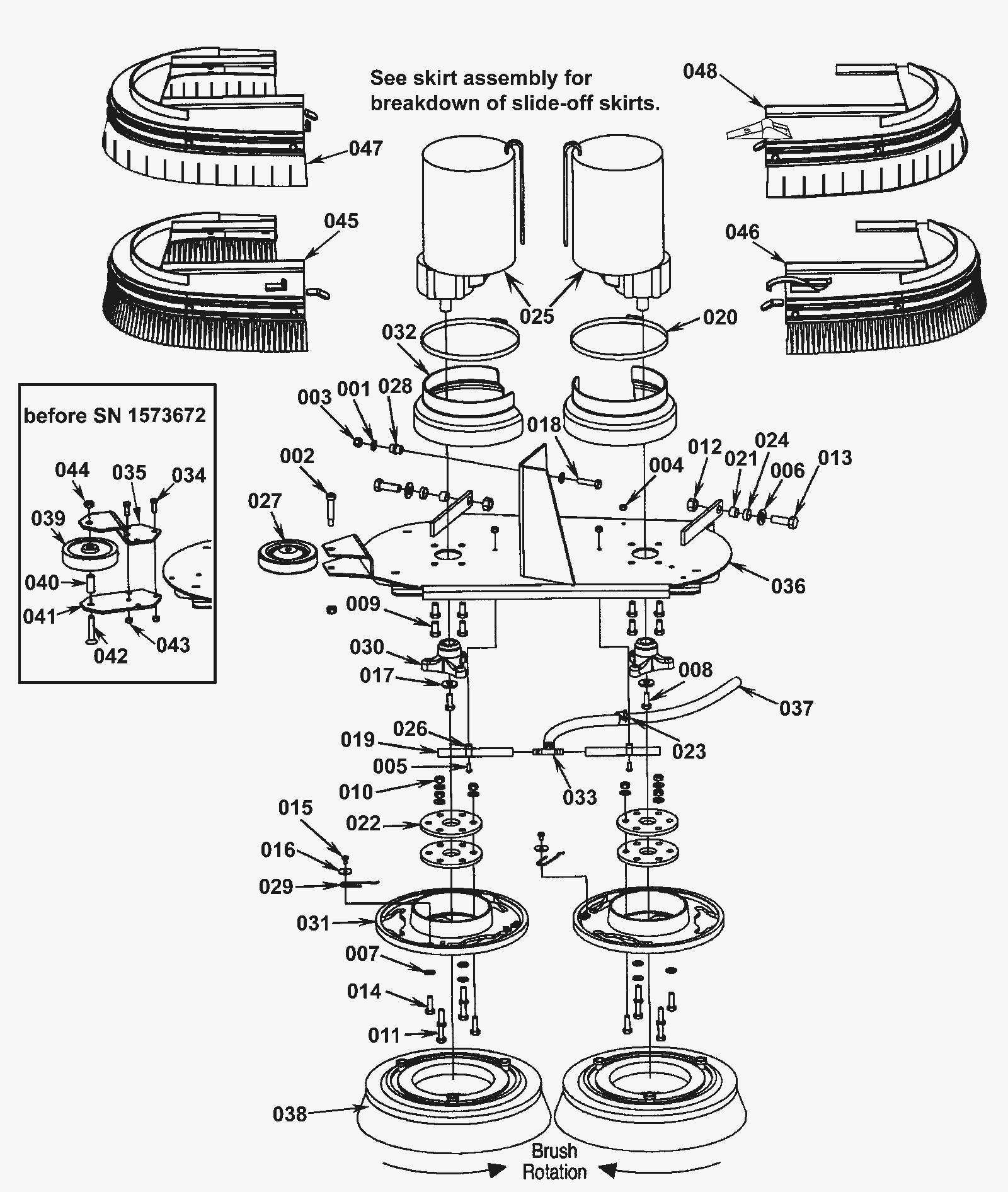

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
002 |
999-1367
|
Bolt 3/8 x 1 1/2 x 5/16-18 socket head shoulder SS |
1 |
After SN 1573671 only |
|
003 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
004a |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
3 |
After SN 1573671 only |
|
004b |
999-1036
|
Nut 8-32 hex NTM nylon insert jam lock stainless steel |
3 |
Before SN 1573672 only |
|
005a |
999-0333
|
Screw 10-24 x 1/2 pan head phillips stainless steel |
3 |
After SN 1573671 only |
|
005b |
999-0358
|
Screw 8-32 x 5/8 pan head phillips stainless steel |
3 |
Before SN 1573672 only |
|
006 |
999-0559
|
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
|
007 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
12 |
|
|
008 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
|
009 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
|
010 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
6 |
|
|
011 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
012 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
2 |
|
|
013 |
999-0504
|
Bolt M12-1.75 x 35mm hex hd stainless steel full thread |
2 |
|
|
014 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
6 |
|
|
015 |
999-0409
|
Screw 10-24 x 3/8 pan head slotted zinc plated |
2 |
|
|
016 |
999-0588
|
Washer 7/8 flat stainless steel |
2 |
|
|
017 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
018 |
172-5929
|
Screw 5-16-18 x 1.38 |
1 |
|
|
019 |
172-9890
|
PVC hose |
2 |
|
|
020 |
997-2010
|
Hose clamp |
2 |
|
|
021 |
172-0072
|
Bushing |
2 |
|
|
022 |
172-2070
|
Thermoid disk |
4 |
|
|
023 |
172-2071
|
P clamp |
1 |
|
|
024 |
172-0079
|
Sleeve bearing (OBSOLETE) |
2 |
|
|
025a |
172-2074
|
Gear motor (OBSOLETE) |
2 |
|
|
025b |
172-0479
|
Back end bearing (OBSOLETE) |
1 |
|
|
025c |
172-2053
|
Front end bearing (OBSOLETE) |
1 |
|
|
025d |
172-2054
|
Brush spring |
4 |
|
|
025e |
172-2056
|
Carbon brush (pkg of 4) |
4 |
|
|
025f |
172-2079
|
Brush board assembly (OBSOLETE) |
1 |
|
|
026a |
181-0774
|
Loop clamp |
2 |
After SN 1573671 only |
|
026b |
272-1845
|
Cable clamp |
2 |
Before SN 1573672 only |
|
027 |
172-3010
|
Wheel |
1 |
After SN 1573671 only |
|
028 |
172-2073
|
Bushing |
1 |
|
|
029 |
172-2087
|
Spring retainer |
2 |
|
|
030 |
172-2088
|
Drive hub (OBSOLETE) |
2 |
|
|
031 |
172-2089
|
Drive plate |
2 |
|
|
032 |
172-2090
|
Motor shroud (OBSOELTE) |
2 |
|
|
033 |
272-1384
|
Tee barb |
1 |
|
|
034 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
4 |
|
|
035 |
172-2082
|
Steel plate (OBSOLETE) |
2 |
|
|
036a |
272-2602
|
Scrub deck weldment 26in (OBSOLETE) |
1 |
|
|
037a |
172-2072
|
Clear PVC hose |
1 |
Convertamax 26 before SN 1517809 |
|
037b |
172-1833
|
Hose |
1 |
Convertamax 26 after SN 1517808 |
|
038 |
NOTE
|
Please See Batteries, Brushes, Pad Holders and Charger Pages |
|
Pad holder and brushes |
|
039 |
172-2085
|
Wheel |
2 |
|
|
040 |
172-2080
|
Steel spacer (OBSOLETE) |
2 |
|
|
041 |
N/A
|
Not available |
2 |
Steel plate |
|
042 |
999-0505
|
Screw 3/8-16 x 2 flat head socket zinc plated |
2 |
|
|
043 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
044 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
2 |
|
|
045 |
N/A
|
Not available |
1 |
Right bristle brush cover assembly |
|
046 |
N/A
|
Not available |
1 |
Left bristle brush cover assembly |
|
047 |
N/A
|
Not available |
1 |
Left side brush cover assembly |
|
048 |
272-2609
|
Right rubber brush cover assembly (OBSOLETE) |
1 |
|
|
