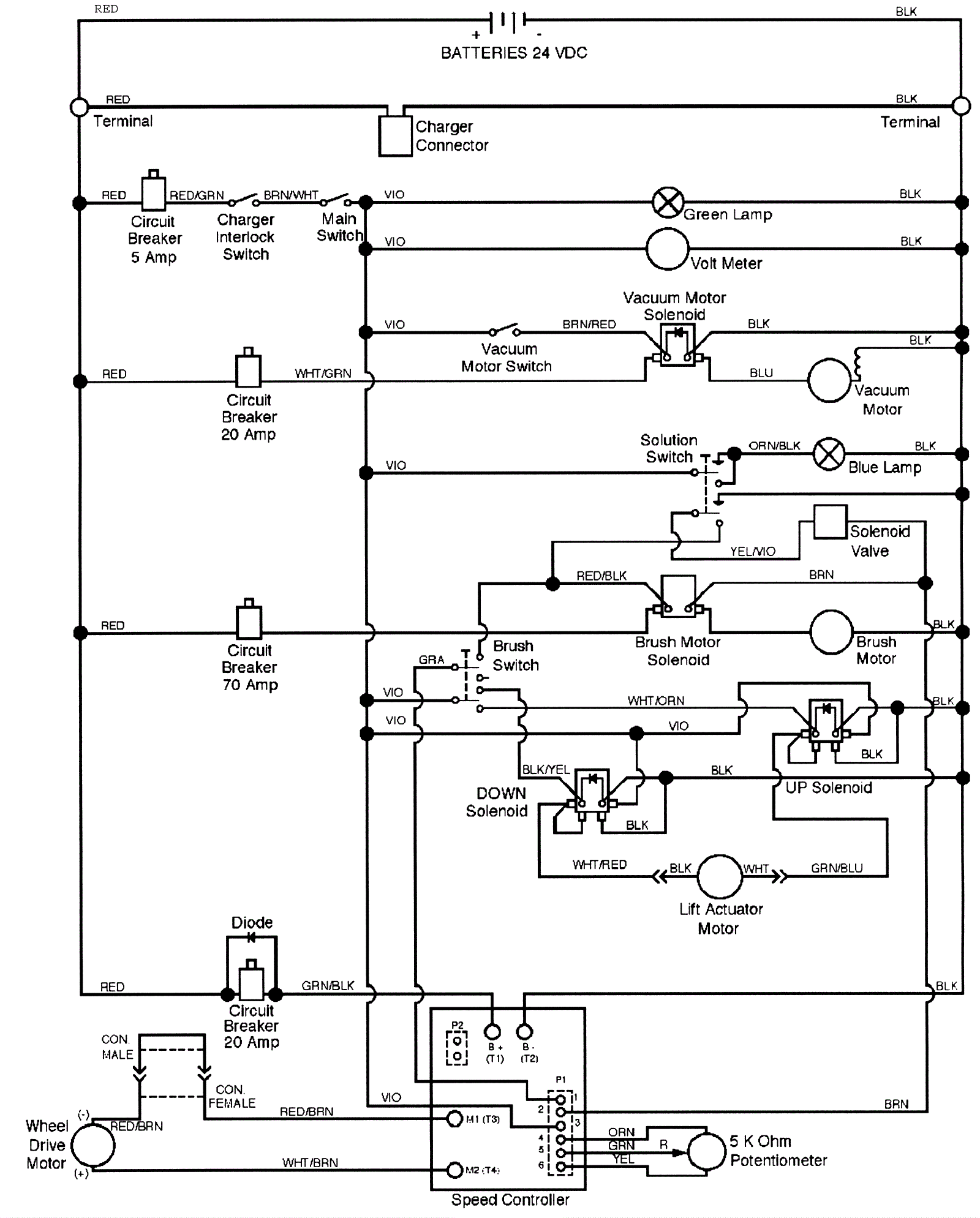

BA600 Wiring Diagram - 1

#PartDescriptionPriceReqNotesAvailability
1 172-4875 Plastic hand tool $294.28 1 usually ships 16-41 days
2 172-0224 Battery cable $65.21 1 usually ships 1-5 days
3 172-4865 24 Inch red positive battery cable (OBSOLETE) $87.89 1 usually ships 16-41 days
4 172-0225 Battery cable $47.67 1 usually ships 1-5 days
5 172-0504 Blue light (OBSOLETE) $7.70 1 usually ships 16-41 days
6 172-0349 Brush motor $1,760.00 1 usually ships 1-5 days
7 172-0082 Solenoid contactor (OBSOLETE) $83.82 1 usually ships 16-41 days
8 172-0219 Rocker switch $67.20 1 usually ships 16-41 days
9 162-5045 175amp charger plug with pins (red) SB175 $16.09 1 ships same day
10 172-0235 Switch assembly (OBSOLETE) $179.06 1 usually ships 16-41 days
11 172-0228 5amp circuit breaker (OBSOLETE) $79.20 1 usually ships 16-41 days
12 172-0227 20amp circuit breaker (OBSOLETE) $69.96 1 usually ships 16-41 days
13 991-1633 70amp circuit breaker $57.60 1 usually ships 3-19 days
14 172-9847 Male connector $13.40 1 usually ships 16-41 days
15 172-9902 Female connector $13.40 1 usually ships 1-5 days
16 172-0236 Diode rectifier assembly $31.83 1 ships same day
17 172-9844 Down solenoid $199.10 1 usually ships 1-5 days
18 172-0220 Green light (OBSOLETE) $17.90 1 usually ships 16-41 days
19 172-8921 Actuator $537.16 1 usually ships 16-41 days
20 172-6004 Toggle switch $44.79 1 usually ships 16-41 days
21 172-2039 5K potentiometer $61.41 1 ships same day
22 172-2157 Rocker switch DPDT $80.86 1 usually ships 16-41 days
23 172-2094 Solenoid valve assembly $549.82 1 usually ships 16-41 days
24 172-8085 Speed control kit (OBSOLETE) $737.00 1 usually ships 16-41 days
25 172-0345 Terminal stud $11.99 2 usually ships 16-41 days
26 172-0120 24V 2 stage vacuum motor dual ball tangential (OBSOLETE) $261.59 1 (OEM) usually ships 16-41 days
26.5 991-1203 24V 2 stage vacuum motor tangential $91.58 1 (NON-OEM) ships same day
27 172-2301 Snap switch $46.22 1 usually ships 16-41 days
28 172-2302 Battery meter $90.59 1 usually ships 16-41 days
29 172-9899 24V drive motor (OBSOLETE) $1,621.62 1 usually ships 1-5 days
