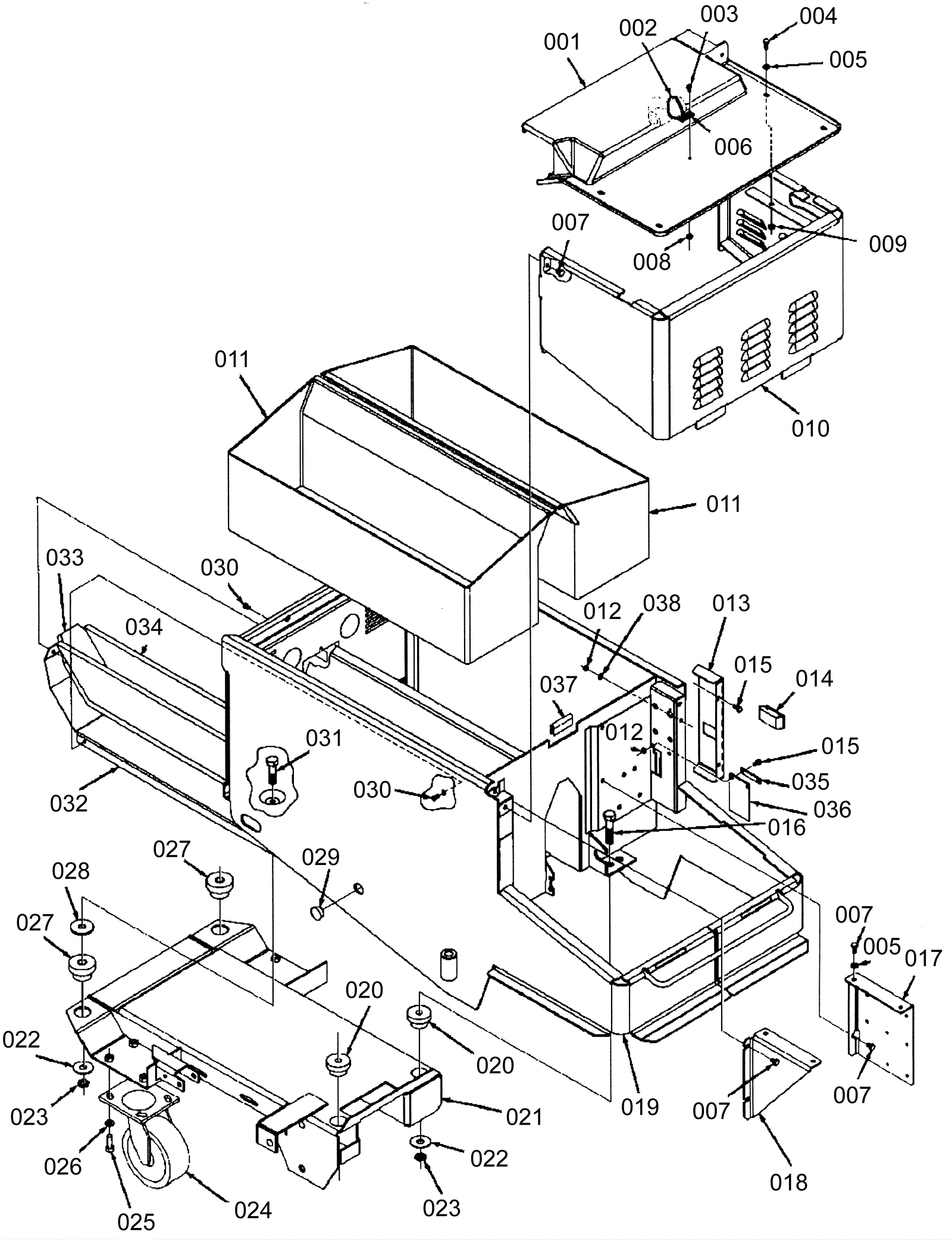

BA600 Chassis Assembly Before SN1079916

#PartDescriptionPriceReqNotesAvailability
001a 172-4873 Cover (OBSOLETE) $290.65 1 usually ships 1-5 days
001b 172-9858 Cover $249.17 1 usually ships 1-5 days
002 997-2101 6 inch cable tie $0.99 1 ships same day
003 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 1 ships same day
004 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
005 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
006 172-9862 Anchor mount tie $11.75 1 usually ships 1-5 days
007 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 6 ships same day
008 181-0079 Screw 5/16-18 x 5/8 socket set lock $5.26 1 usually ships 16-41 days
009 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
010 172-9857 Front panel weldment (OBSOLETE) $211.46 1 usually ships 1-5 days
011 172-9855 Battery tray (OBSOLETE) $45.14 2 usually ships 16-41 days
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
013 172-0028 Door (OBSOLETE) $80.42 1 usually ships 1-5 days
014 172-0027 Slide latch (OBSOLETE) $22.88 1 usually ships 1-5 days
015 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
016 999-0691 Bolt 1/2-13 x 2 1/4 hex head grade 5 $1.50 2 ships same day
017 N/A Not available Call for price 1 Not available(vac module bracket) usually ships 3-26 days
018 172-9867 Bracket (OBSOLETE) $21.38 1 usually ships 1-5 days
019 172-9854 Chassis weldment (OBSOLETE) $1,020.49 1 usually ships 1-5 days
020 N/A Not available Call for price 2 Not available(isolation mt.) usually ships 3-26 days
021 172-9851 Base weldment (OBSOLETE) $264.92 1 usually ships 1-5 days
022 272-1539 Washer .53 x 1 1/2 x .07 plated $11.99 4 usually ships 1-5 days
023 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 4 ships same day
024a 172-8073 Caster wheel $140.73 2 usually ships 16-41 days
024b 172-8078 Wheel (OBSOLETE) $171.16 usually ships 1-5 days
025 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 8 ships same day
026 999-0120 Washer 3/8 SAE flat $0.99 8 ships same day
027 172-9852 Isolator mount $49.86 2 usually ships 1-5 days
028 272-1540 Washer $10.52 2 usually ships 1-5 days
029 N/A Not available Call for price 1 Not available(plug button .875) usually ships 3-26 days
030 172-4624 Screw 10-24 x 1/2 flat head phillips thread forming $10.56 5 usually ships 1-5 days
031 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 2 ships same day
032 172-9856 Baffle plate (OBSOLETE) $38.02 1 usually ships 1-5 days
033 172-9860 Accoustical foam (OBSOLETE) $5.94 1 usually ships 1-5 days
034 172-9861 Accoustical foam (OBSOLETE) $15.57 2 usually ships 1-5 days
035 N/A Not available Call for price 1 (Strap) usually ships 3-26 days
036 N/A Not available Call for price 1 (Flap) usually ships 3-26 days
037 172-0201 Gasket (sold by the foot) $9.35 2 usually ships 1-5 days
