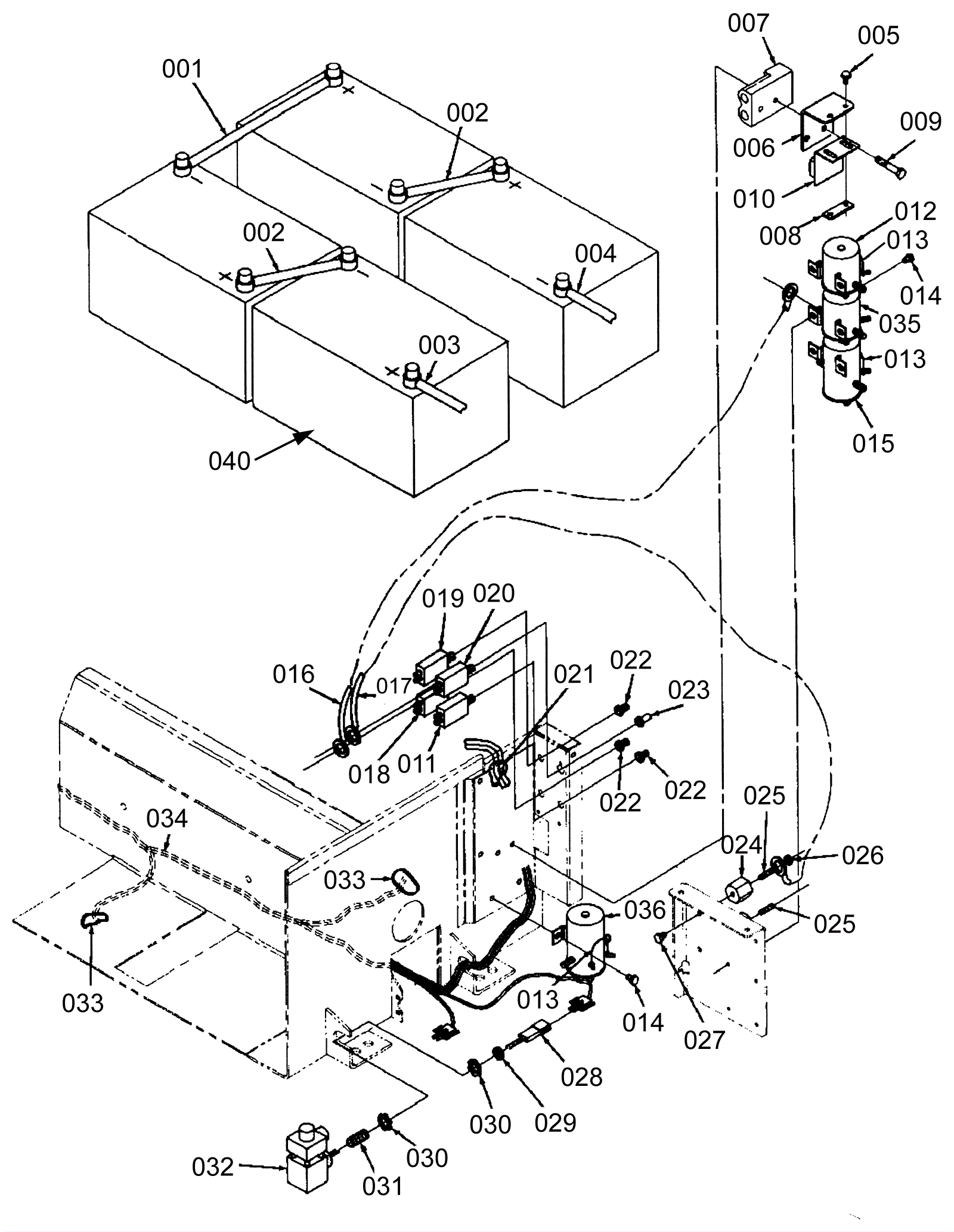

BA600 Chassis Electrical Assembly - 1

#PartDescriptionPriceReqNotesAvailability
001 172-0221 Battery cable assembly - clamp type $26.52 1 usually ships 16-41 days
002 172-0222 Battery cable assembly - clamp type (OBSOLETE) $10.52 2 usually ships 16-41 days
003a 172-0225 Battery cable $47.67 1 usually ships 1-5 days
003b 172-4865 24 Inch red positive battery cable (OBSOLETE) $87.89 1 usually ships 16-41 days
004a 172-0224 Battery cable $65.21 1 usually ships 1-5 days
004b 172-4866 Cable assembly (OBSOLETE) $20.32 1 usually ships 1-5 days
005 172-0561 Bolt 10-24 x 3/8 hex lock $13.40 2 usually ships 1-5 days
006 172-0234 Switch bracket (OBSOLETE) $11.00 1 usually ships 1-5 days
007 162-5045 175amp charger plug with pins (red) SB175 $16.09 1 ships same day
008 172-2158 Nut plate $17.90 2 usually ships 1-5 days
009 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 2 ships same day
010 172-0235 Switch assembly (OBSOLETE) $179.06 1 usually ships 16-41 days
011 172-0227 20amp circuit breaker (OBSOLETE) $69.96 1 usually ships 16-41 days
012 172-0082 Solenoid contactor (OBSOLETE) $83.82 1 usually ships 16-41 days
013 172-0236 Diode rectifier assembly $31.83 3 ships same day
014 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted $0.99 8 ships same day
015 172-9844 Down solenoid $199.10 1 usually ships 1-5 days
016 172-9845 Cable (OBSOLETE) $17.23 1 usually ships 1-5 days
017 N/A Not available Call for price 1 usually ships 3-26 days
018 172-0228 5amp circuit breaker (OBSOLETE) $79.20 1 usually ships 16-41 days
019 172-0227 20amp circuit breaker (OBSOLETE) $69.96 1 usually ships 16-41 days
020 991-1633 70amp circuit breaker $57.60 1 usually ships 3-19 days
021 997-2101 6 inch cable tie $0.99 20 ft ships same day
022 172-0231 Reset button boot $48.32 3 usually ships 16-41 days
023 172-0232 Clear boot cap $33.96 1 usually ships 16-41 days
024 172-0103 Electrical mount $13.40 2 usually ships 1-5 days
025 172-0345 Terminal stud $11.99 2 usually ships 16-41 days
026a 999-0181 Nut 1/4-20 hex jam plain finish $0.99 2 ships same day
026b 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
027 272-1538 Bolt 1/4-20 X 3/8 hex head lock $11.99 2 usually ships 1-5 days
028 172-9847 Male connector $13.40 1 usually ships 16-41 days
029 172-9848 Insulating bushing $11.99 1 usually ships 1-5 days
030 172-4536 Nut 1/2-14 conduit lock $11.99 2 usually ships 16-41 days
031 172-9774 Conduit nipple $34.23 1 usually ships 1-5 days
032 172-2094 Solenoid valve assembly $549.82 1 usually ships 16-41 days
033 172-2298 Push mount tie $10.52 4 usually ships 1-5 days
034 N/A Not available Call for price 1 usually ships 3-26 days
035 172-0082 Solenoid contactor (OBSOLETE) $83.82 1 usually ships 16-41 days
036 172-9844 Down solenoid $199.10 1 usually ships 1-5 days
N/S 172-0223 Battery cable boot $9.02 8 ships same day
040a 162-0003 6V 225Ah wet battery (SNSR) $269.50 4 ships same day
040b 162-0005 6V 305Ah wet battery (SNSR) $412.50 4 ships same day
040a 162-0043 6V 224Ah AGM battery (Group GC2) $456.50 4 ships same day
040b 162-0046 6V 335Ah AGM battery (Group J305) $654.50 4 ships same day
