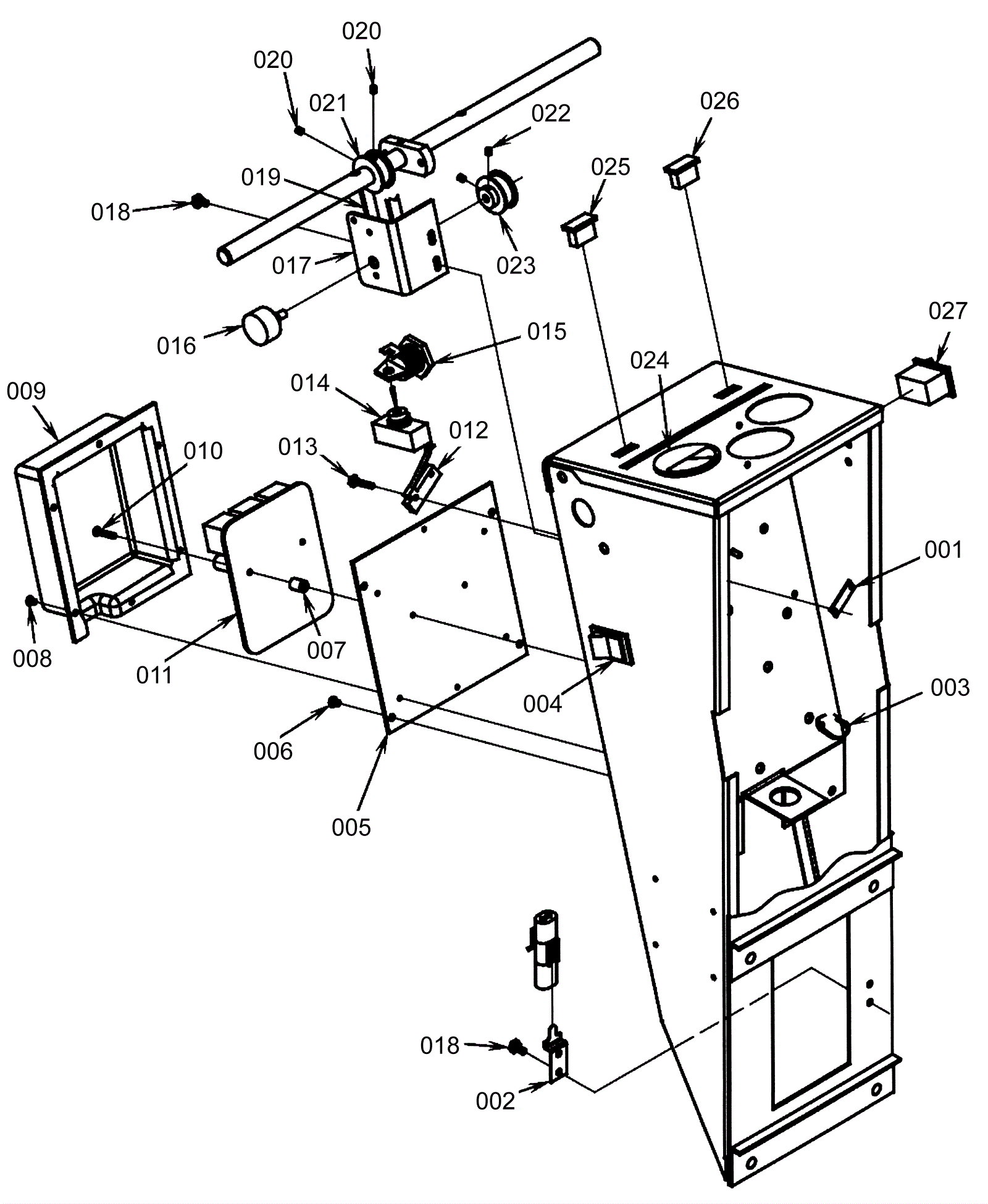

BA600 Handle Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
001 172-6084 Nut plate $22.68 1 usually ships 16-41 days
002 N/A Not available Call for price 1 Not available(bracket) usually ships 3-26 days
003 172-2298 Push mount tie $10.52 4 usually ships 1-5 days
004 172-2157 Rocker switch DPDT $80.86 1 usually ships 16-41 days
005 N/A Not available Call for price 1 (Heat sink) usually ships 3-26 days
006 172-0565 Bolt 10-24 x 3/8 $11.75 4 usually ships 1-5 days
007 172-2159 Spacer $42.49 2 usually ships 1-5 days
008 N/A Not available Call for price 2 (Bolt) usually ships 3-26 days
009 N/A Not available Call for price 1 (Controller cover) usually ships 3-26 days
010 999-0080 Screw 8-32 x 7/8 round head slotted zinc plated $0.99 2 ships same day
011 172-8085 Speed control kit (OBSOLETE) $737.00 1 usually ships 16-41 days
012 172-2301 Snap switch $46.22 1 usually ships 16-41 days
013 999-1108 Bolt 6-32 x 3/4 hex head stainless steel $0.99 2 ships same day
014 172-6004 Toggle switch $44.79 1 usually ships 16-41 days
015a 172-2161 Key switch with key and bracket $209.34 1 usually ships 16-41 days
015b 172-0451 Replacement key $37.39 1 usually ships 16-41 days
016 172-2039 5K potentiometer $61.41 1 ships same day
017 172-9882 Bracket (OBSOLETE) $181.06 1 usually ships 1-5 days
018 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc $0.99 4 ships same day
019 172-9883 Belt $31.64 1 usually ships 1-5 days
020 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish $0.99 2 ships same day
021 172-8051 Pulley $124.82 1 usually ships 1-5 days
022 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 2 ships same day
023 172-9884 Pulley $56.35 1 usually ships 1-5 days
024a 172-2302 Battery meter $90.59 1 usually ships 16-41 days
024b 172-2303 Rubber boot $13.40 2 usually ships 1-5 days
025 172-0504 Blue light (OBSOLETE) $7.70 1 usually ships 16-41 days
026 172-0220 Green light (OBSOLETE) $17.90 1 usually ships 16-41 days
027 172-0219 Rocker switch $67.20 1 usually ships 16-41 days
