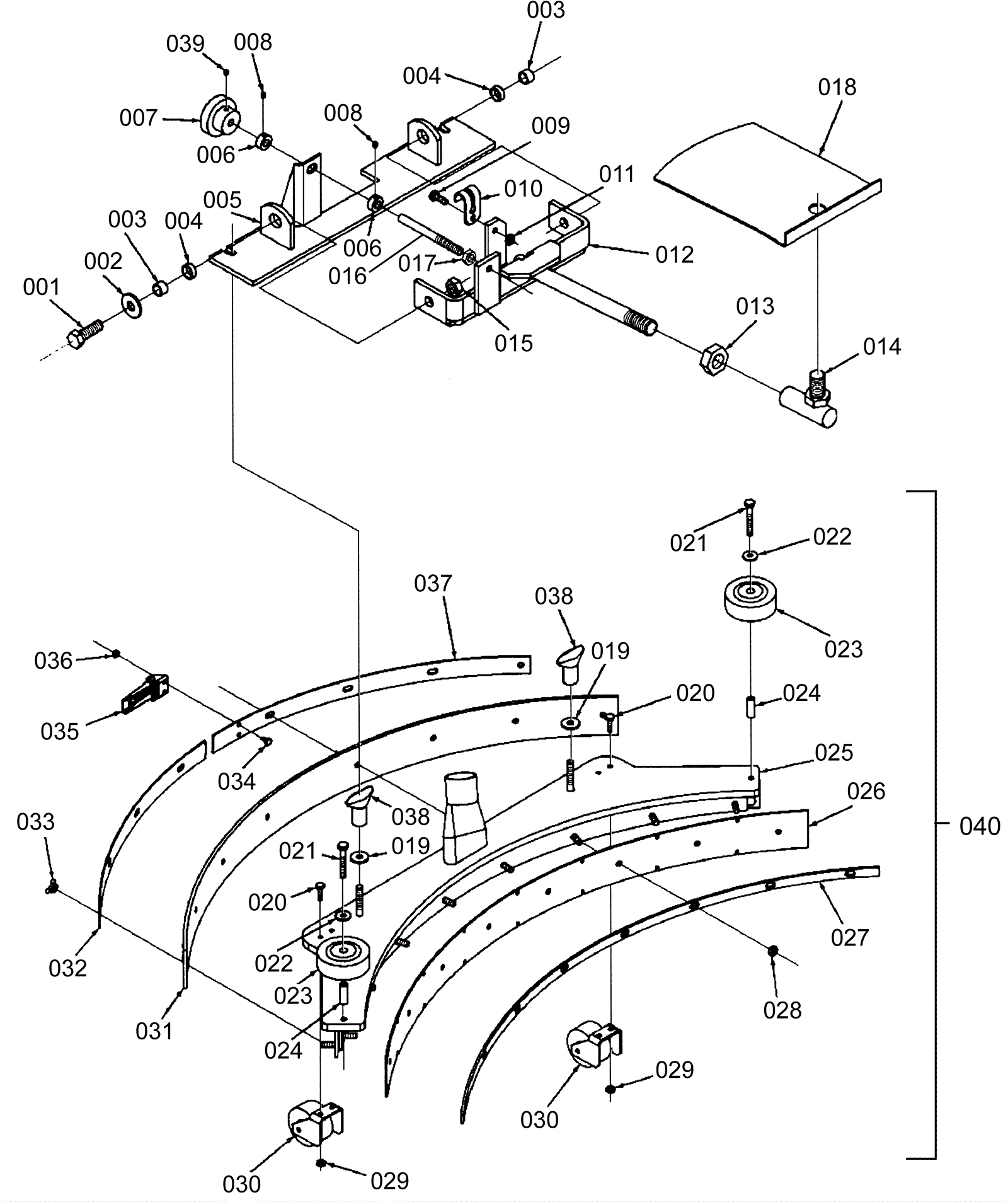

BA600 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0200 Bolt 1/2-13 x 1 1/4 hex head $2.68 2 ships same day
002 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
003 172-0079 Sleeve bearing (OBSOLETE) $15.07 2 usually ships 16-41 days
004 172-0072 Bushing $43.41 2 usually ships 16-41 days
005 172-9892 Mount $448.80 1 usually ships 16-41 days
006 172-0071 Collar $9.02 2 usually ships 16-41 days
007 172-0078 Knob $11.99 1 usually ships 16-41 days
008 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish $0.99 2 ships same day
009 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
010 172-0588 Half clevis $30.47 1 usually ships 16-41 days
011 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
012 172-9893 Mount (OBSOLETE) $176.42 1 usually ships 16-41 days
013 272-1464 Nut 3/4-16 hex nylon lock $10.56 1 usually ships 16-41 days
014 172-8065 Ball joint $46.92 1 usually ships 16-41 days
015 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
016 172-0076 Adjustment rod $33.24 1 usually ships 16-41 days
017 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
018 172-9894 Stabilizer plate (OBSOLETE) $64.15 1 usually ships 1-5 days
019 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
020 172-2336 Screw 10-24 x 3/4 hex washer head stainless steel $11.99 4 usually ships 16-41 days
021 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
022 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
023 172-0274 Guide wheel $16.07 2 usually ships 16-41 days
024 172-0095 Bushing $35.37 2 usually ships 16-41 days
026 994-0061 Squeegee blade 31 inch neoprene front (black) $7.34 1 ships same day
027 172-0497 Front strap $64.64 1 usually ships 1-5 days
028 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 8 ships same day
029 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
030 172-2335 Roller assembly (OBSOLETE) $83.82 2 usually ships 16-41 days
031 172-0622 Squeegee blade 32 7/8 inch rear (tan) (OBSOLETE) $31.83 1 usually ships 16-41 days
032 172-0498 Right rear strap (OBSOLETE) $31.64 1 usually ships 16-41 days
033 999-0603 Nut 1/4-20 wing stainless steel $7.33 2 ships same day
034 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
035 172-0094 Latch $43.41 1 ships same day
036 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
037 272-6638 Left rear strap (OBSOLETE) $25.36 1 usually ships 16-41 days
038 172-4099 Nut 5/16-18 thumb $11.26 2 ships same day
039 999-1121 Screw 10-24 x 3/8 set cup point socket black oxide $0.99 1 ships same day
040 172-4189 Squeegee assembly (obsolete) $850.19 1 (includes 019-039) usually ships 1-5 days
N/S 172-1854 Squeegee assembly straight (OBSOLETE) $471.64 1 (Japan models) usually ships 1-5 days
