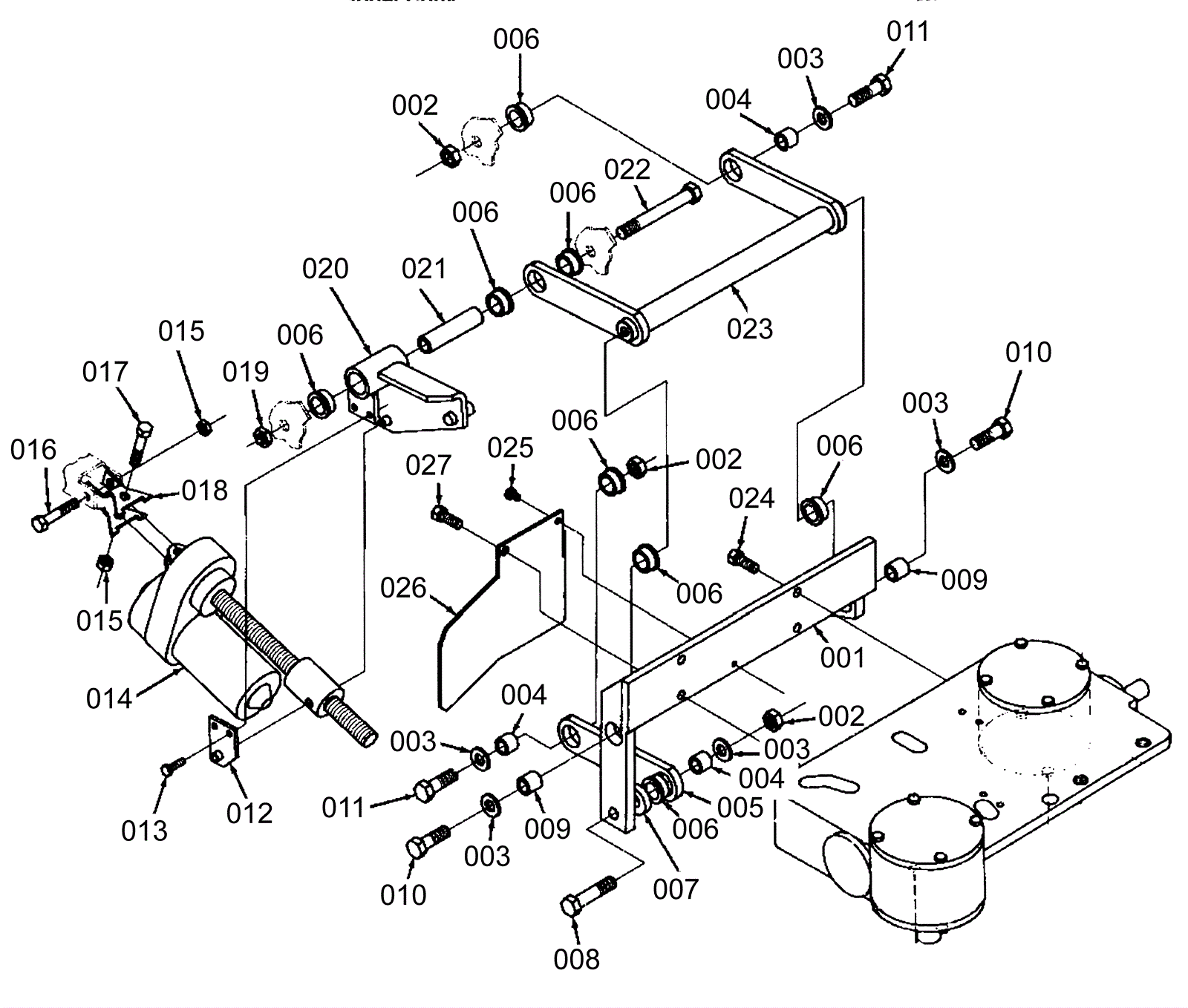

BA600 Brush Drive Assembly - Brush Lift

#PartDescriptionPriceReqNotesAvailability
001 172-9831 Mount (OBSOLETE) $117.61 1 usually ships 1-5 days
002 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 3 ships same day
003 999-0114 Washer 1/2 SAE flat $0.99 5 ships same day
004 172-9832 Bushing $20.46 3 usually ships 1-5 days
005 172-9833 Arm (OBSOLETE) $90.29 1 usually ships 1-5 days
006 172-9388 Flanged bearing $13.40 8 usually ships 16-41 days
007 172-9470 Spacer (OBSOLETE) $11.17 1 usually ships 1-5 days
008 999-0691 Bolt 1/2-13 x 2 1/4 hex head grade 5 $1.50 1 ships same day
009 172-9468 Bushing $31.90 2 usually ships 1-5 days
010 272-1536 Bolt 1/2-13 X 1 1/2 lock $11.99 2 usually ships 1-5 days
011 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 2 ships same day
012 172-9466 Arm (OBSOLETE) $77.22 1 usually ships 1-5 days
013 272-1465 Screw 1/4-20 X 5/8 hex head lock $11.99 2 usually ships 1-5 days
014a 172-8921 Actuator $537.16 1 usually ships 16-41 days
014b N/A Not available Call for price 1 Carbon brush kit usually ships 3-26 days
014c N/A Not available Call for price 2 Replacement limit switch usually ships 3-26 days
014d 172-8922 Plastic drive nut $19.45 1 usually ships 16-41 days
015 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
016 999-0107 Bolt 3/8-16 x 2 hex head grade 5 zinc plated $1.19 1 ships same day
017 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
018 172-2364 Gear motor yoke (OBSOLETE) $82.48 1 usually ships 1-5 days
019 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
020 172-9834 Lifting arm (OBSOLETE) $156.82 1 usually ships 1-5 days
021 172-9465 Bushing (OBSOLETE) $81.38 1 usually ships 1-5 days
022 272-1537 Deck kit BR 600S (OBSOLETE) $3,376.78 1 usually ships 1-5 days
023 172-9835 Arm (OBSOLETE) $91.48 1 usually ships 1-5 days
024 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 3 ships same day
025 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 1 ships same day
026 172-9836 Splash plate (OBSOLETE) $16.63 1 usually ships 1-5 days
027 172-4373 Screw 3/8-16 x 1.25 $11.99 1 usually ships 1-5 days
