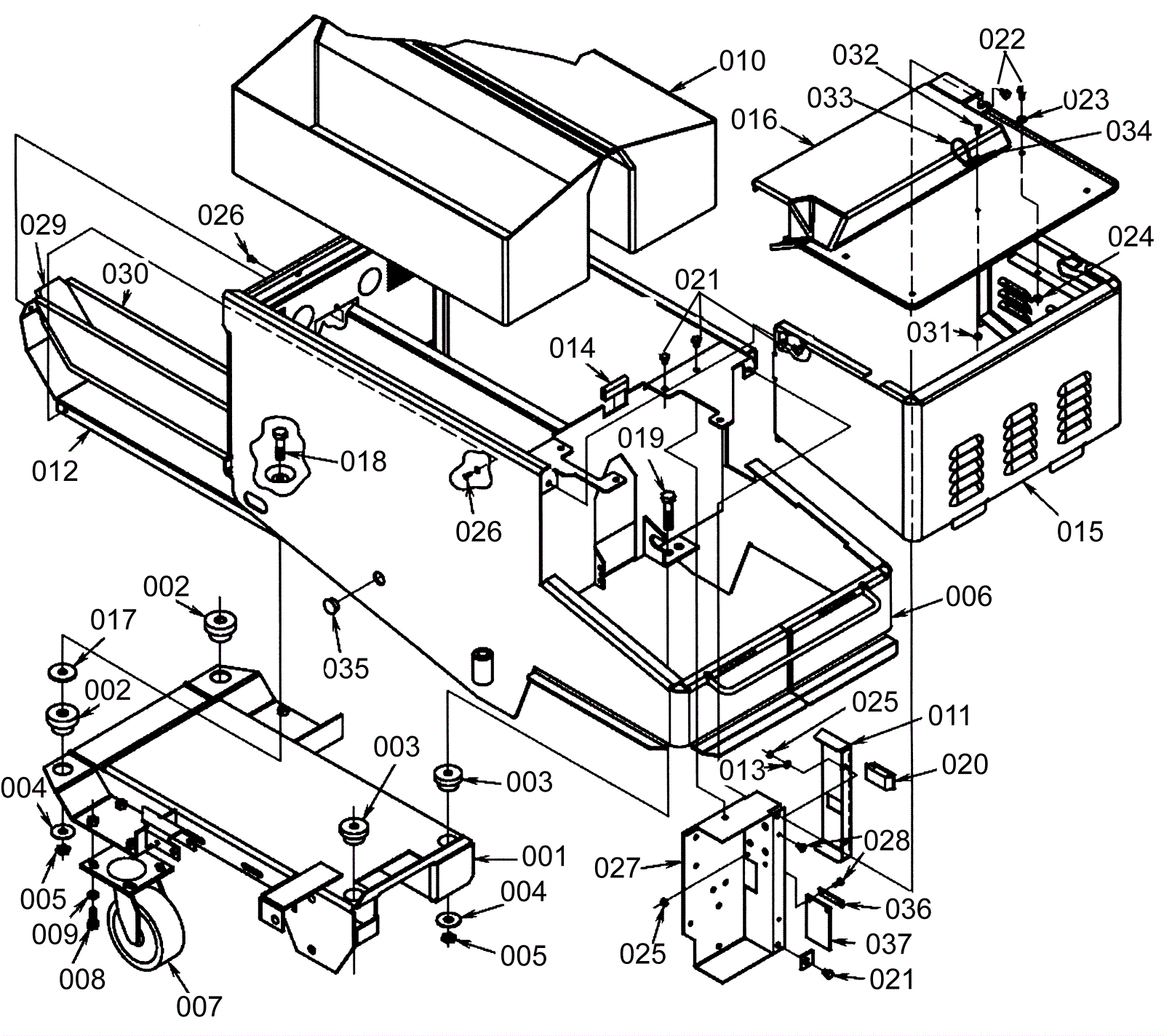

BA600 Chassis Assembly After SN1079915

#PartDescriptionPriceReqNotesAvailability
001 172-9851 Base weldment (OBSOLETE) $264.92 1 usually ships 1-5 days
002 172-9852 Isolator mount $49.86 2 usually ships 1-5 days
003 N/A Not available Call for price 2 usually ships 3-26 days
004 272-1539 Washer .53 x 1 1/2 x .07 plated $11.99 4 usually ships 1-5 days
005 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 4 ships same day
006 172-9854 Chassis weldment (OBSOLETE) $1,020.49 1 usually ships 1-5 days
007a 172-8070 Shroud cover (OBSOLETE) $76.78 2 usually ships 1-5 days
007b 172-8078 Wheel (OBSOLETE) $171.16 usually ships 1-5 days
008 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 8 ships same day
009 999-0120 Washer 3/8 SAE flat $0.99 8 ships same day
010 172-9855 Battery tray (OBSOLETE) $45.14 2 usually ships 16-41 days
011 172-0028 Door (OBSOLETE) $80.42 1 usually ships 1-5 days
012 172-9856 Baffle plate (OBSOLETE) $38.02 1 usually ships 1-5 days
013 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
014 172-0201 Gasket (sold by the foot) $9.35 2 usually ships 1-5 days
015 172-9857 Front panel weldment (OBSOLETE) $211.46 1 usually ships 1-5 days
016 172-9858 Cover $249.17 1 usually ships 1-5 days
017 272-1540 Washer $10.52 2 usually ships 1-5 days
018 999-0261 Bolt 1/2-13 x 2 hex head grade 5 $1.58 2 ships same day
019 999-0691 Bolt 1/2-13 x 2 1/4 hex head grade 5 $1.50 2 ships same day
020 173-0027 Carbon brush (pkg of 2) $46.20 1 usually ships 7-19 days
021 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 8 ships same day
022 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
023 999-0123 Washer 1/4 SAE flat zinc plated $0.99 9 ships same day
024 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
025 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
026 172-4624 Screw 10-24 x 1/2 flat head phillips thread forming $10.56 5 usually ships 1-5 days
027 172-9859 Electrical panel (OBSOLETE) $18.29 1 usually ships 1-5 days
028 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
029 172-9860 Accoustical foam (OBSOLETE) $5.94 1 usually ships 1-5 days
030 172-9861 Accoustical foam (OBSOLETE) $15.57 2 usually ships 1-5 days
031 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
032 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 1 ships same day
033 997-2101 6 inch cable tie $0.99 1 ships same day
034 172-9862 Anchor mount tie $11.75 1 usually ships 1-5 days
035 N/A Not available Call for price 1 usually ships 3-26 days
036 N/A Not available Call for price 1 (Strap) usually ships 3-26 days
037 N/A Not available Call for price 1 (Flap) usually ships 3-26 days
N/S 172-9864 Battery spacer (OBSOLETE) $6.53 1 usually ships 1-5 days
N/S 172-9865 Battery spacer (OBSOLETE) $6.53 1 usually ships 1-5 days
