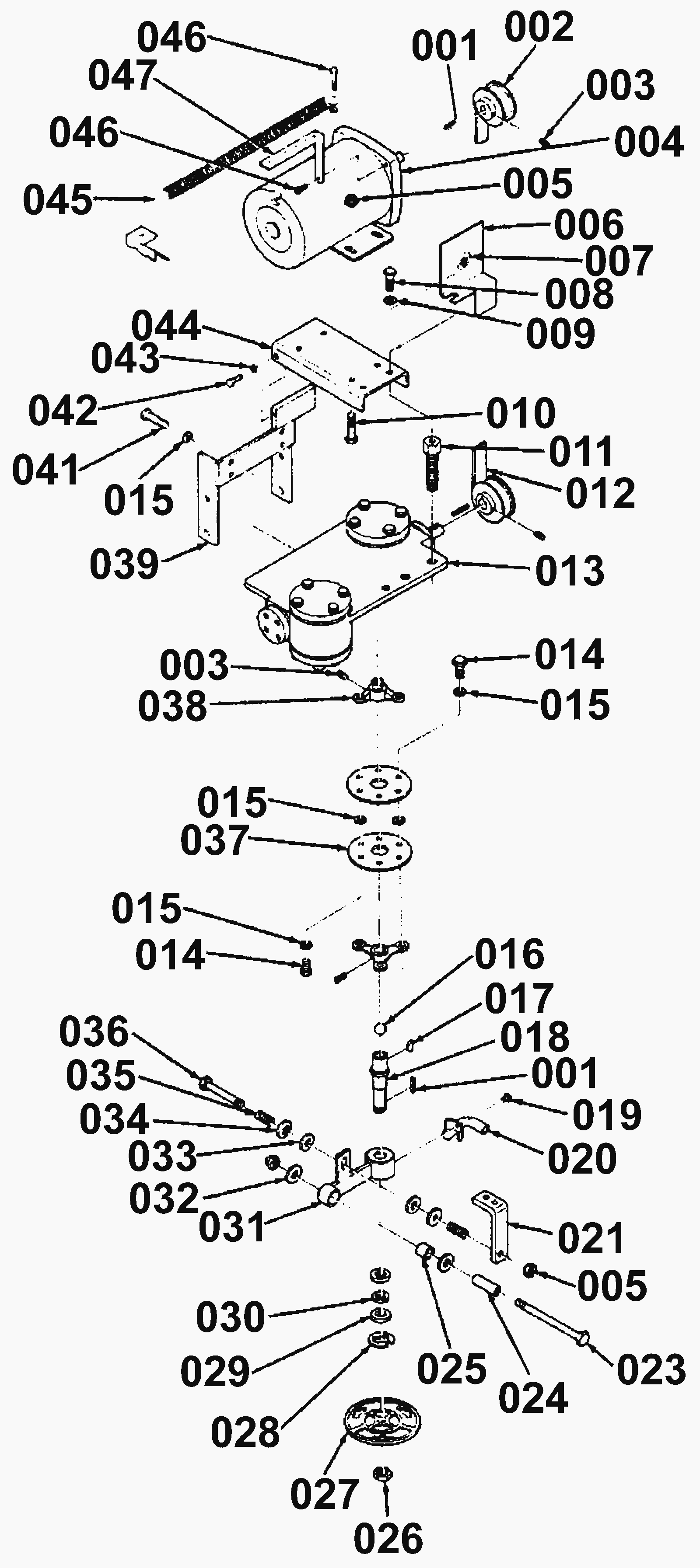

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-0348
|
Square keyway |
3 |
|
|
002 |
172-0140
|
Poly-V sheave (OBSOLETE) |
2 |
|
|
003 |
N/A
|
Not available |
6 |
Screw 5/16-24x3/8 |
|
004a |
172-0349
|
Brush motor (OBSOLETE) |
1 |
|
|
004b |
172-0164
|
Carbon brush set (set of 4) |
1 |
(4 brushes) |
|
005 |
999-0170
|
Nut 3/8-16 hex plain finish |
6 |
|
|
006 |
172-8401
|
Belt guard (OBSOLETE) |
1 |
|
|
007 |
172-5044
|
Hands clear decal |
1 |
|
|
008 |
N/A
|
Not available |
2 |
Screw 5/16-18x1/2 |
|
009 |
N/A
|
Not available |
2 |
Washer 5/16 lock |
|
010 |
N/A
|
Not available |
4 |
Screw 3/8-16x1 1/2 |
|
011 |
172-0160
|
Adjustment screw (OBSOLETE) |
2 |
|
|
012 |
172-4049
|
Poly-v belt (OBSOLETE) |
1 |
|
|
013a |
172-8400
|
Gear case assembly (OBSOLETE) |
1 |
|
|
013b |
172-8402
|
Gear case assembly (OBSOLETE) |
1 |
|
|
013c |
172-8403
|
Gear case assembly (OBSOLETE) |
1 |
|
|
014 |
172-4373
|
Screw 3/8-16 x 1.25 |
12 |
|
|
015 |
N/A
|
Not available |
28 |
Washer 3/8 |
|
016 |
172-0165
|
Ball (OBSOLETE) |
2 |
|
|
017 |
172-0413
|
Woodruff key (OBSOLETE) |
2 |
|
|
018 |
172-0420
|
Brush holder shaft (OBSOLETE) |
2 |
|
|
019 |
172-0157
|
Fitting (OBSOLETE) |
2 |
|
|
020 |
172-0166
|
Solution pipe left side (OBSOLETE) |
1 |
|
|
021 |
172-0149
|
Bracket (OBSOLETE) |
2 |
|
|
023a |
172-4378
|
Screw 1/2-13 x 7.00 hex |
1 |
|
|
023b |
N/A
|
Not available |
1 |
Nut 1/2-13 lock |
|
024 |
172-0159
|
Bushing |
1 |
|
|
025 |
172-0246
|
Rubber bushing (OBSOLETE) |
1 |
|
|
026 |
999-0381
|
Nut 5/8-18 flex lock cadmium plated |
2 |
|
|
027 |
172-0414
|
Brush holder casting (OBSOLETE) |
2 |
|
|
028 |
172-0417
|
Retaining ring |
2 |
|
|
029 |
172-0249
|
Bottom bearing |
4 |
|
|
030 |
172-0418
|
Bushing (OBSOLETE) |
2 |
|
|
031a |
172-8404
|
Arm weldment (OBSOLETE) |
2 |
|
|
031b |
172-8405
|
Arm assembly (OBSOLETE) |
2 |
|
|
032 |
N/A
|
Not available |
2 |
Washer 1/2 |
|
033 |
172-0152
|
Thrust bearing |
4 |
|
|
034 |
172-0151
|
Washer flat (OBSOLETE) |
4 |
|
|
035 |
172-0150
|
Spring |
4 |
|
|
036 |
N/A
|
Not available |
2 |
Screw 3/8-16x2 3/4 |
|
037 |
172-0153
|
Flex disc |
4 |
|
|
038 |
172-0412
|
Universal casting (OBSOLETE) |
4 |
|
|
039 |
172-8406
|
Support weldment (OBSOLETE) |
1 |
|
|
041 |
N/A
|
Not available |
4 |
Screw 3/8-16x1 |
|
042 |
N/A
|
Not available |
2 |
Screw 1/4-20x3/4 |
|
043 |
172-0162
|
Bushing |
7 |
|
|
044 |
172-0163
|
Motor mount plate (OBSOLETE) |
1 |
|
|
045 |
172-0161
|
Extension spring (OBSOLETE) |
1 |
|
|
046 |
N/A
|
Not available |
2 |
Screw 1/4-20x1 1/2 |
|
047 |
N/A
|
Not available |
1 |
Bracket |
|
N/S |
996-3186
|
Magnagrit brush |
1 |
|
|
N/S |
N/A
|
Not available |
1 |
|
|
N/S |
996-3203
|
Pad driver |
2 |
|
|
