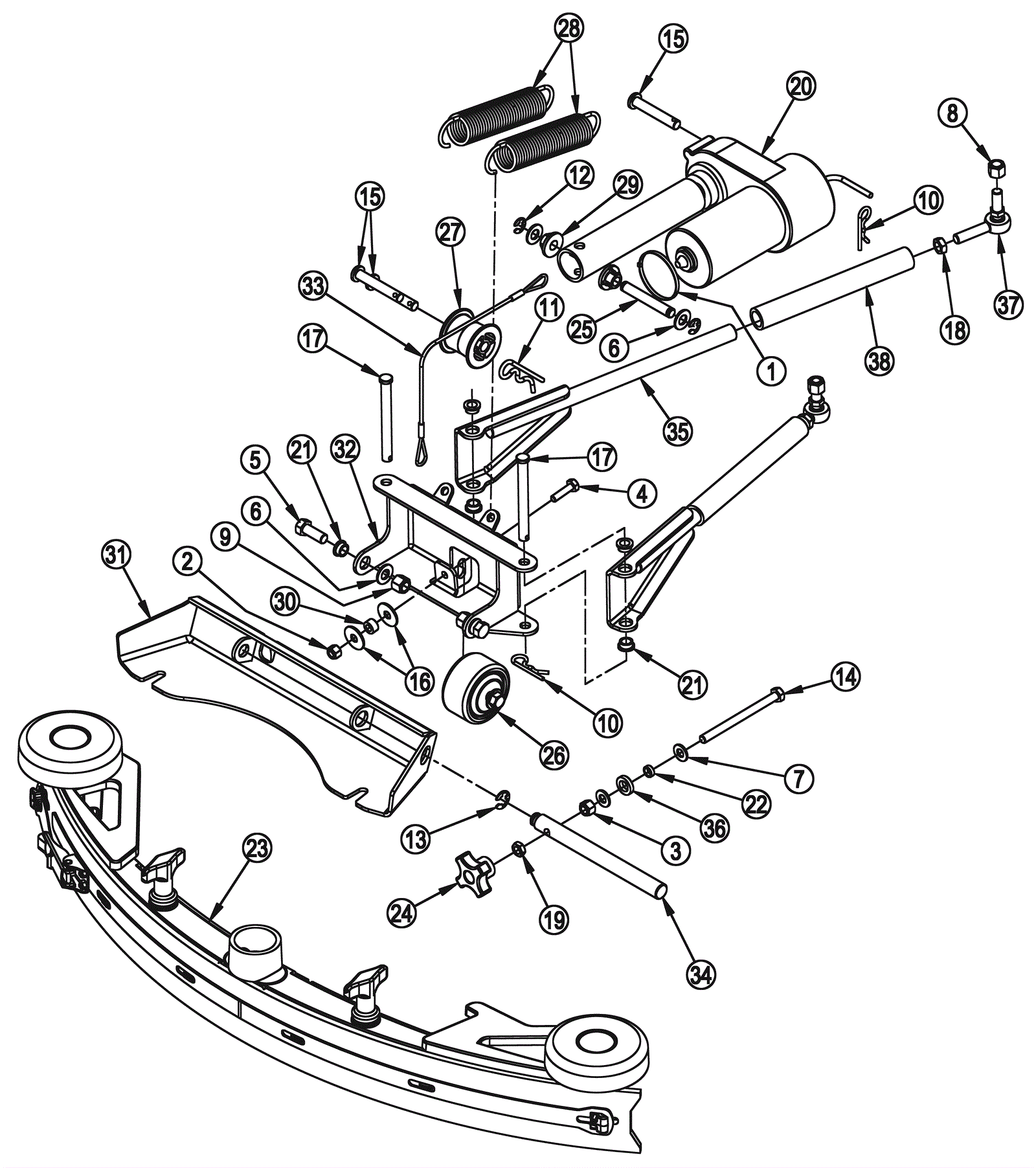

Liberty SC60 Squeegee System Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-0080 Wire tie $12.31 1 usually ships 17-28 days
2 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
3 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
4 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 1 ships same day
5 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
8 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
9 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
10 997-2518 Hitch pin $0.99 3 ships same day
11 172-3483 Cotter pin $12.31 1 usually ships 17-28 days
12 172-4033 3/8 inch retaining ring $10.85 2 usually ships 17-28 days
13 172-0269 Retaining ring $10.85 1 usually ships 17-28 days
14 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 1 ships same day
15 172-3484 Clevis pin $12.31 3 usually ships 1-5 days
16 272-1288 Washer 21/64-1 x 1/16 flat stainless steel $12.31 2 usually ships 1-5 days
17 272-3650 Clevis pin $12.31 2 usually ships 17-28 days
18 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
19 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 ships same day
20 572-9190 24V actuator $256.53 1 usually ships 17-28 days
21 172-8815 Flanged bearing $13.76 6 usually ships 17-28 days
22 172-9202 Bushing $46.00 1 usually ships 17-28 days
23 272-6036 28 inch squeegee assembly $559.04 1 (includes red gum rubber blades) usually ships 17-28 days
24 172-2150 Knob $10.85 1 ships same day
25 172-2365 Pin $46.00 1 usually ships 1-5 days
26 172-9050 Wheel $84.49 1 usually ships 17-28 days
27 172-9093 Roller $15.48 1 usually ships 17-28 days
28 172-9090 Extension spring $65.97 2 usually ships 17-28 days
29 172-9092 Spacer $24.60 2 usually ships 1-5 days
30 172-2032 Spacer $41.54 1 usually ships 1-5 days
31 272-7364 Squeegee mount weldment $100.10 1 usually ships 17-28 days
32 272-6381 Squeegee pivot weldment $108.94 1 usually ships 1-5 days
33 272-3652 Cable assembly $12.31 1 usually ships 17-28 days
34 272-3655 Shaft $48.18 1 usually ships 17-28 days
35 272-3657 Bar weldment $57.16 2 usually ships 17-28 days
36 272-3658 Polyurethane washer $12.31 1 usually ships 17-28 days
37 272-3659 Rod end $29.52 2 usually ships 17-28 days
38 272-3660 Hose $12.31 2 usually ships 17-28 days
