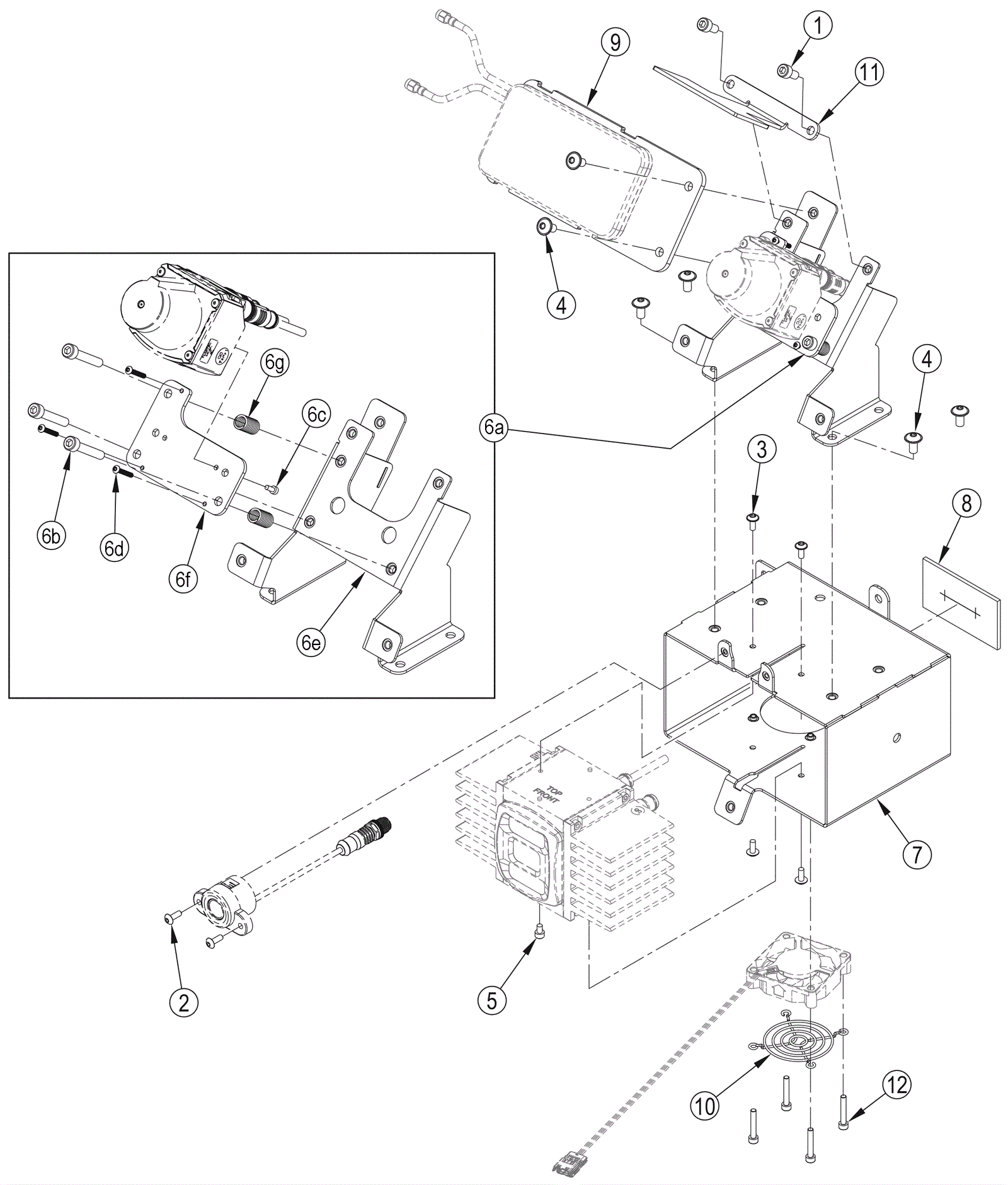

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
172-0768
|
Screw 6 x 12 socket thread to head |
$10.85
|
2 |
|
usually ships 17-28 days |
2 |
472-3627
|
SCR-BUTTON SOC SS M4-0.7X12 |
$9.26
|
2 |
|
usually ships 17-28 days |
3 |
572-9018
|
Screw M4 x 10 threadlock |
$5.50
|
4 |
|
usually ships 17-28 days |
4 |
572-9045
|
Screw M6 x 12 with thread lock |
$5.50
|
6 |
|
usually ships 17-28 days |
5 |
572-9179
|
Screw M4 x 6 |
Call for price
|
1 |
|
usually ships 17-28 days |
6a |
572-9180
|
Slanted lidar assembly |
$109.24
|
1 |
(includes 6b-6g) |
usually ships 17-28 days |
6b |
999-1953
|
Screw M6-1 x 35mm socket stainless steel |
$2.07
|
3 |
|
ships same day |
6c |
572-9181
|
Screw M3 x 8 |
Call for price
|
2 |
|
usually ships 17-28 days |
6d |
N/A
|
Not available |
Call for price
|
3 |
(screw m3 x 20 button head) |
usually ships 3-26 days |
6e |
N/A
|
Not available |
Call for price
|
1 |
(slanted lidar weldment) |
usually ships 3-26 days |
6f |
N/A
|
Not available |
Call for price
|
1 |
(slanted lidar mounting plate) |
usually ships 3-26 days |
6g |
N/A
|
Not available |
Call for price
|
3 |
(compression spring) |
usually ships 3-26 days |
7 |
572-9182
|
Sensor mounting weldment |
$119.37
|
1 |
|
usually ships 17-28 days |
8 |
572-9183
|
Cable seal |
$13.48
|
1 |
|
usually ships 17-28 days |
9 |
N/A
|
Not available |
Call for price
|
1 |
(antenna assembly) (only available with KIT1) |
usually ships 3-26 days |
10 |
572-9184
|
Fan guard |
Call for price
|
1 |
|
usually ships 17-28 days |
11 |
572-9185
|
Interface target bracket |
$12.00
|
1 |
|
usually ships 17-28 days |
12 |
572-9186
|
Screw M4 x 25 |
Call for price
|
4 |
|
usually ships 17-28 days |
KIT1 |
572-9095
|
Cellular antenna kit |
$195.76
|
1 |
(includes 9) |
usually ships 17-28 days |
