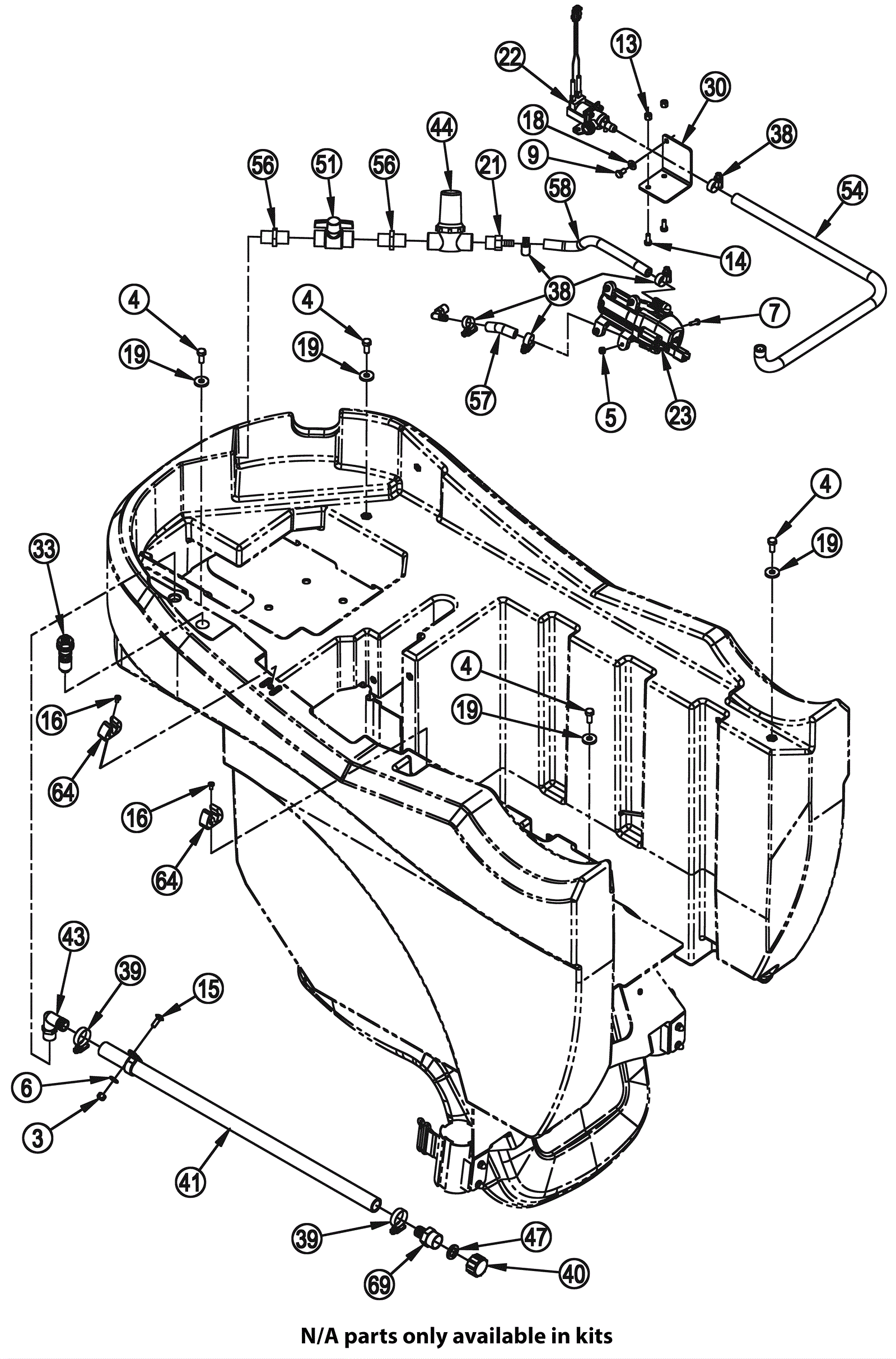

Liberty SC60 Solution Assembly - 2

#PartDescriptionPriceReqNotesAvailability
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
4 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 4 ships same day
5 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 7 ships same day
7 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 4 ships same day
9 272-6383 Screw 1/4-20 x 3/4 hex loc stainless steel $9.26 1 usually ships 1-5 days
13 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 usually ships 12-18 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
15 272-3627 Screw 1/4-20 x 3/4 carriage head stainless steel $12.31 1 usually ships 17-28 days
16 272-6384 Screw 10-24 x .38 pan head phillips loc SS $9.26 3 usually ships 17-28 days
18 372-1011 Washer 1/4 $12.31 1 usually ships 17-28 days
19 172-2067 Washer 11/32 x 1/8 flat $12.31 4 usually ships 17-28 days
21 181-0252 Adapter barb 3/8 x 1/4 $13.76 1 usually ships 1-5 days
22 572-7019 Solenoid valve assembly $152.05 1 usually ships 17-28 days
23a 572-7057 24VDC pump $141.35 1 usually ships 17-28 days
23b 572-7070 3/8 qd elbows pump port kit $10.69 1 usually ships 17-28 days
30 572-9165 Valve bracket Call for price 1 usually ships 17-28 days
33 N/A Not available Call for price 1 (vertical float switch) (only available with KIT1) usually ships 3-26 days
38 172-8494 #6 hose clamp SAE $10.85 5 usually ships 1-5 days
39 997-2005 Hose clamp $2.15 2 ships same day
40 172-0254 Nylon pipe cap $12.31 1 usually ships 17-28 days
41 272-1410 Hose $35.60 1 usually ships 17-28 days
43 272-1448 90 degree elbow barb $12.31 1 usually ships 17-28 days
44 272-2342 Solution filter $21.64 1 ships same day
47 172-0197 Rubber washer $10.85 1 usually ships 17-28 days
51 272-3640 Ball valve $13.76 1 usually ships 17-28 days
54 172-2738 Solution hose $44.58 1 usually ships 17-28 days
56 172-2099 Nipple $10.85 2 usually ships 17-28 days
57 172-9010 Solution drain hose $13.17 1 usually ships 17-28 days
58 172-2737 Solution hose 3/8 x 10 inch $13.76 1 usually ships 1-5 days
64 272-3638 Hose clip $10.85 2 usually ships 1-5 days
69 170-0264 Hose barb $10.85 1 usually ships 17-28 days
KIT1 572-9166 Solution float switch kit $132.68 1 (includes 33) usually ships 17-28 days
