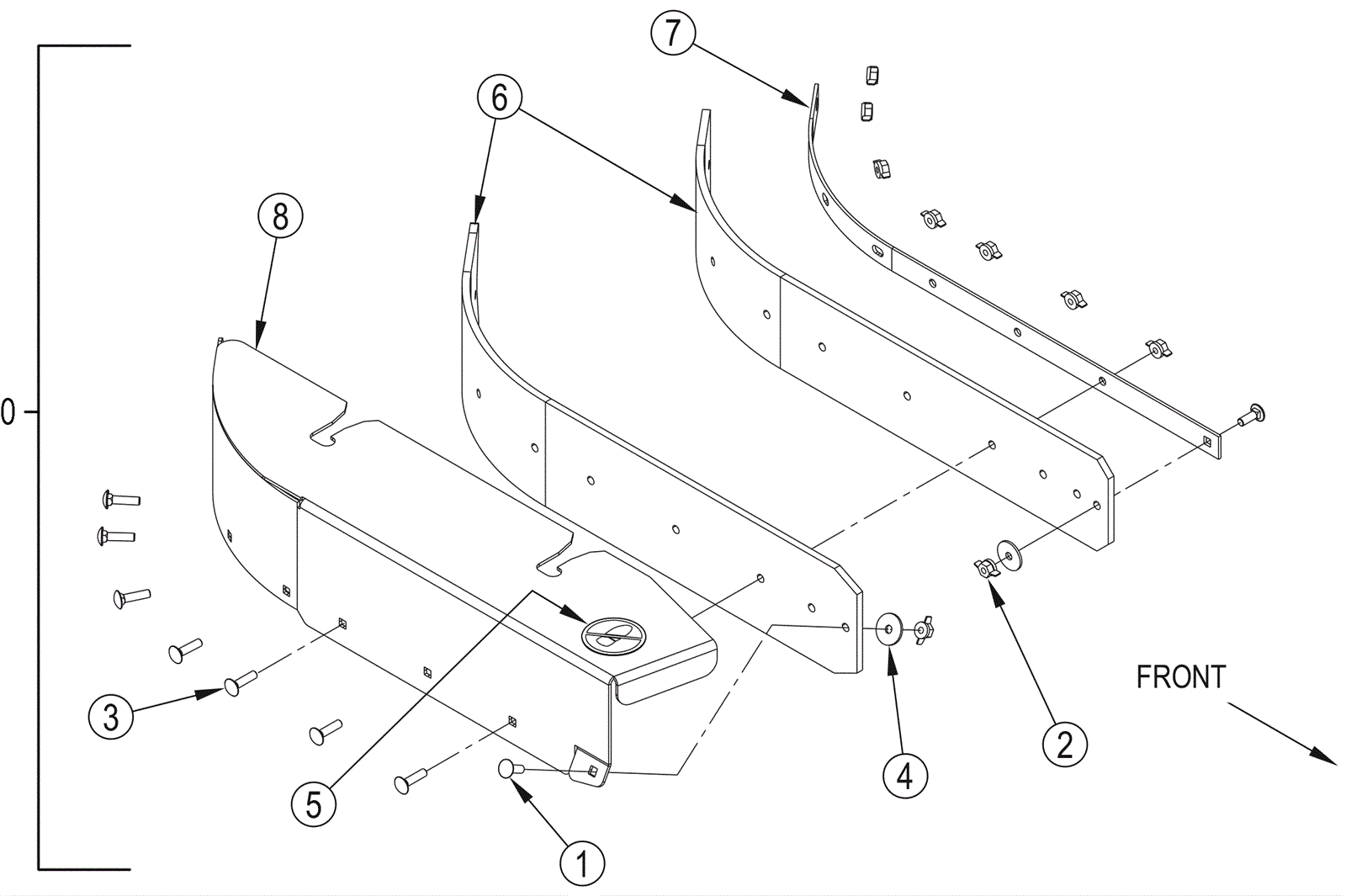

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
572-9148
|
Right hand side blade assembly |
$471.90
|
1 |
(includes 1-6a, 7-8) |
usually ships 13-18 days |
0b |
572-9149
|
Left hand side blade assembly |
$298.81
|
1 |
(includes 1-4, 6a, 7-8) |
ships same day |
1 |
272-3627
|
Screw 1/4-20 x 3/4 carriage head stainless steel |
$12.89
|
2 |
|
usually ships 13-18 days |
2 |
999-1948
|
Nut 1/4-20 wing lock |
$3.76
|
9 |
|
ships same day |
3 |
272-3628
|
Screw 1/4-20 x 1 carriage head stainless steel |
$11.35
|
7 |
|
usually ships 13-18 days |
4 |
172-0548
|
Washer 17/64 x 47/64 flat stainless steel |
$10.85
|
2 |
|
usually ships 13-18 days |
5 |
172-3428
|
No step decal |
$14.41
|
1 |
(right hand) |
usually ships 1-5 days |
6a |
172-4687
|
Skirt blade kit gum rubber (tan) (set of 2) |
$90.01
|
1 |
|
ships same day |
6b |
272-6388
|
Skirt blade kit gum rubber red (pkg of 4) |
$232.99
|
1 |
(optional) |
ships same day |
6c |
272-6387
|
Skirt blade kit polyurethane |
$289.83
|
1 |
(optional) |
usually ships 13-18 days |
7 |
272-6385
|
28 inch skirt retainer |
$31.83
|
1 |
|
usually ships 13-18 days |
8a |
272-3636
|
Skirt frame |
$112.55
|
1 |
(right hand) |
usually ships 1-5 days |
8b |
272-3629
|
28 inch left side skirt frame |
$127.40
|
1 |
(left hand) |
usually ships 1-5 days |
