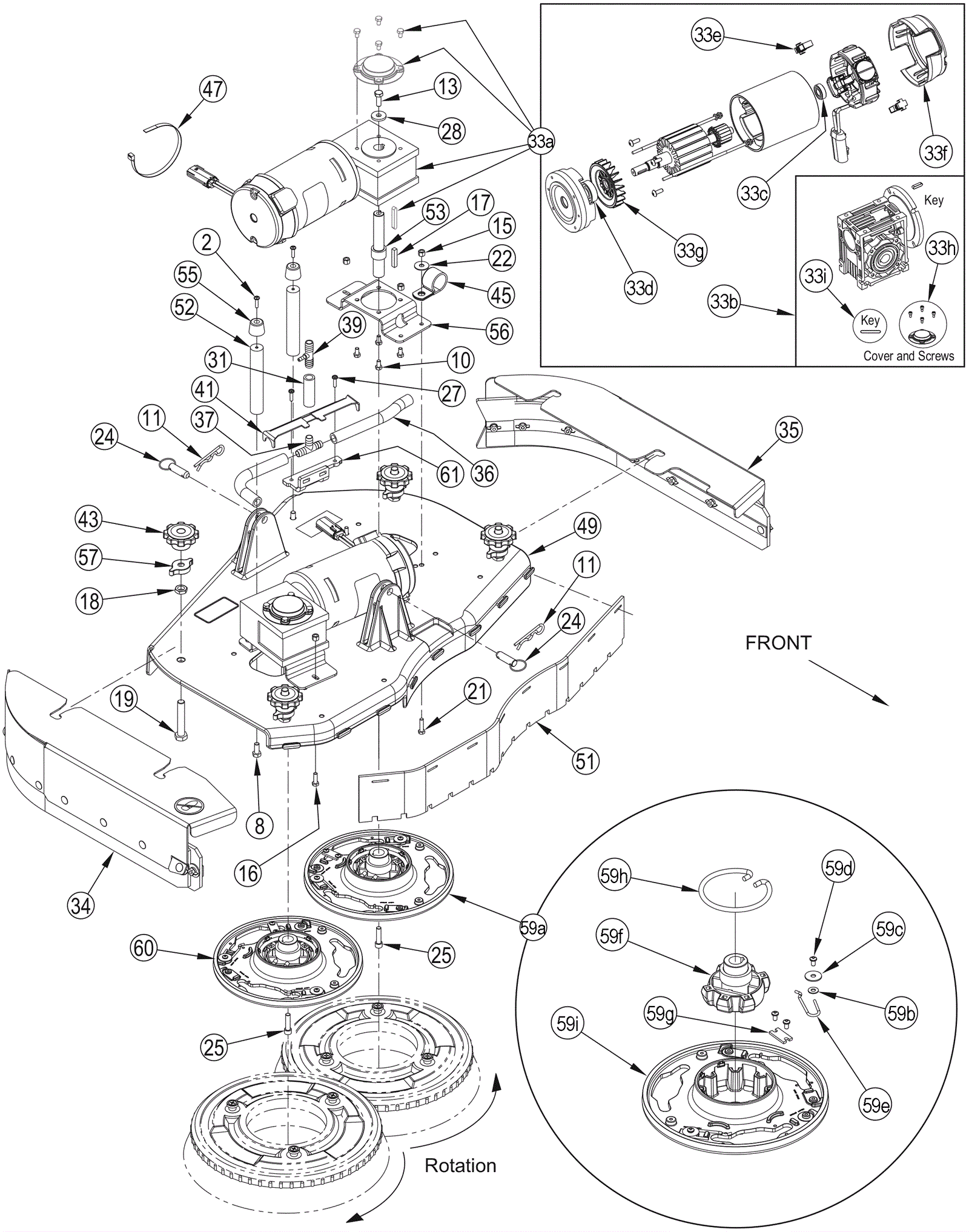

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
2 |
|
|
8 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
10 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
8 |
|
|
11 |
172-3483
|
Cotter pin |
2 |
|
|
13 |
999-0494
|
Bolt 5/16-18 x 7/8 hex head stainless steel |
2 |
|
|
15 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
6 |
|
|
16 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
5 |
|
|
17 |
181-0112
|
Square key |
2 |
|
|
18 |
999-1377
|
Nut M12-1.75 hex jam |
4 |
|
|
19 |
999-1349
|
Screw M12-1.75 x 70mm full thread hex head stainless steel |
4 |
|
|
21 |
999-0518
|
Bolt M6-1 x 25mm hex head full thread zinc |
1 |
|
|
22 |
272-1288
|
Washer 21/64-1 x 1/16 flat stainless steel |
1 |
|
|
24 |
272-7255
|
Ring pin |
2 |
|
|
25 |
272-9905
|
Screw 5/16-18 x 1 1/4 socket head zinc plated |
2 |
|
|
27 |
999-1104
|
Screw 10-24 x 3/4 pan head phillips thread rolling zinc |
2 |
|
|
28 |
172-3047
|
Washer 11/32 x 1/8 flat |
2 |
|
|
31 |
272-6112
|
Spiral hose |
1 |
|
|
33a |
572-9147
|
24V motor gearbox assembly |
2 |
(includes 33b-33i) |
|
33b |
272-6079
|
Replacement gearbox |
1 |
(includes 33h-33i) |
|
33c |
272-3607
|
Bearing |
1 |
|
|
33d |
172-8862
|
Brush side ball bearing |
1 |
|
|
33e |
272-3608
|
Carbon brush (sold individually) |
1 |
|
|
33f |
272-3610
|
Brush motor cover |
1 |
|
|
33g |
272-3611
|
Motor fan |
1 |
|
|
33h |
372-1364
|
Cover with screws |
1 |
|
|
33i |
272-3609
|
Square keyway |
1 |
|
|
34 |
572-9148
|
Right hand side blade assembly |
1 |
|
|
35 |
572-9149
|
Left hand side blade assembly |
1 |
|
|
36 |
172-2327
|
Wire reinforced clear hose (OBSOLETE) |
2 |
|
|
37 |
172-4114
|
Tee barb |
1 |
|
|
39 |
572-9135
|
Tee barb (OBSOLETE) |
1 |
|
|
41 |
572-9150
|
Solution hose retainer |
1 |
|
|
43 |
572-9330
|
Knob |
4 |
|
|
45 |
172-9261
|
P clamp |
1 |
|
|
47 |
997-2102
|
Cable tie |
2 |
|
|
49 |
272-3604
|
Scrub deck weldment |
1 |
|
|
51a |
272-8733
|
Squeegee blade 28 inch gum rubber front |
1 |
|
|
51b |
272-3600
|
Squeegee blade 28 inch urethane front |
1 |
(optional) |
|
52 |
272-3615
|
Rod |
2 |
|
|
53 |
272-3616
|
Shaft |
2 |
|
|
55 |
272-8773
|
Stop mount |
2 |
|
|
56 |
272-3619
|
Motor bracket |
2 |
|
|
57 |
172-9282
|
Knob |
4 |
|
|
59a |
272-3613
|
Right brush plate assembly |
1 |
(includes 59b-59i) |
|
59b |
999-1416
|
Washer 7/16 flat stainless steel |
1 |
|
|
59c |
172-0553
|
Washer 17/64 x 1/16 flat |
2 |
|
|
59d |
999-1833
|
Screw 10-14 x 3/8 pan head phillips stainless steel |
4 |
|
|
59e |
272-9883
|
Retainer spring |
2 |
|
|
59f |
272-7257
|
6 tab gimbal and collar assembly |
1 |
|
|
59g |
172-0155
|
Stop plate |
1 |
|
|
59h |
272-9884
|
Brush holder spring |
1 |
|
|
59i |
272-9885
|
Brush plate |
1 |
|
|
60 |
272-3618
|
Left brush plate assembly |
1 |
|
|
61 |
572-9151
|
Solution hose bracket |
1 |
|
|
