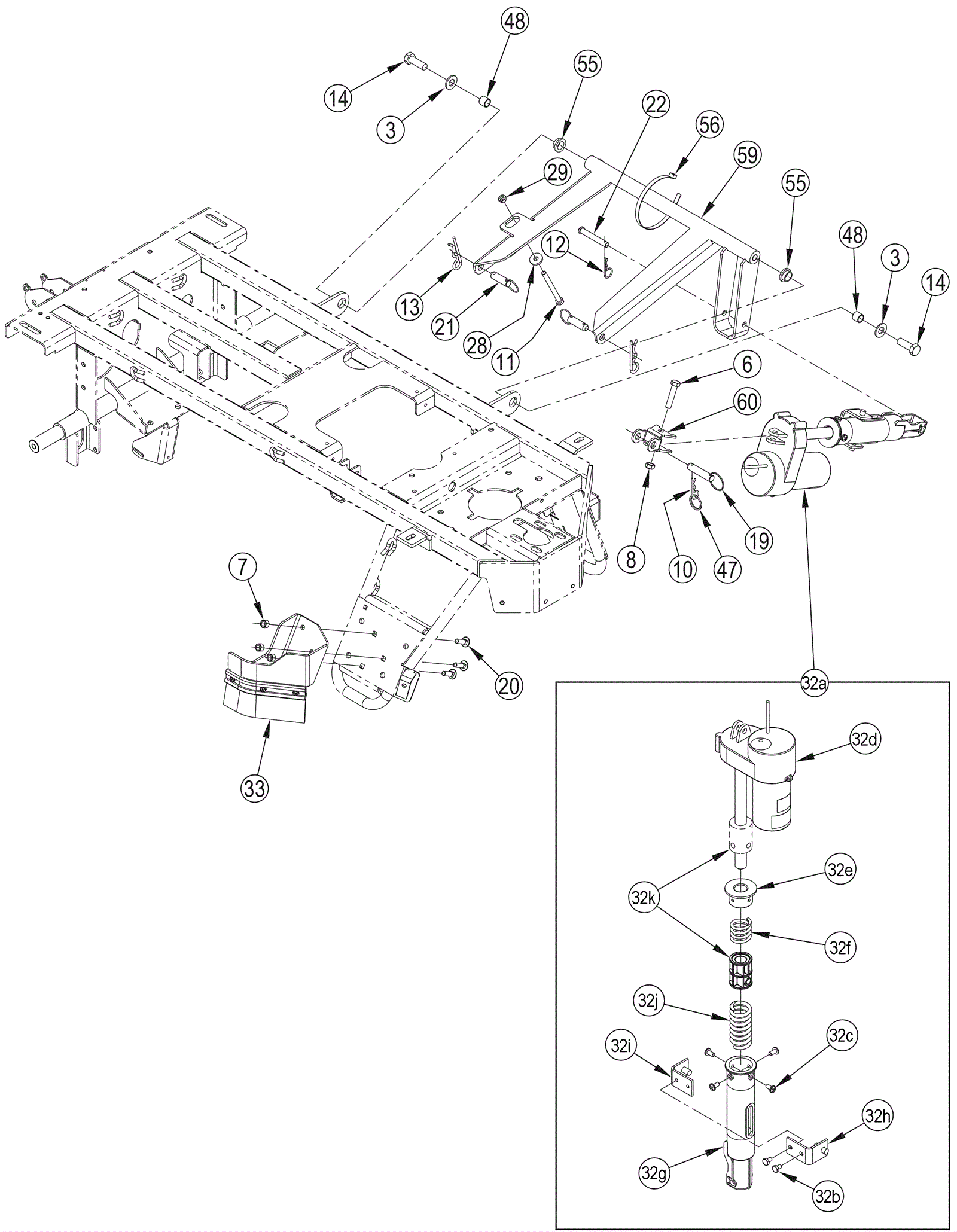

Liberty SC60 Cylindrical Scrub Assembly-2

#PartDescriptionPriceReqNotesAvailability
3 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
6 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 1 ships same day
7 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 3 ships same day
8 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
10 172-2001 Hair cotter pin $10.85 1 usually ships 17-28 days
11 172-4367 Screw 5/16 x 18 x 3 1/2 thread to head hex $12.31 1 usually ships 1-5 days
12 997-2511 Cotter pin $0.99 1 ships same day
13 172-3483 Cotter pin $12.31 2 usually ships 17-28 days
14 999-1128 Bolt M12-1.75 x 35mm hex hd stainless steel part thread $6.60 2 ships same day
19 272-2115 Clevis pin $10.13 1 usually ships 17-28 days
20 272-5974 Screw 5/16-18 x 1 carriage head SS $12.31 3 usually ships 1-5 days
21 272-7255 Ring pin $5.50 2 usually ships 1-5 days
22 272-3546 Clevis pin $5.39 1 usually ships 17-28 days
28 172-2067 Washer 11/32 x 1/8 flat $12.31 1 usually ships 17-28 days
29 272-2152 Belt cover $10.85 2 ships same day
32a 572-9136 Actuator assembly $381.96 1 (includes 32b-32k) usually ships 17-28 days
32b 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted $0.99 2 ships same day
32c 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 4 ships same day
32d 572-9137 Actuator $183.18 1 ships same day
32e 272-8539 Spring housing guide $63.07 1 usually ships 17-28 days
32f 172-8941 Compression spring $29.23 1 usually ships 17-28 days
32g 172-8952 Spring housing $72.63 1 usually ships 17-28 days
32h 172-8954 Nut retainer $52.67 1 usually ships 17-28 days
32i 172-8955 Nut retainer $52.67 1 usually ships 17-28 days
32j 272-3552 Compression spring $19.98 1 usually ships 17-28 days
32k 172-8922 Plastic drive nut $19.98 1 usually ships 17-28 days
33 572-9138 Right hand tip bar guard assembly $204.72 1 usually ships 17-28 days
47 272-9308 Ring $198.40 1 usually ships 17-28 days
48 172-0024 Bushing $13.76 2 usually ships 17-28 days
55 272-1843 Flanged bearing $13.76 2 usually ships 17-28 days
56 997-2102 Cable tie $1.24 3 ships same day
59 272-3549 Linkage weldment $222.53 1 usually ships 1-5 days
60 272-3550 Actuator yoke $23.01 1 usually ships 1-5 days
