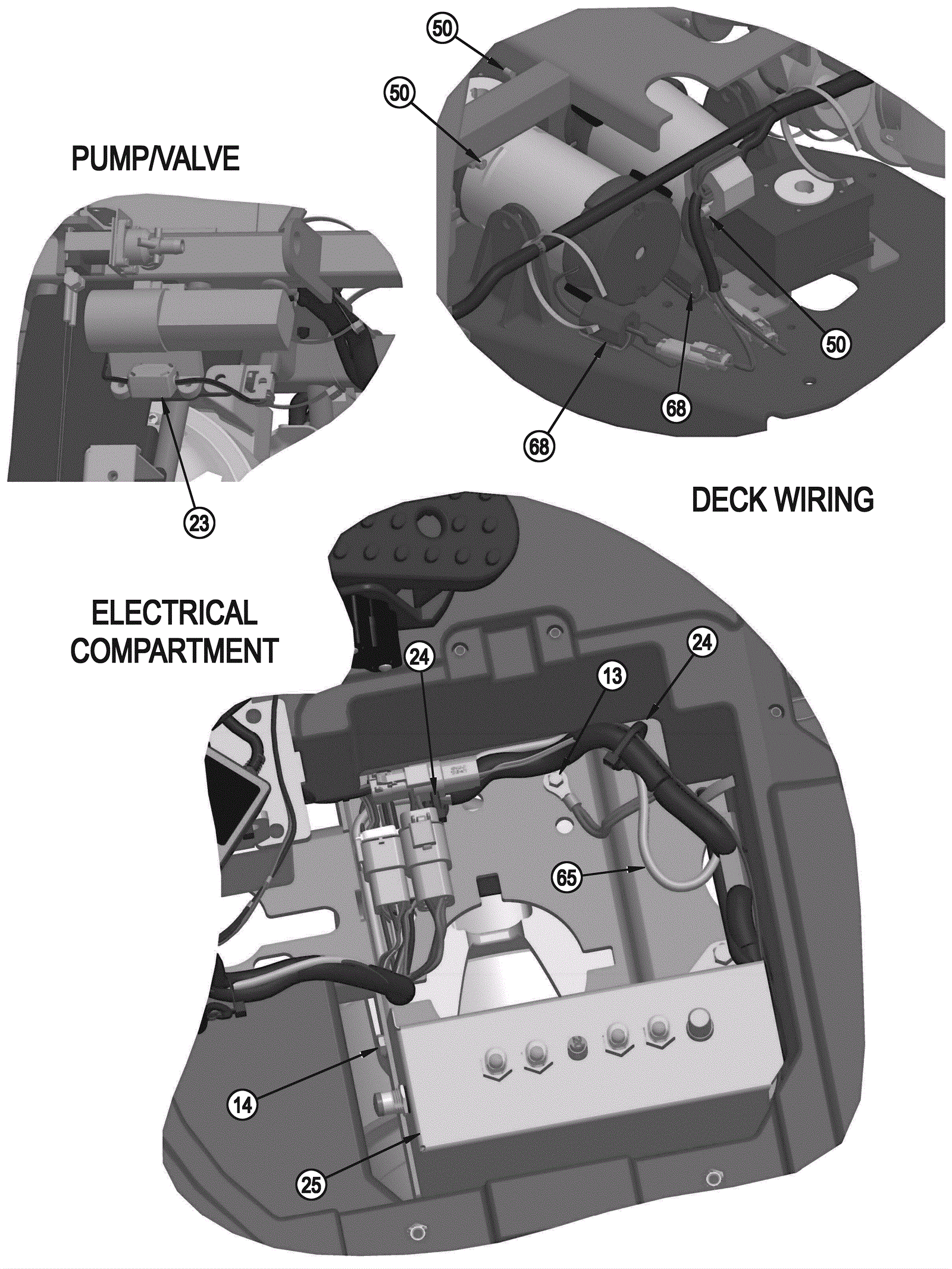

| # | Part | Description |
Req | Notes | Availability |
|---|
13 |
999-0793
|
Screw 10-24 x 3/8 hex washer slot thread cutting zinc |
2 |
|
|
14 |
999-0360
|
Screw 1/4-20 x 3/8 hex head thread rolling unslotted |
2 |
|
|
23 |
472-4939
|
FERRITE BEAD |
5 |
|
|
24 |
472-5079
|
CABLE TIE-MOUNT |
13 |
|
|
25a |
N/A
|
Not available |
1 |
(circuit breaker assembly) (made up of 25b-25i) |
|
25b |
472-4088
|
TRIM-EDGE |
1 |
|
|
25c |
572-9097
|
Circuit breaker bracket |
1 |
|
|
25d |
572-9098
|
Edge trim |
1 |
|
|
25e |
991-1628
|
5amp circuit breaker |
2 |
|
|
25f |
272-2209
|
30amp circuit breaker |
2 |
|
|
25g |
272-7727
|
20amp circuit breaker |
1 |
|
|
25h |
172-2523
|
70amp circuit breaker |
1 |
|
|
25i |
172-0232
|
Clear boot cap |
1 |
|
|
50 |
572-4228
|
8 inch cable tie (black) |
20 |
|
|
65 |
372-2021
|
Edge trim |
2 |
|
|
68 |
272-3623
|
Ferrite bead |
3 |
|
|
