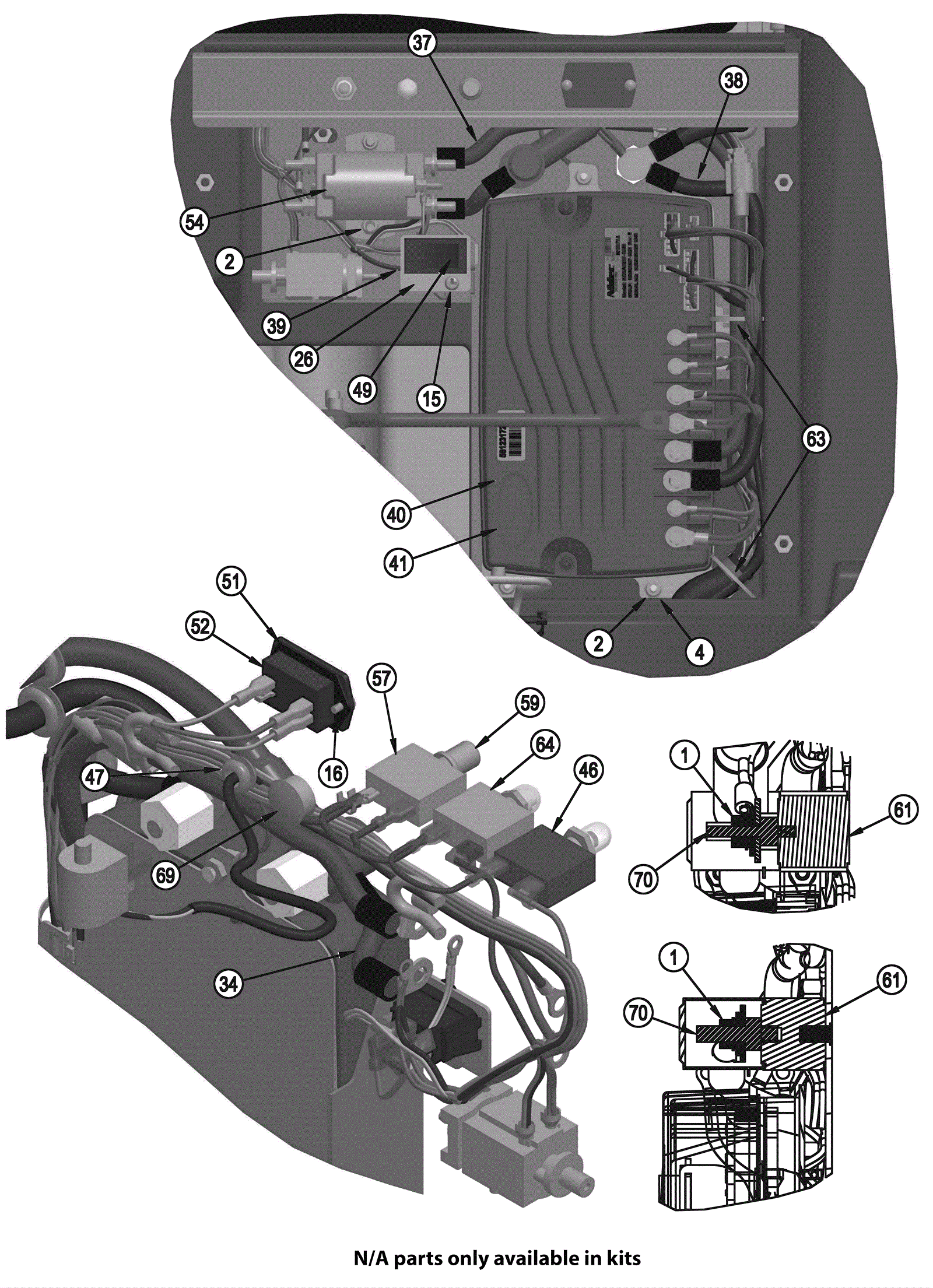

Liberty SC60 Electrical Assembly 2 - Machine Controller

#PartDescriptionPriceReqNotesAvailability
1 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
2 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
4 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
15 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 1 ships same day
16 N/A Not available Call for price 2 (push rivet) (only available with KIT4) usually ships 3-26 days
26 572-9033 Bypass decal $4.53 1 usually ships 17-28 days
34 572-9115 Wire assembly $32.69 1 usually ships 17-28 days
37 572-9116 Wire assembly $31.83 1 usually ships 17-28 days
38 572-9117 Wire assembly $28.50 1 usually ships 17-28 days
39 572-9118 Switch mounting plate $15.07 1 usually ships 17-28 days
40a N/A Not available Call for price 1 (machine controller assembly) (only available with KIT3) usually ships 3-26 days
40b 572-9108 Controller mounting plate $38.37 1 usually ships 17-28 days
40c 572-9109 Screw M4 x 30 $5.50 2 usually ships 17-28 days
41 N/A Not available Call for price 1 (cylinder machine controller) (only available with KIT5) usually ships 3-26 days
46 991-1628 5amp circuit breaker $13.76 1 usually ships 17-28 days
47 172-1228 Grommet $10.85 1 usually ships 1-5 days
49 272-0487 2 position rocker switch $31.10 1 ships same day
51 N/A Not available Call for price 1 (gasket) (only available with KIT4) usually ships 3-26 days
52 N/A Not available Call for price 1 (hour meter) (only available with KIT4) usually ships 3-26 days
54 172-2173 24V contactor $149.02 1 usually ships 17-28 days
57 272-9755 15amp circuit breaker $15.48 1 usually ships 17-28 days
59 172-0232 Clear boot cap $34.87 1 usually ships 17-28 days
61 172-0103 Electrical mount $13.76 2 usually ships 1-5 days
63 372-2096 Cable tie $12.31 9 usually ships 17-28 days
64 272-9374 10amp circuit breaker $24.60 1 ships same day
69 172-2306 Cap plug $12.31 1 usually ships 1-5 days
70 170-0064 Stud 1/4-20 $12.31 2 usually ships 1-5 days
KIT3 572-9113 Disc machine controller kit $1,479.24 1 (includes 40) usually ships 17-28 days
KIT4 272-0158 Optional hour meter kit $169.11 1 (includes 16, 51-52) usually ships 1-5 days
KIT5 572-9114 Cylinder machine controller kit $1,463.47 1 (includes 41) usually ships 17-28 days
