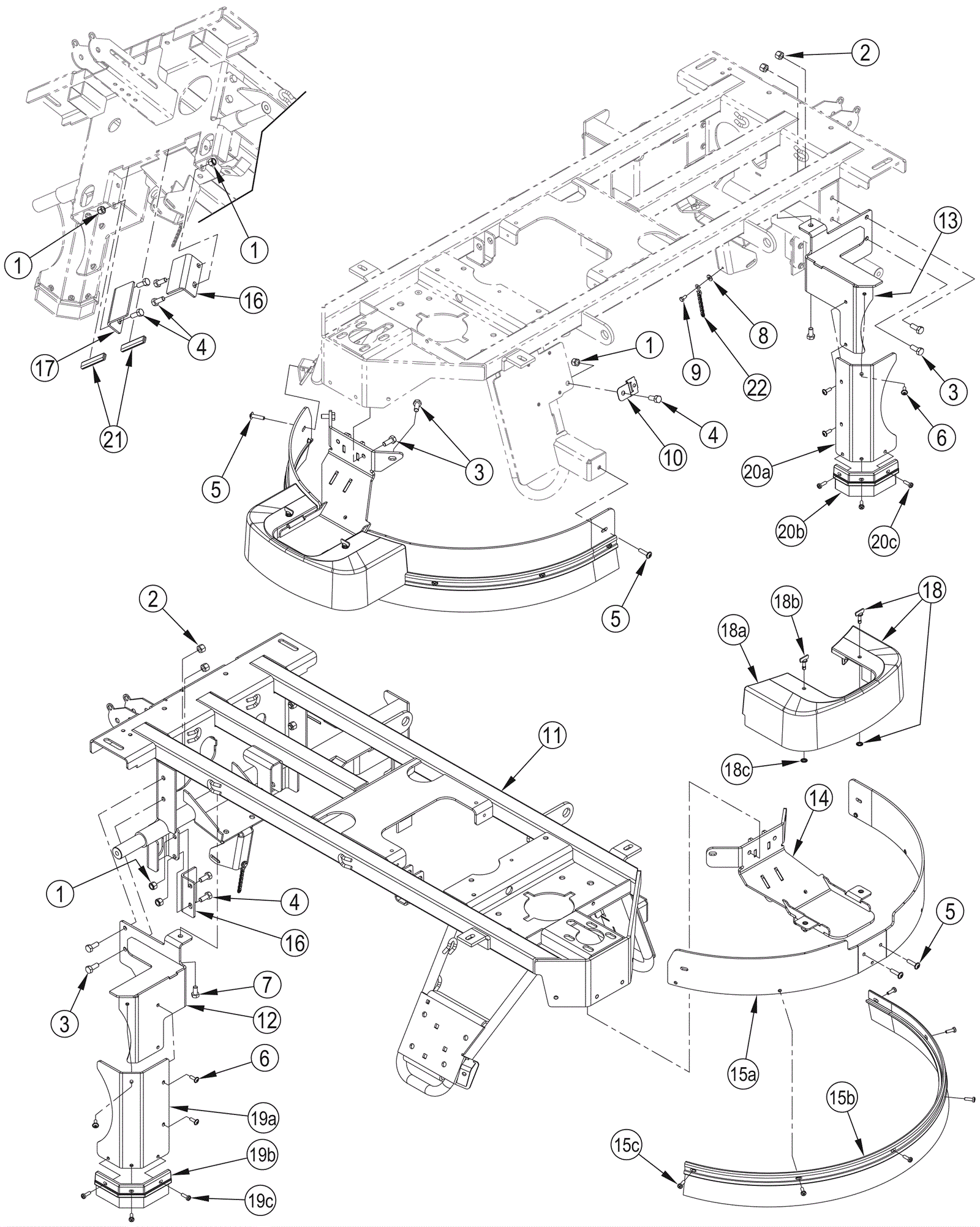

Liberty SC60 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 5 ships same day
2 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
3 999-9092 Screw M8-1.25 x 20mm hex head stainless steel $2.79 8 ships same day
4 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel $0.99 5 ships same day
5 572-9000 Screw M6 x 20 hex head flange $5.19 4 usually ships 17-28 days
6 572-9001 Screw M5 x 16 hex head flange $5.19 6 usually ships 17-28 days
7 572-9002 Screw M8 x 16 hex head threaded zinc $5.50 2 usually ships 17-28 days
8 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
9 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc $0.99 1 ships same day
10 372-3148 Connector clip $6.95 1 usually ships 17-28 days
11 572-9003 Chassis weldment $1,262.06 1 usually ships 17-28 days
12 572-9004 Right guard weldment $108.94 1 usually ships 17-28 days
13 572-9005 Left guard weldment $108.94 1 usually ships 17-28 days
14 572-9006 Front guard weldment $264.04 1 usually ships 17-28 days
15a 572-9007 Front wheel guard $136.44 1 usually ships 17-28 days
15b 572-9008 Front wheel skirt $102.29 1 usually ships 17-28 days
15c 572-3899 SCREW PAN HD M5 X 16 SS $12.31 6 usually ships 17-28 days
16 572-9009 Right hand squeegee stop $30.39 1 usually ships 17-28 days
17 572-9010 Left hand squeegee stop $30.39 1 usually ships 17-28 days
18a 372-3750 Lidar cover assembly $51.38 1 (includes 18b-18d) usually ships 17-28 days
18b 572-9011 Lidar cover $44.98 1 usually ships 17-28 days
18c 572-9012 Fastener $5.39 2 usually ships 17-28 days
18d 572-9013 Push on retainer $5.39 2 usually ships 17-28 days
19a 572-9014 Right hand wheel cover $44.30 1 usually ships 17-28 days
19b 572-9015 Right hand wheel skirt $65.97 1 usually ships 17-28 days
19c 572-3899 SCREW PAN HD M5 X 16 SS $12.31 3 usually ships 17-28 days
20a 572-9016 Left hand wheel cover $43.98 1 usually ships 17-28 days
20b 572-9017 Left hand wheel skirt $65.25 1 usually ships 17-28 days
20c 572-3899 SCREW PAN HD M5 X 16 SS $12.31 3 usually ships 17-28 days
21 172-8803 Edge trim $12.31 2 usually ships 17-28 days
22 272-8757 Ground chain $12.31 1 usually ships 1-5 days
