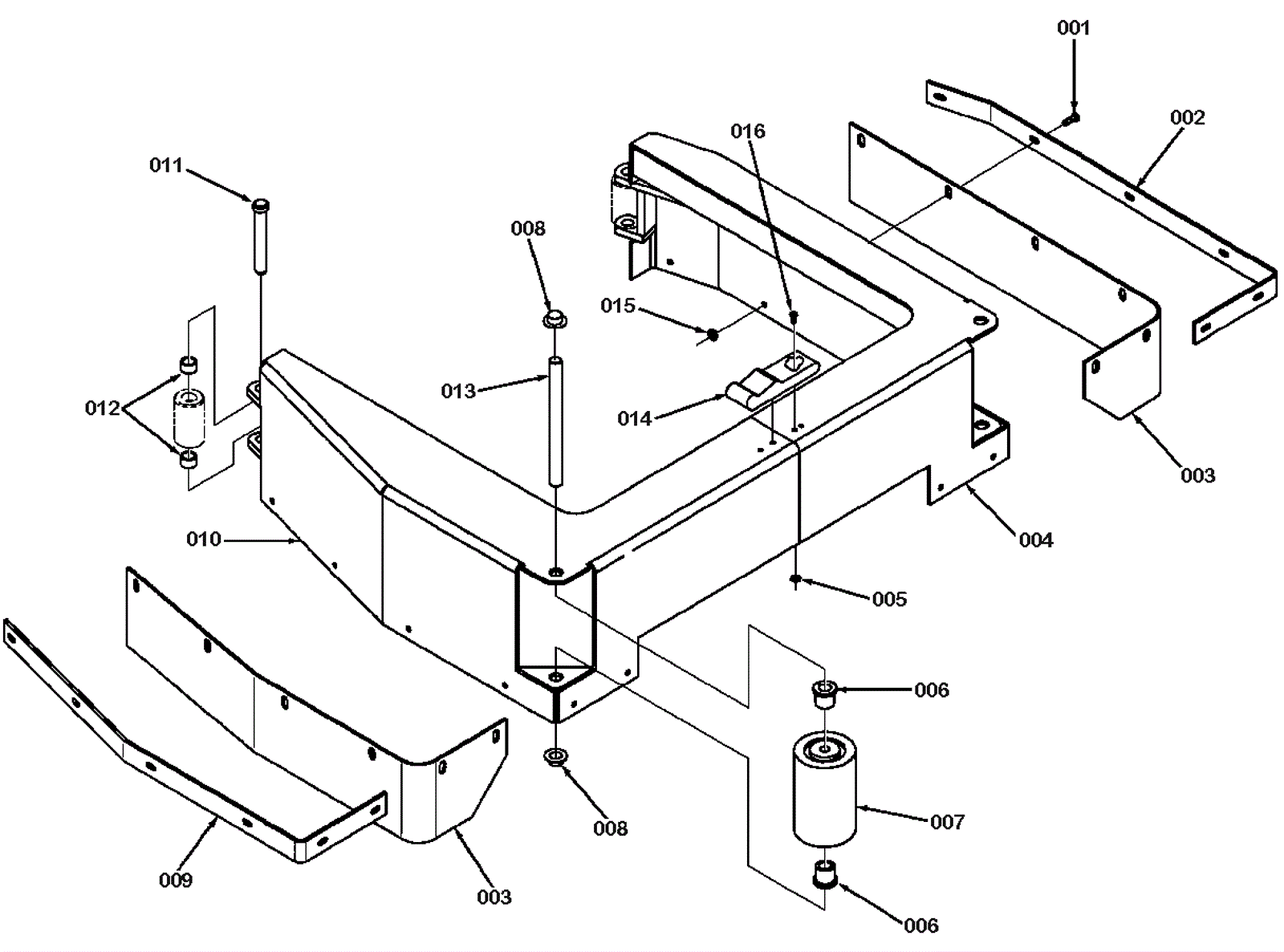

CONVERTAMATIC 265HD Skirts Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 12 ships same day
002 172-1008 Left strap (OBSOLETE) $81.97 1 usually ships 17-28 days
003 172-0574 Squeegee blade rubber skirt (OBSOLETE) $12.39 2 usually ships 17-28 days
004 N/A Not available Call for price 1 (Left splash guard) usually ships 3-26 days
005 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 4 ships same day
006 172-4090 Flanged bearing $20.68 4 usually ships 17-28 days
007 172-9790 Roller bumper $69.71 2 usually ships 1-5 days
008 172-4017 1/2 inch push cap $10.57 4 usually ships 1-5 days
009 172-1007 Right strap (OBSOLETE) $69.50 1 usually ships 17-28 days
010 N/A Not available Call for price 1 (Right splash guard) usually ships 3-26 days
011a 172-0047 Brass pin $27.50 2 usually ships 1-5 days
012 172-0048 Bearing $15.48 4 usually ships 17-28 days
013 272-1006 Rod (OBSOLETE) $8.78 2 usually ships 1-5 days
014 172-0049 Latch $120.08 1 usually ships 17-28 days
015 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 12 ships same day
016 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 4 ships same day
