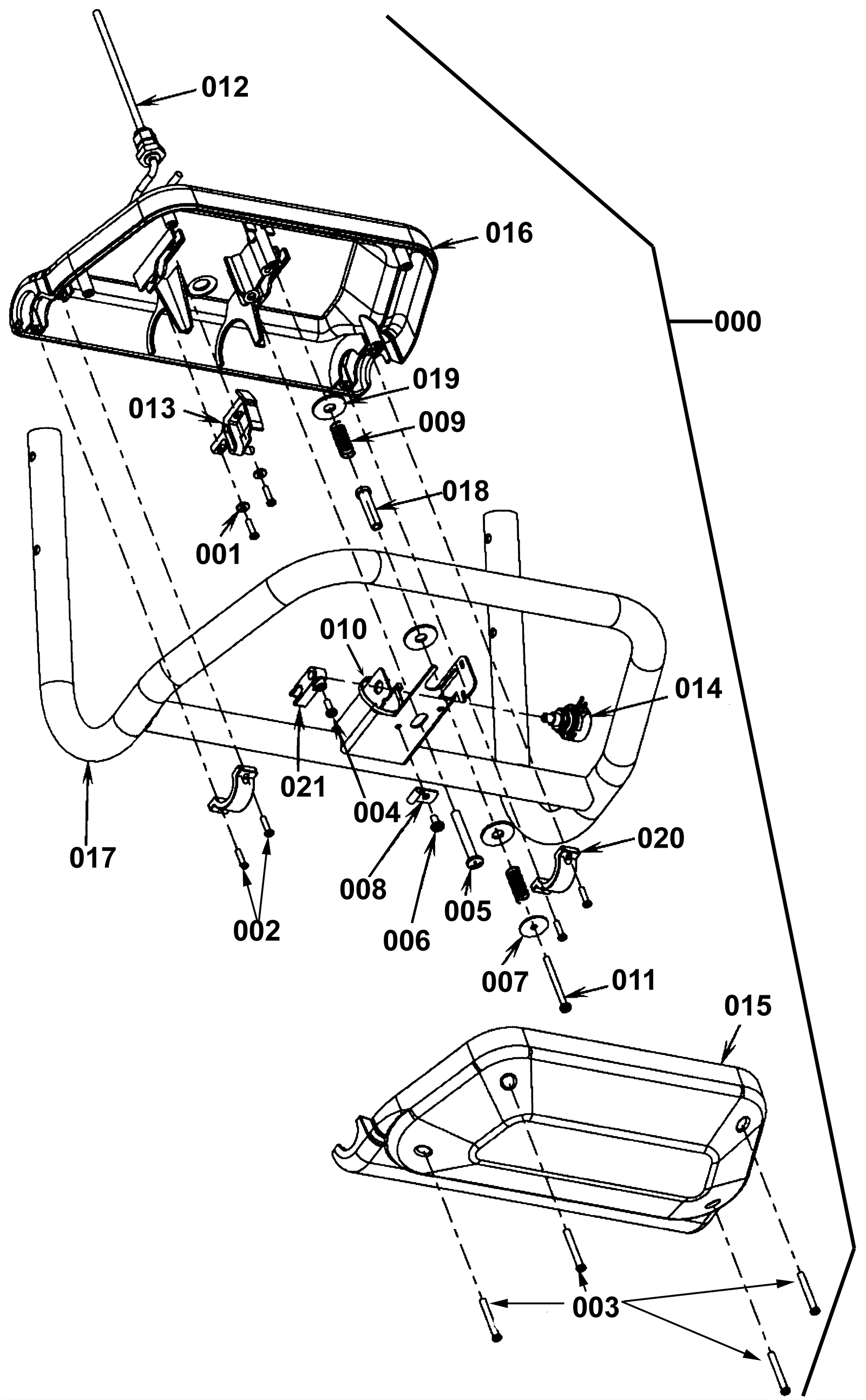

I-MAX 28C Handle Paddle Assembly

#PartDescriptionPriceReqNotesAvailability
000 172-1800 Handle assembly $853.98 1 (includes 001 thru 021) usually ships 1-5 days
001 999-0377 Washer 6 SAE flat plain finish $0.99 2 ships same day
002 999-1362 Screw 6-18 x 5/8 pan head phillips stainless steel $0.99 6 ships same day
003 999-1375 Screw 8-15 x 1 1/2 pan head phillips $0.99 4 usually ships 1-5 days
004 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 1 ships same day
005 172-2035 Screw 1/4-10 x 2 pan head phillips $10.90 1 usually ships 16-41 days
006 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 1 ships same day
007 999-0588 Washer 7/8 flat stainless steel $11.44 1 ships same day
008 172-8814 P clamp $9.60 1 usually ships 1-5 days
009 172-2036 Compression spring $10.90 2 usually ships 16-41 days
010 997-2101 6 inch cable tie $0.99 1 ships same day
011 172-2037 Screw 8 x 2 pan head phillips type B $9.60 1 usually ships 16-41 days
012 172-1772 Handle harness $100.90 1 usually ships 1-5 days
013 172-2038 Cam controller $13.70 1 ships same day
014 172-2039 5K potentiometer $55.83 1 ships same day
015 172-2040 Front handle (OBSOLETE) $53.59 1 usually ships 16-41 days
016 172-2041 Back handle $64.09 1 usually ships 16-41 days
017 172-2042 Handle weldment $290.00 1 usually ships 1-5 days
018 172-2043 Sleeve $24.47 1 usually ships 16-41 days
019 172-2045 Washer plastic $9.60 3 usually ships 16-41 days
020 272-1353 Clamp $10.90 2 usually ships 16-41 days
021 172-2047 U clamp $9.60 1 usually ships 16-41 days
