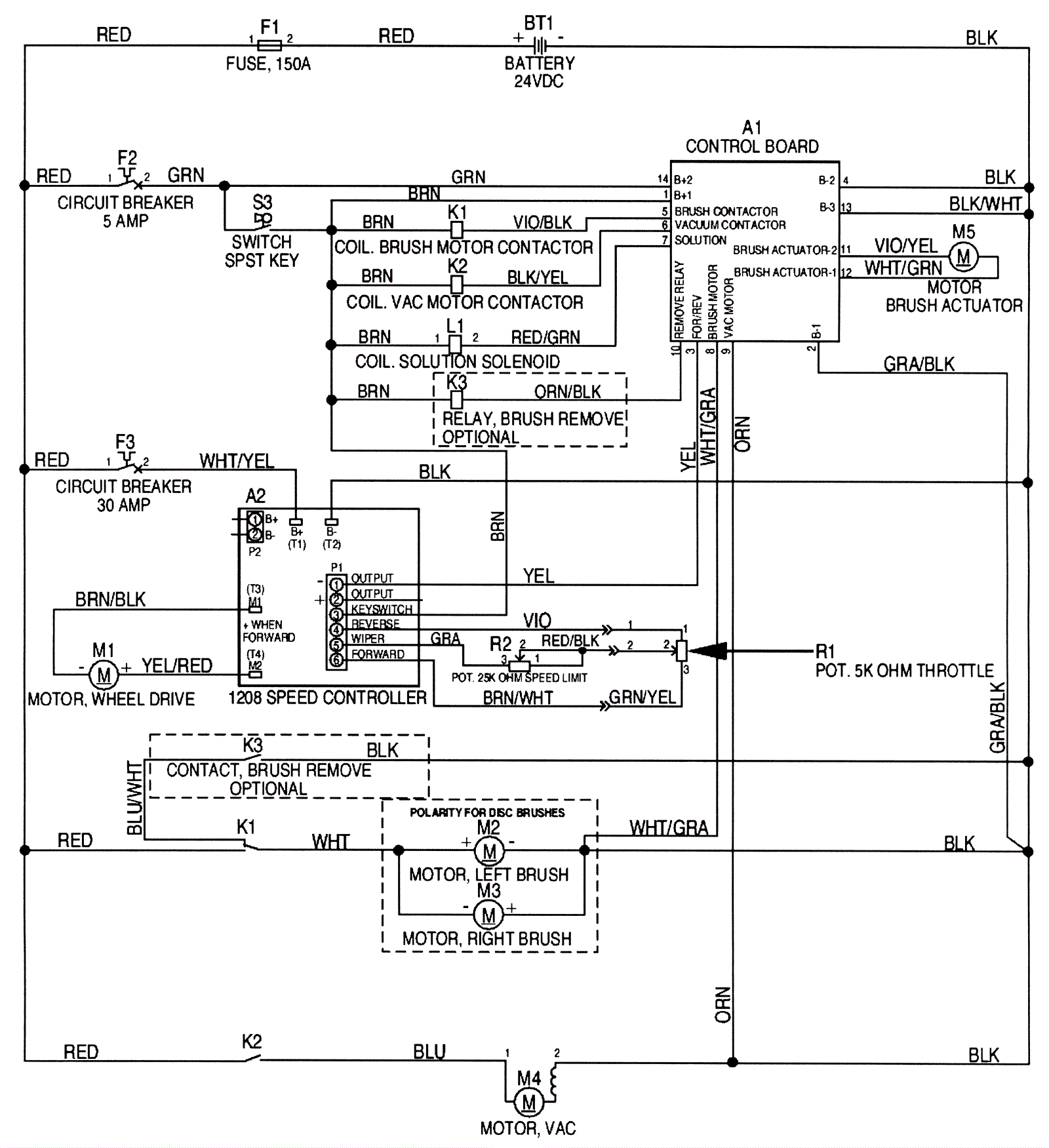

I-MAX 28C Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
A1 172-1895 Control PCB assembly $541.31 1 usually ships 16-41 days
A2 172-2156 Speed control $989.86 1 usually ships 16-41 days
F1a 172-8836 150amp fuse $17.41 1 usually ships 16-41 days
F1b 991-3061 150amp fuse $38.45 1 usually ships 5-16 days
F2 172-0228 5amp circuit breaker (OBSOLETE) $72.00 1 Controls usually ships 16-41 days
F3 181-0624 30amp circuit breaker $34.61 1 usually ships 1-5 days
K1a 172-2163 24V solenoid 4 post (2 large 2 small) $111.56 1 usually ships 16-41 days
K1b 172-2173 24V contactor $131.91 1 For brush removal option usually ships 16-41 days
K1c 991-1226 24V solenoid 4 post (2 large 2 small) (OBSOLETE) $54.00 1 (NON-OEM) usually ships 6-7 days
K2a 172-2163 24V solenoid 4 post (2 large 2 small) $111.56 1 usually ships 16-41 days
K2b 991-1226 24V solenoid 4 post (2 large 2 small) (OBSOLETE) $54.00 1 (NON-OEM) usually ships 6-7 days
K3 172-1768 Relay 24V SPST $36.00 1 For brush removal option usually ships 1-5 days
L1 172-1767 Solution valve assembly $210.68 1 usually ships 1-5 days
M1 172-1889 Motor 24V DC 1/2hp $989.86 1 Wheel Drive usually ships 1-5 days
M2a 172-2074 Gear motor (OBSOLETE) $2,222.70 1 usually ships 1-5 days
M2b 172-0479 Back end bearing (OBSOLETE) $46.10 1 usually ships 1-5 days
M2c 172-2053 Front end bearing (OBSOLETE) $47.40 1 usually ships 1-5 days
M2d 172-2054 Brush spring $15.00 4 usually ships 1-5 days
M2e 172-2079 Brush board assembly (OBSOLETE) $194.10 1 usually ships 1-5 days
M3 172-2074 Gear motor (OBSOLETE) $2,222.70 1 usually ships 1-5 days
M4a 991-1230 24V 3 stage vacuum motor tangential with snout $168.80 1 ships same day
M4b 991-1221 Carbon brush without plastic cover (pkg of 2) $13.20 1 usually ships 5-16 days
M5a 172-8921 Actuator $488.33 1 usually ships 16-41 days
M5b N/A Not available Call for price 2 Replacement limit switch usually ships 3-26 days
M5c 172-8922 Plastic drive nut $17.68 1 usually ships 16-41 days
M5c N/A Not available Call for price 1 Carbon brush kit usually ships 3-26 days
N/S 172-1763 Cable assembly (OBSOLETE) $127.10 1 usually ships 16-41 days
N/S 172-1764 Cable assembly $104.82 1 usually ships 1-5 days
N/S 172-1772 Handle harness $100.90 1 usually ships 1-5 days
N/S 172-1813 Main harness $470.00 1 usually ships 16-41 days
N/S 172-2056 Carbon brush (pkg of 4) $203.49 4 usually ships 16-41 days
N/S 172-2164 Cable assembly - ring terminal type $51.89 1 usually ships 16-41 days
N/S 172-2164 Cable assembly - ring terminal type $51.89 3 usually ships 16-41 days
R1 172-2039 5K potentiometer $55.83 1 Throttle ships same day
R2 991-9023 25K Potentiometer $23.14 1 Speed Limit ships same day
S3 172-1761 Toggle switch SPST $17.86 1 Main Power usually ships 16-41 days
