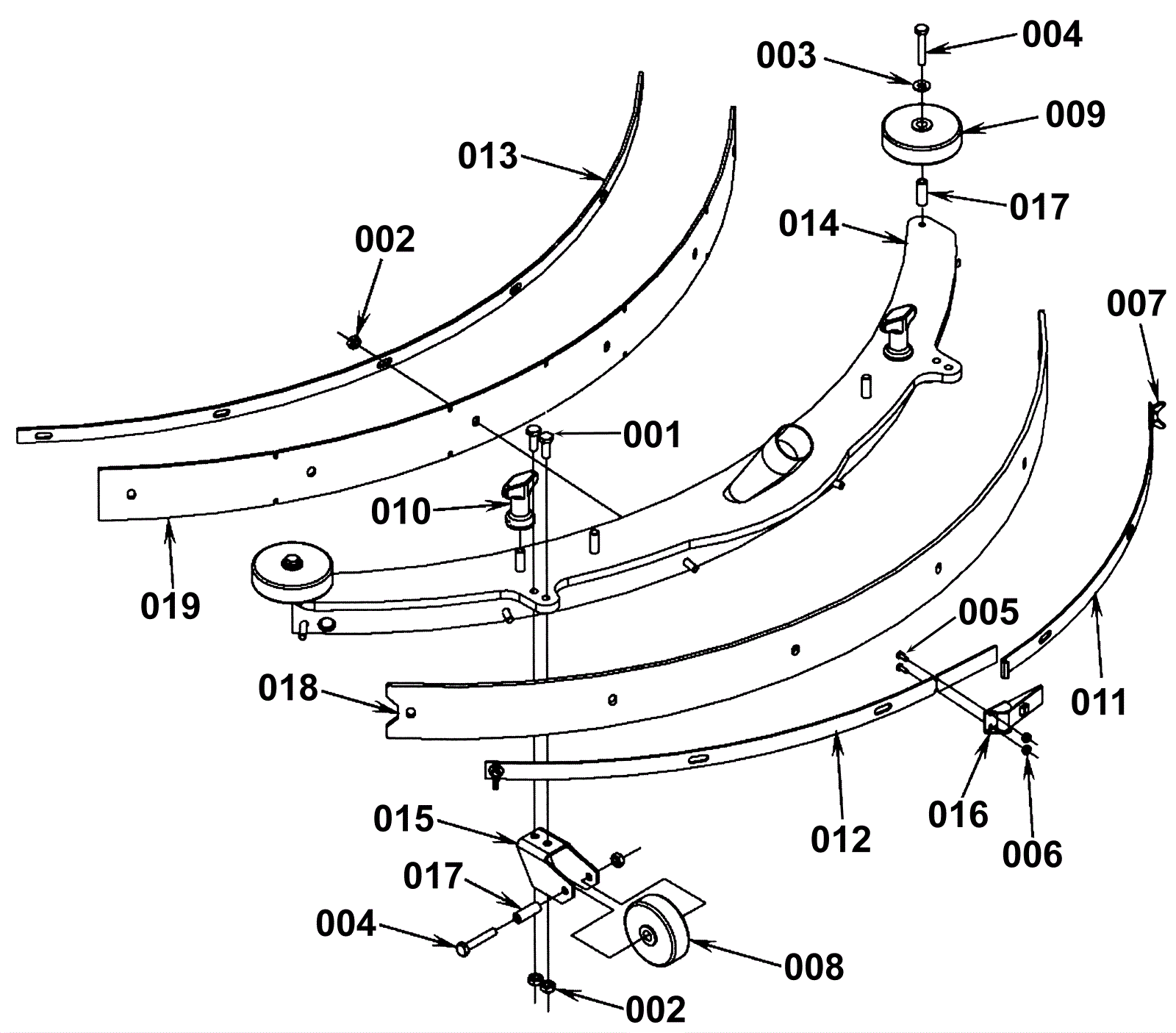

I-MAX 28C Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
000 172-0081 Squeegee assembly (OBSOLETE) $773.30 1 usually ships 16-41 days
001 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
002 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 12 ships same day
003 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
004 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 4 ships same day
005 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
006 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
007 999-1948 Nut 1/4-20 wing lock $2.12 2 ships same day
008a 172-0045 Guide wheel $12.18 2 usually ships 16-41 days
008b 991-3051 Guide wheel $3.96 2 ships same day
009a 172-0083 3 inch guide wheel $12.18 2 usually ships 16-41 days
009b 991-3060 Bumper wheel $4.62 2 usually ships 5-16 days
009c 991-3030 Wheel $3.46 2 (NON-OEM) ships same day
010 172-4099 Nut 5/16-18 thumb $10.24 2 ships same day
011 172-2192 Right rear strap (OBSOLETE) $31.99 1 usually ships 16-41 days
012 172-2147 Left rear strap $36.24 1 usually ships 16-41 days
013 172-0090 Front strap $61.09 1 usually ships 16-41 days
014 172-2149 Squeegee tool weldment $926.57 1 usually ships 16-41 days
015 172-0093 Wheel bracket $40.72 2 usually ships 16-41 days
016 172-0094 Latch $39.46 1 ships same day
017 172-0095 Bushing $32.15 4 usually ships 16-41 days
018a 172-0007 Squeegee blade 39 3/4 inch gum rubber rear (tan) $38.04 1 (OEM) usually ships 16-41 days
018b 994-0024 Squeegee blade 39 3/4 inch gum rubber rear (tan) $18.17 1 (NON-OEM) ships same day
019a 172-0086 Squeegee blade 37 inch gum rubber front (tan) $30.22 1 (OEM) usually ships 16-41 days
019b 994-0025 Squeegee blade 37 inch gum rubber front (tan) $10.39 1 (NON-OEM) ships same day
019c 172-1930 Squeegee blade front gum rubber tile $25.25 1 usually ships 16-41 days
019d 172-1931 Squeegee blade gum rubber front tile red $51.89 1 usually ships 16-41 days
kit 172-0096 Squeegee blade kit standard gum rubber $31.51 1 usually ships 16-41 days
KIT 172-0096 Squeegee blade kit standard gum rubber $31.51 1 Gum Rubber usually ships 16-41 days
KIT 172-0097 Squeegee blade kit oil resistant neoprene $65.69 1 usually ships 16-41 days
KIT 172-1928 Squeegee lift weldment 27 inch $210.04 1 usually ships 1-5 days
kit 172-1929 Squeegee blade kit 28 inch gum rubber (red) $96.44 1 usually ships 16-41 days
