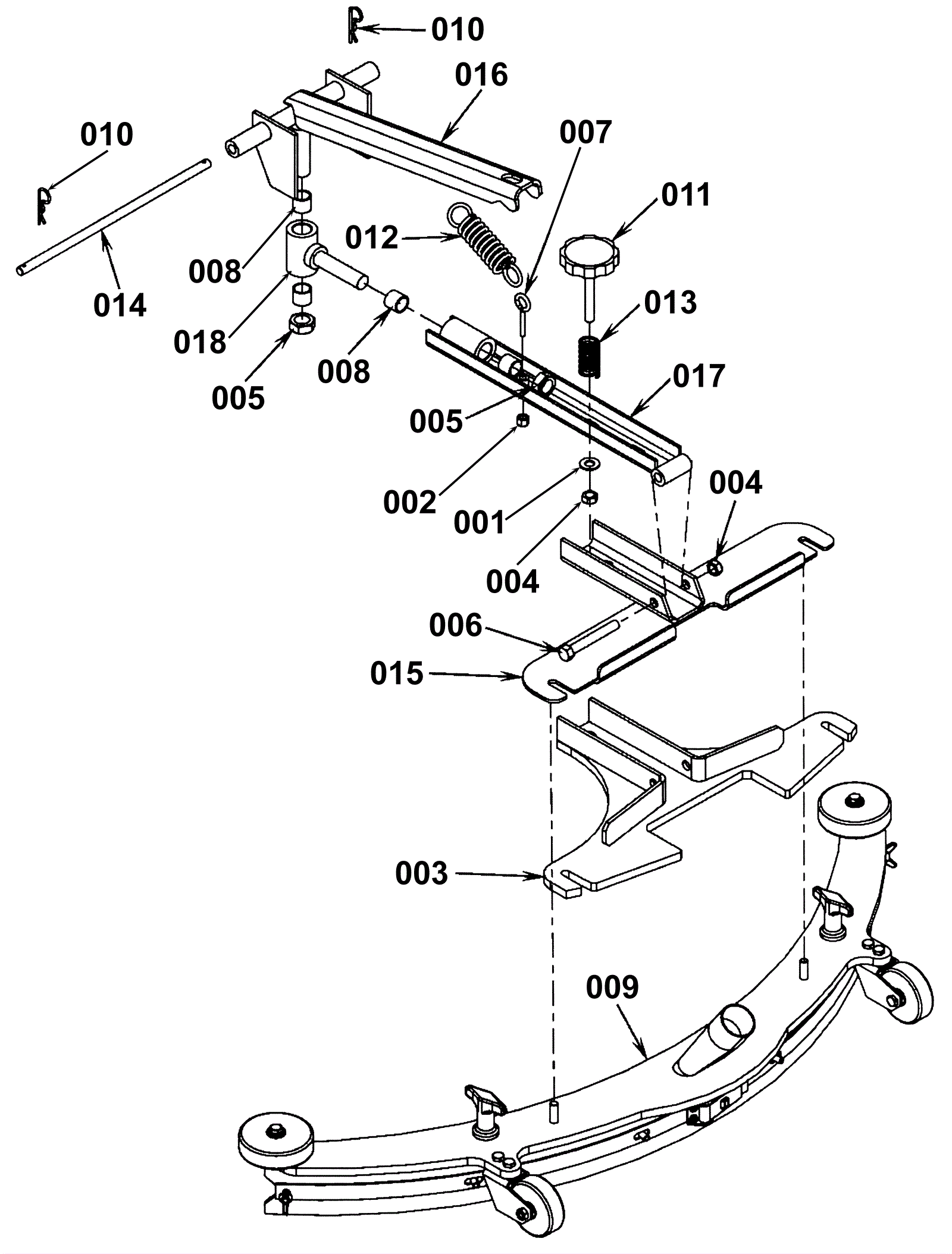

I-MAX 28C Squeegee System

#PartDescriptionPriceReqNotesAvailability
001 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
002 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
004 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
005 999-0704 Nut 5/8-11 nylon insert lock stainless steel $3.65 2 ships same day
006 999-0686 Bolt 3/8-16 x 2 3/4 hex head stainless steel $2.55 1 ships same day
007 172-0547 Bolt 1/4-20 x 1 3/8 eye $9.56 1 usually ships 1-5 days
008 172-0107 Sleeve bearing $12.02 4 usually ships 1-5 days
009 172-0081 Squeegee assembly (OBSOLETE) $773.30 1 usually ships 16-41 days
010 997-2511 Cotter pin $0.99 2 ships same day
011 272-1425 Adjustment knob assembly $64.09 1 ships same day
012 181-0142 Extension spring $21.77 1 usually ships 16-41 days
013 181-0168 Compression spring $11.88 1 usually ships 16-41 days
014 172-1926 Steel shaft 3/8 diameter (OBSOLETE) $28.93 1 usually ships 1-5 days
015 172-1927 Squeegee mount weldment $132.70 1 usually ships 1-5 days
016 172-1928 Squeegee lift weldment 27 inch $210.04 1 usually ships 1-5 days
017 272-1429 Squeegee bar weldment $154.93 1 usually ships 1-5 days
018 272-1430 Squeegee pivot weldment $94.43 1 usually ships 1-5 days
