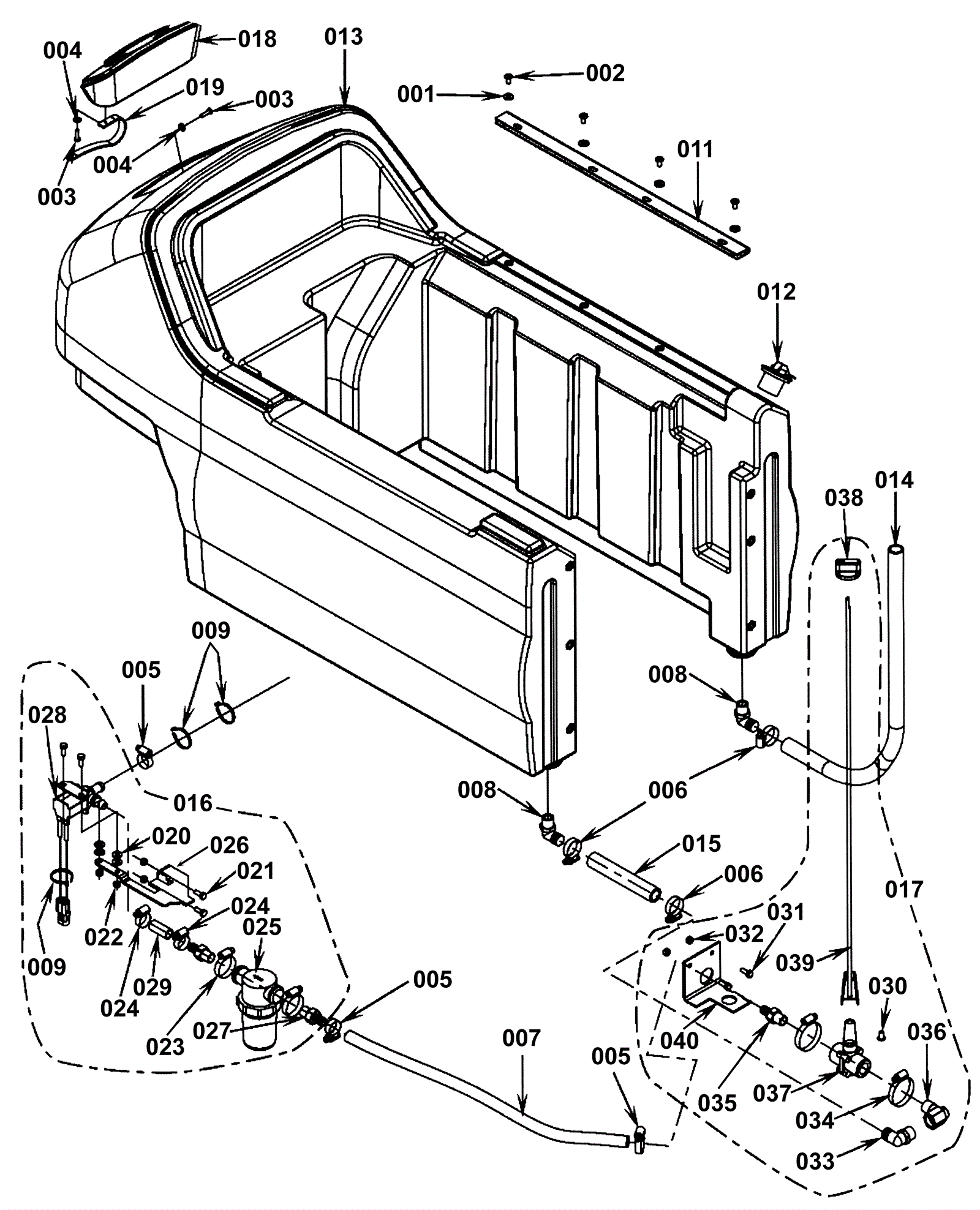

I-MAX 28C Solution System

#PartDescriptionPriceReqNotesAvailability
001 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
002 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 4 Valve Assembly ships same day
003 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 2 ships same day
004 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
005 997-2002 Hose clamp #6 $2.15 3 Filter Assembly ships same day
006 997-2005 Hose clamp $2.15 3 ships same day
007 172-2327 Wire reinforced clear hose (OBSOLETE) $11.38 1 usually ships 16-41 days
008 172-2322 90 degree elbow barb 3/4 x 3/8 $23.05 2 usually ships 16-41 days
009 997-2101 6 inch cable tie $0.99 3 ships same day
011 N/A Not available Call for price 1 usually ships 3-26 days
012 172-2106 Expansion plug $83.48 1 usually ships 16-41 days
013 172-1919 Solution tank (OBSOLETE) $933.92 1 usually ships 1-5 days
014 172-1920 Solution drain hose $15.00 1 ships same day
015 172-1921 PVC hose 3/4 x 5 E00521 (OBSOLETE) $7.26 1 usually ships 1-5 days
016a 172-1922 Filter assembly ST (OBSOLETE) $131.00 1 Includes part numbers 20 thru 29 usually ships 1-5 days
016b 172-1923 Filter assembly (OBSOLETE) $149.50 1 Includes part numbers 20 thru 29 usually ships 1-5 days
017 172-1924 Ball valve assembly (OBSOLETE) $157.50 1 Includes part numbers 30 thru 40 usually ships 1-5 days
018 172-2111 Solution lid $83.26 1 usually ships 16-41 days
019 172-8109 Retaining strap (OBSOLETE) $10.90 1 usually ships 16-41 days
020 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 Filter Assembly ships same day
021 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 Filter Assembly ships same day
022 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
023 997-2008 Hose clamp $2.31 2 Filter Assembly ships same day
024 997-2002 Hose clamp #6 $2.15 2 Filter Assembly ships same day
025a 172-2093 Inlet filter $82.73 1 You can not get just the bottom cap alone, you must purchase the entire inlet filter. usually ships 16-41 days
025b 172-9025 Solution filter $74.79 1 Filter Assembly ships same day
025c 991-3055 Solution filter $59.94 1 (NON-OEM) usually ships 5-16 days
026 272-1415 Filter bracket (OBSOLETE) $13.40 1 Filter Assembly usually ships 1-5 days
027a 172-2113 Female hose barb $9.60 2 Filter Assembly usually ships 1-5 days
027b 172-9027 Adapter barb NPT $10.90 2 Filter Assembly usually ships 1-5 days
028 172-1767 Solution valve assembly $210.68 1 Filter Assembly usually ships 1-5 days
029a 172-1868 PVC hose $10.90 1 Filter Assembly usually ships 1-5 days
029b 172-1869 PVC hose $7.85 1 Filter Assembly ships same day
030 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 1 Valve Assembly ships same day
031 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 Valve Assembly ships same day
032 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 Valve Assembly ships same day
033 172-1760 Barb $10.90 1 Valve Assembly ships same day
034 997-2000 Hose clamp $2.37 2 Valve Assembly ships same day
035 172-9027 Adapter barb NPT $10.90 1 usually ships 1-5 days
036 172-2102 Street elbow (OBSOLETE) $8.50 1 Valve Assembly usually ships 16-41 days
037 172-2105 Manual solution valve $176.61 1 Valve Assembly usually ships 16-41 days
038 272-1417 Knob $3.05 1 Valve Assembly usually ships 16-41 days
039 172-1866 Valve weldment (OBSOLETE) $44.50 1 Valve Assembly usually ships 16-41 days
040 172-1925 Water valve bracket (OBSOLETE) $16.28 1 Valve Assembly usually ships 1-5 days
