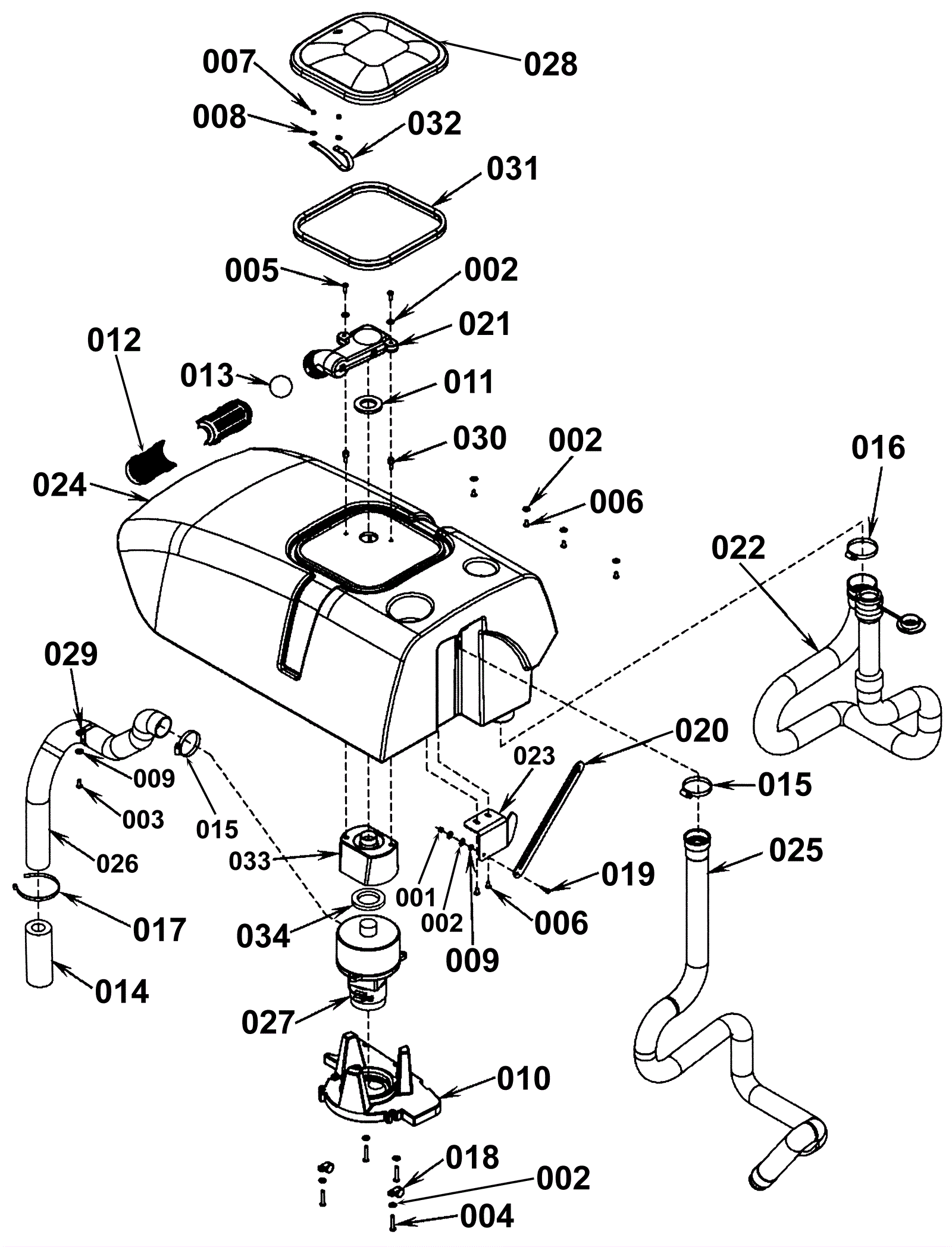

I-MAX 28C Recovery System

#PartDescriptionPriceReqNotesAvailability
001 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
002 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 12 ships same day
003 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 1 ships same day
004 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 4 ships same day
005 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
006 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 6 ships same day
007 172-0513 Pop rivet $8.18 2 usually ships 16-41 days
008 172-0253 Washer 1/8 x 23/64 flat stainless steel $10.90 2 usually ships 16-41 days
009 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
010 272-1367 Vacuum motor duct $91.06 1 usually ships 1-5 days
011 172-2119 Gasket $10.90 1 usually ships 16-41 days
012 172-0517 Float cage half (2 required for full float cage) $24.47 2 plastic ships same day
013 172-0192 Float ball $9.56 1 ships same day
014 172-0126 Acoustical foam $25.87 1 usually ships 16-41 days
015 997-2003 Hose clamp $2.66 2 ships same day
016 997-2009 Hose clamp $3.30 1 ships same day
017 997-2102 Cable tie $1.24 1 ships same day
018 172-2122 P clamp $10.90 2 usually ships 16-41 days
019 181-0223 Screw socket head $10.90 1 usually ships 16-41 days
020 172-2123 Slotted steel bar (OBSOLETE) $39.77 1 usually ships 16-41 days
021 172-2118 Float duct $106.29 1 usually ships 16-41 days
022 272-1369 Drain hose with molded plug $123.47 1 usually ships 16-41 days
023 172-1903 Pivot bracket (OBSOLETE) $95.50 1 usually ships 1-5 days
024a 172-1904 Recovery tank (OBSOLETE) $833.23 1 (Advance) usually ships 1-5 days
024b 172-1905 Recovery tank (OBSOLETE) $896.18 1 (Nilfisk) usually ships 1-5 days
025 172-1861 1 1/2 inch vacuum hose assembly $55.83 1 usually ships 16-41 days
026 172-2126 Vacuum motor exhaust hose $85.94 1 usually ships 16-41 days
027a 991-1230 24V 3 stage vacuum motor tangential with snout $168.80 1 ships same day
027b 991-1221 Carbon brush without plastic cover (pkg of 2) $13.20 1 usually ships 5-16 days
028 172-2129 Lid $58.39 1 usually ships 16-41 days
029 172-2131 Hose clamp $9.60 1 usually ships 1-5 days
030 172-2132 Spacer bolt $46.00 2 usually ships 1-5 days
031 172-2135 Lid gasket $38.04 1 usually ships 16-41 days
032 172-8109 Retaining strap (OBSOLETE) $10.90 1 usually ships 16-41 days
033 172-2137 Vacuum motor spacer (OBSOLETE) $43.50 1 usually ships 16-41 days
034 172-2138 Vacuum motor gasket $10.90 1 usually ships 16-41 days
