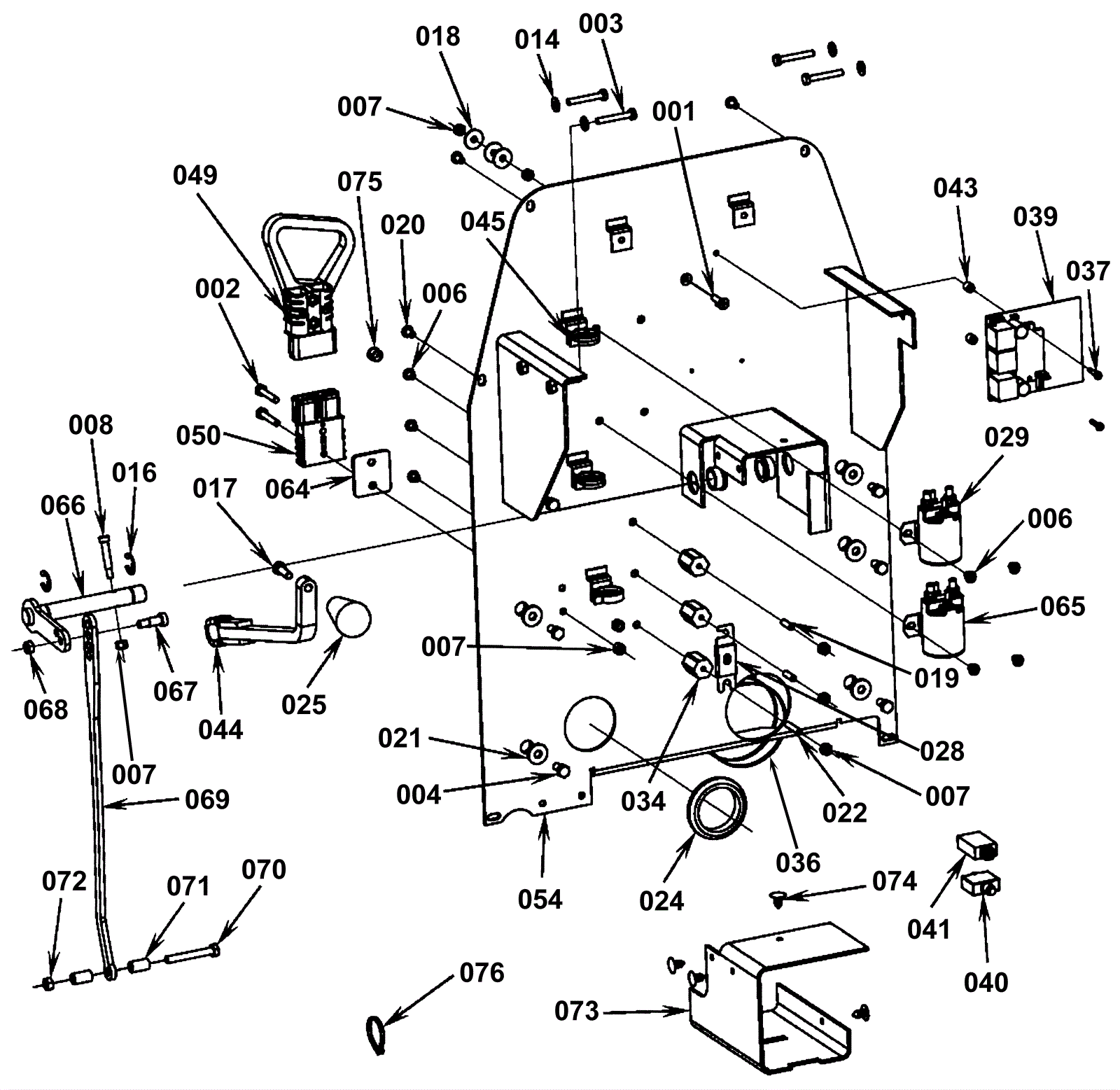

I-MAX 28C Control-Electrical System-2

#PartDescriptionPriceReqNotesAvailability
001 999-0348 Screw 1/4-20 x 1 flat head phillips zinc plated $0.99 1 ships same day
002 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 2 ships same day
003 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
004 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 6 ships same day
006 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 7 ships same day
007 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 10 ships same day
008 999-0573 Screw 5/16-18 x 1 1/4 socket head alloy plain finish $0.99 1 ships same day
014 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 10 ships same day
016 172-9513 Retaining ring $10.90 2 usually ships 1-5 days
017 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel $0.99 1 ships same day
018 172-0553 Washer 17/64 x 1/16 flat $9.60 3 usually ships 16-41 days
019 172-0345 Terminal stud $10.90 2 usually ships 16-41 days
020 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 12 ships same day
021 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
022 172-0346 Stud 1/4-20 $10.90 1 usually ships 16-41 days
023 172-9388 Flanged bearing $12.18 2 usually ships 16-41 days
024 172-4032 Grommet $10.90 1 usually ships 1-5 days
025 172-0021 Knob $21.77 1 usually ships 16-41 days
026 172-0223 Battery cable boot $8.20 8 ships same day
028a 172-8836 150amp fuse $17.41 1 usually ships 16-41 days
028b 991-3061 150amp fuse $38.45 1 usually ships 5-16 days
029a 172-2163 24V solenoid 4 post (2 large 2 small) $111.56 1 usually ships 16-41 days
029b 991-1226 24V solenoid 4 post (2 large 2 small) (OBSOLETE) $54.00 1 (NON-OEM) usually ships 6-7 days
030 172-2164 Cable assembly - ring terminal type $51.89 3 Battery Interconnect usually ships 16-41 days
034 172-0103 Electrical mount $12.18 3 usually ships 1-5 days
036 997-2103 8 inch cable tie $0.99 2 ships same day
037 999-0080 Screw 8-32 x 7/8 round head slotted zinc plated $0.99 2 ships same day
039 172-2156 Speed control $989.86 1 usually ships 16-41 days
040 181-0624 30amp circuit breaker $34.61 1 Wheel Drive usually ships 1-5 days
041 172-0228 5amp circuit breaker (OBSOLETE) $72.00 1 Controls usually ships 16-41 days
043 181-0197 Aluminum spacer (OBSOLETE) $8.30 2 usually ships 1-5 days
044 172-1805 Lift lever weldment (OBSOLETE) $62.74 1 usually ships 1-5 days
045 172-1806 Conduit clip (OBSOLETE) $6.95 3 usually ships 1-5 days
049 172-1763 Cable assembly (OBSOLETE) $127.10 1 Connected to batteries usually ships 16-41 days
050a 172-1764 Cable assembly $104.82 1 Connected to machine usually ships 1-5 days
050b 172-1896 Contact 1AWG $13.37 2 usually ships 1-5 days
050c 162-5045 175amp charger plug with pins (red) SB175 $12.87 1 ships same day
054 172-1897 Back panel st weldment (OBSOLETE) $552.96 1 usually ships 1-5 days
056 172-1813 Main harness $470.00 1 usually ships 16-41 days
061 172-1812 Cable assembly $10.70 1 usually ships 1-5 days
064 172-2155 Spacer $8.20 1 usually ships 1-5 days
065a 172-2163 24V solenoid 4 post (2 large 2 small) $111.56 1 usually ships 16-41 days
065b 991-1226 24V solenoid 4 post (2 large 2 small) (OBSOLETE) $54.00 1 (NON-OEM) usually ships 6-7 days
066 172-1808 Lift shaft weldment (OBSOLETE) $48.06 1 usually ships 1-5 days
067 999-0402 Screw 5/16-18 x 5/8 socket head shoulder $1.03 1 ships same day
068 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 ships same day
069 172-1809 Squeegee lift link (OBSOLETE) $35.98 1 usually ships 1-5 days
070 999-1368 Screw M8-1.25 x 60mm hex head stainless steel $3.41 1 ships same day
071 272-1424 Spacer (OBSOLETE) $7.98 2 usually ships 1-5 days
072 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
073 172-1810 Rubber flap (OBSOLETE) $8.09 1 usually ships 1-5 days
074 172-1811 Panel clip $5.50 4 usually ships 1-5 days
075 181-0095 Dome plug $10.90 1 usually ships 1-5 days
076 997-2101 6 inch cable tie $0.99 8 ships same day
N/S 172-1813 Main harness $470.00 1 usually ships 16-41 days
