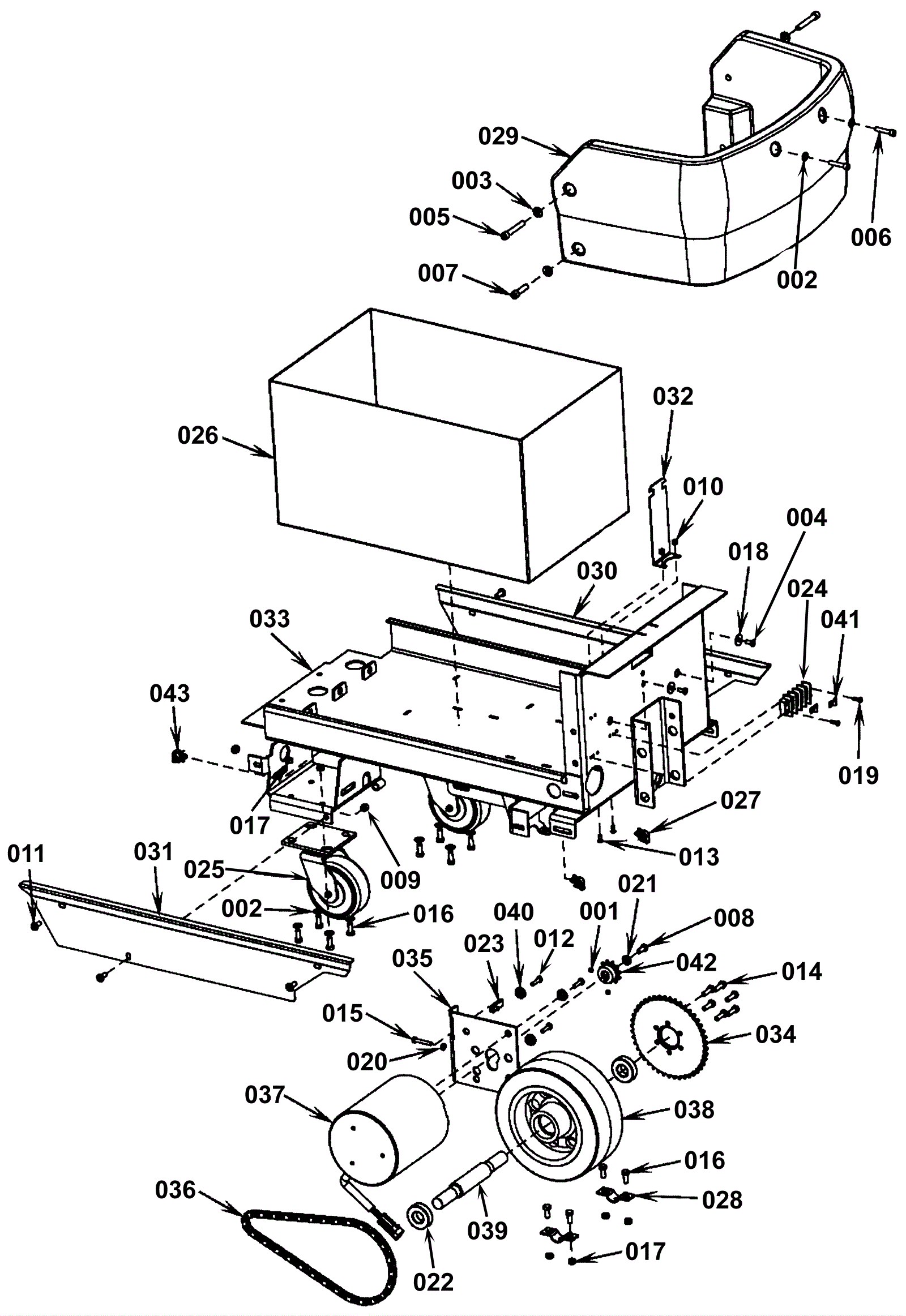

I-MAX 28C Chassis System

#PartDescriptionPriceReqNotesAvailability
001 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
002 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
003 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
004 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 2 ships same day
005 999-0873 Screw 3/8-16 x 2 1/2 socket head alloy plain finish $0.99 2 ships same day
006 999-0179 Screw 5/16-18 x 1 1/2 socket head alloy plain finish $0.99 2 ships same day
007 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
008 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 1 ships same day
009 999-0430 Nut 5/16-18 hex jam plain finish $0.99 6 ships same day
010 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
011 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 6 ships same day
012 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 3 ships same day
013 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
014 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 6 ships same day
015 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated $0.99 1 ships same day
016 999-0810 Screw 5/16-18 x 3/4 flat head slotted stainless steel $1.56 12 ships same day
017 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 12 ships same day
018 172-0553 Washer 17/64 x 1/16 flat $9.60 2 usually ships 16-41 days
019 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc $0.99 2 ships same day
020 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 ships same day
021 181-0015 Washer flat $8.20 1 usually ships 16-41 days
022 172-9411 Ball bearing $39.46 2 usually ships 16-41 days
023 172-2049 Nut 1/4- 20 $10.90 1 usually ships 1-5 days
024 172-2030 Terminal block with (4) 50amp terminals (OBSOLETE) $24.16 1 usually ships 1-5 days
025 172-8073 Caster wheel $127.94 2 usually ships 16-41 days
026 172-1882 Battery box (OBSOLETE) $292.02 1 usually ships 1-5 days
027 172-1793 Clip $10.90 2 usually ships 1-5 days
028 272-1342 Axle clamp $20.22 2 usually ships 1-5 days
029 172-1883 Front panel (OBSOLETE) $516.53 1 usually ships 1-5 days
030 172-1885 Left panel (OBSOLETE) $43.00 1 usually ships 1-5 days
031 172-1886 Right panel (OBSOLETE) $39.50 1 usually ships 1-5 days
032 172-1887 Vac hose bracket (OBSOLETE) $30.90 1 usually ships 1-5 days
033 172-1888 Upper chassis weldment (OBSOLETE) $882.90 1 usually ships 16-41 days
034 272-1345 Sprocket $194.10 1 ships same day
035 172-1786 Tension bracket (OBSOLETE) $25.30 1 usually ships 16-41 days
036a 991-0101 Chain (sold by the link) $0.50 64 ships same day
036b 991-0103 Master link $1.70 1 ships same day
037a 172-1889 Motor 24V DC 1/2hp $989.86 1 usually ships 1-5 days
037b 172-2056 Carbon brush (pkg of 4) $203.49 4 usually ships 16-41 days
038 172-1788 Wheel 10 x 4 (OBSOLETE) $550.40 1 usually ships 16-41 days
039 172-1789 Axle $28.37 1 ships same day
040 172-2065 Bushing $18.60 3 usually ships 1-5 days
041 172-2184 Jumper plate (OBSOLETE) $7.78 2 usually ships 16-41 days
042 172-2066 Sprocket with keyway $35.48 1 usually ships 1-5 days
043 172-1793 Clip $10.90 2 usually ships 1-5 days
KIT 172-1795 Parking brake kit (OBSOLETE) $250.56 1 usually ships 1-5 days
KIT 172-1890 Brush click off 24V kit (OBSOLETE) $156.28 1 usually ships 1-5 days
KIT 172-1891 Industrial bumper 28st kit (OBSOLETE) $414.72 1 usually ships 1-5 days
