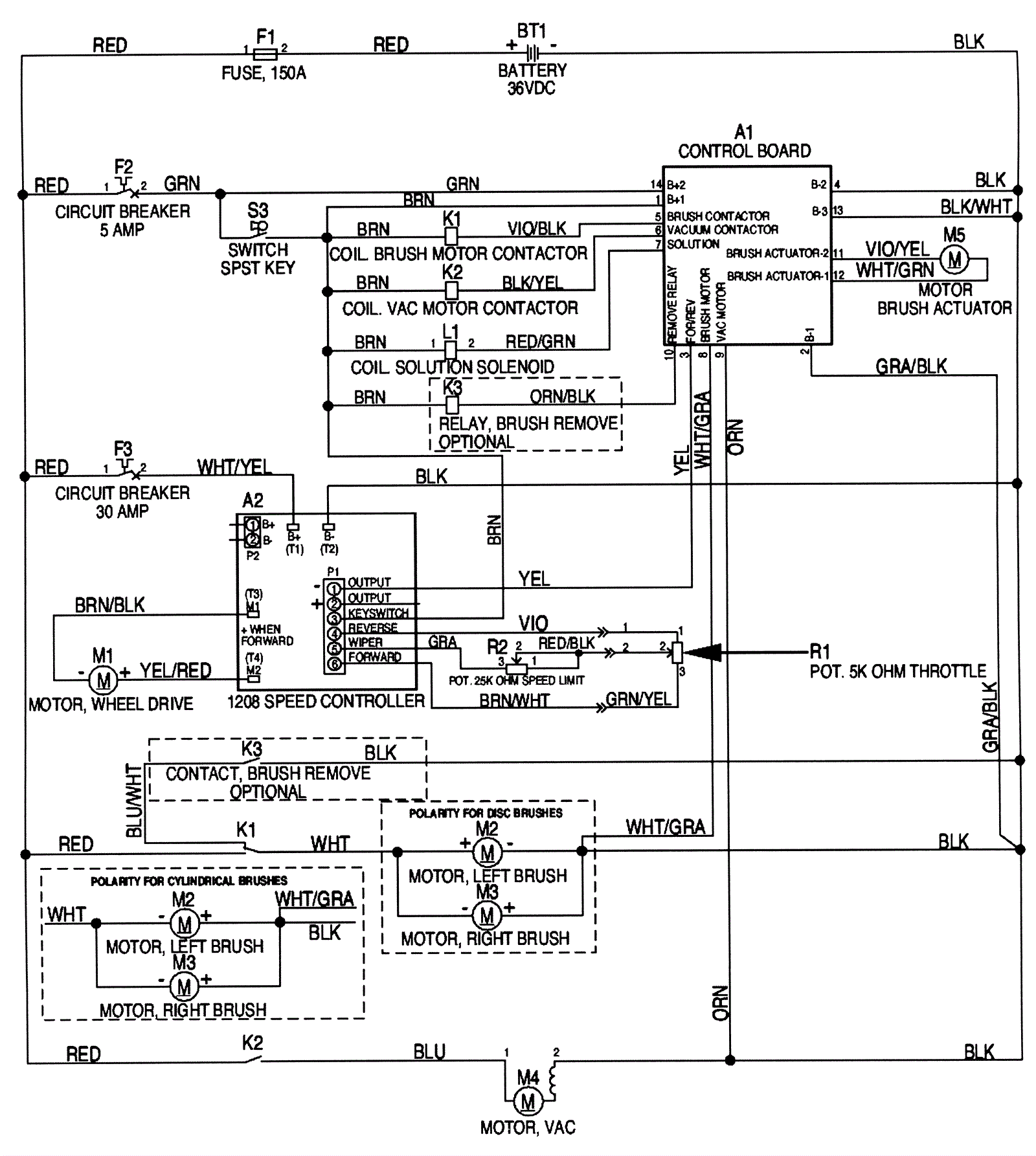

| # | Part | Description | Price | Req | Notes | Availability |
|---|
BT1a |
162-0003
|
6V 225Ah wet battery (SNSR) |
$269.50
|
6 |
|
ships same day |
BT1b |
162-0005
|
6V 305Ah wet battery (SNSR) |
$412.50
|
6 |
|
ships same day |
BT1a |
162-0043
|
6V 224Ah AGM battery (Group GC2) |
$456.50
|
6 |
|
ships same day |
BT1a |
162-0046
|
6V 335Ah AGM battery (Group J305) |
$654.50
|
6 |
|
ships same day |
BT1b |
162-0046
|
6V 335Ah AGM battery (Group J305) |
$654.50
|
6 |
|
ships same day |
A1 |
272-2030
|
Control PCB panel assembly (OBSOLETE) |
$939.38
|
1 |
|
usually ships 17-28 days |
A2 |
272-2585
|
36V Curtis speed control |
$981.13
|
1 |
|
usually ships 17-28 days |
F1a |
172-8836
|
150amp fuse |
$19.67
|
1 |
|
usually ships 17-28 days |
F1b |
991-3061
|
150amp fuse |
$48.06
|
1 |
|
ships same day |
F2 |
172-0228
|
5amp circuit breaker (OBSOLETE) |
$79.20
|
1 |
(controls) |
usually ships 17-28 days |
F3 |
181-0624
|
30amp circuit breaker |
$38.07
|
1 |
(drive wheel) |
usually ships 1-5 days |
K1a |
172-2805
|
36V contactor |
$100.10
|
1 |
(brush motor) |
ships same day |
K1b |
272-1322
|
Motor contactor |
$222.53
|
1 |
(for brush removal option) |
usually ships 17-28 days |
K2 |
172-2805
|
36V contactor |
$100.10
|
1 |
(vacuum motor) |
ships same day |
K3 |
172-1779
|
36V relay SPST |
$78.58
|
1 |
(for brush removal option) |
usually ships 17-28 days |
L1 |
272-2586
|
36V solenoid valve |
$176.52
|
1 |
|
usually ships 1-5 days |
M1 |
172-1785
|
36V 1/2HP drive motor |
$1,590.05
|
1 |
(drive wheel) |
usually ships 1-5 days |
M2a |
181-0111
|
36V brush gear motor assembly (OBSOLETE) |
$1,789.15
|
1 |
(left brush) (OEM) |
usually ships 1-5 days |
M2b |
991-2122
|
36V .75HP brush motor assembly with gear box |
$1,099.40
|
1 |
(NON-OEM) (you will also need to order 999-0130) |
ships same day |
M2c |
999-0130
|
Screw 5/16-18 x 3/4 socket head alloy plain finish |
$0.99
|
1 |
(for NON-OEM brush motor) |
ships same day |
M3a |
181-0111
|
36V brush gear motor assembly (OBSOLETE) |
$1,789.15
|
2 |
(right brush - CYLINDRICAL) (OEM) |
usually ships 1-5 days |
M3b |
991-2122
|
36V .75HP brush motor assembly with gear box |
$1,099.40
|
1 |
(NON-OEM) (you will also need to order 999-0130) |
ships same day |
M3c |
999-0130
|
Screw 5/16-18 x 3/4 socket head alloy plain finish |
$0.99
|
1 |
(for NON-OEM brush motor) |
ships same day |
M4a |
272-9272
|
36V 3 stage vacuum motor |
$298.77
|
1 |
(Nilfisk-Advance) |
usually ships 17-28 days |
M4b |
991-1237
|
36V 3 stage vacuum motor bypass dual ball tangential |
$337.44
|
1 |
(without plastic) (Ametek-Lamb) |
usually ships 14-21 days |
M4c |
991-1221
|
Carbon brush without plastic cover (pkg of 2) |
$14.85
|
1 |
|
usually ships 10-16 days |
M5a |
172-8921
|
Actuator |
$551.66
|
1 |
(brush lift) |
usually ships 17-28 days |
M5b |
N/A
|
Not available |
Call for price
|
2 |
(Replacement limit switch) |
usually ships 3-26 days |
R1 |
172-2039
|
5K potentiometer |
$63.07
|
1 |
(throttle) |
ships same day |
R2 |
991-9023
|
25K Potentiometer |
$23.14
|
1 |
(speed limit) |
ships same day |
S3 |
172-1761
|
Toggle switch SPST |
$19.65
|
1 |
(main power) |
usually ships 17-28 days |
N/S |
172-1772
|
Handle harness |
$110.99
|
1 |
|
usually ships 1-5 days |
N/S |
172-2164
|
Cable assembly - ring terminal type |
$58.62
|
1 |
|
usually ships 17-28 days |
N/S |
272-1435
|
Charger connector assembly - to batteries |
$192.01
|
1 |
(connects to batteries) |
ships same day |
N/S |
172-1813
|
Main harness |
$517.00
|
1 |
|
usually ships 17-28 days |
N/S |
272-1144
|
Cable assembly |
$29.23
|
4 |
(battery interconnect) |
usually ships 17-28 days |
N/S |
172-1812
|
Cable assembly |
$11.77
|
1 |
|
usually ships 1-5 days |
N/S |
172-1771
|
Connector assembly |
$69.71
|
1 |
(connects to machine) |
usually ships 17-28 days |
