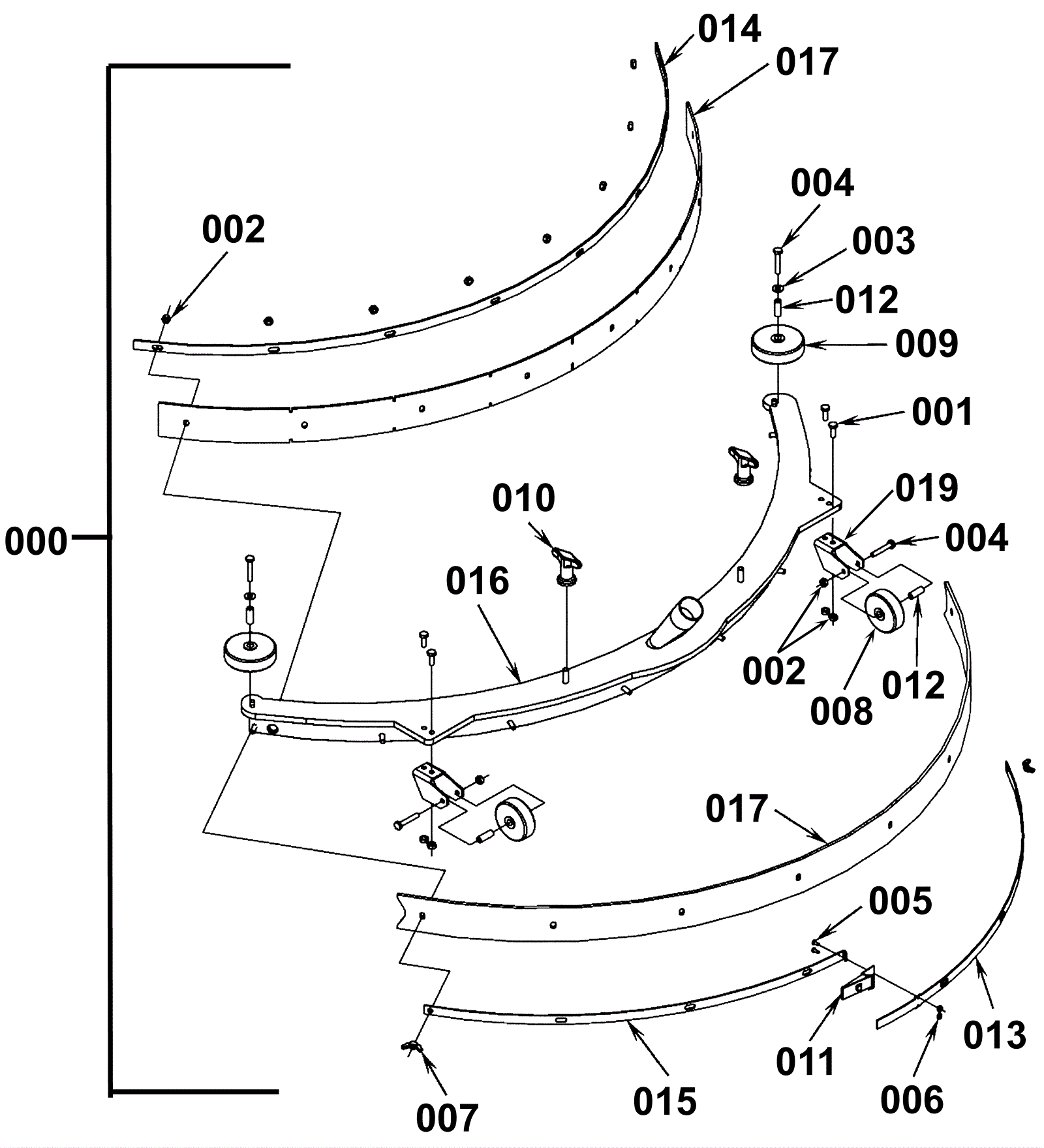

C-MAX34ST Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
000 272-1394 34 inch squeegee assembly $1,072.96 1 (includes 001 thru 019) usually ships 1-5 days
001 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
002 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 14 ships same day
003 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
004 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 4 ships same day
005 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
006 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
007 999-1948 Nut 1/4-20 wing lock $2.12 2 ships same day
008a 172-0045 Guide wheel $13.76 2 ships same day
008b 991-3051 Guide wheel $4.95 2 ships same day
009a 172-0083 3 inch guide wheel $13.76 2 ships same day
009b 991-3060 Bumper wheel $5.77 2 ships same day
009c 991-3030 Wheel $4.33 2 (NON-OEM) ships same day
010 172-4099 Nut 5/16-18 thumb $11.57 2 ships same day
011 172-0094 Latch $44.58 1 ships same day
012 172-0095 Bushing $36.32 4 usually ships 17-28 days
013 172-1775 Rear strap $50.06 1 usually ships 17-28 days
014 172-1776 Front strap $60.19 1 usually ships 1-5 days
015 172-1777 Rear strap $42.39 1 usually ships 1-5 days
016 172-1871 Squeegee tool weldment $824.07 1 usually ships 1-5 days
017a 172-8101 Squeegee blade 55 inch gum rubber rear (tan) (OBSOLETE) $48.82 1 usually ships 17-28 days
017b 172-8102 Squeegee blade front notched gum rubber 511/2 inch (OBSOLETE $39.30 1 usually ships 17-28 days
019 172-0093 Wheel bracket $46.00 2 usually ships 17-28 days
KIT 272-1389 Squeegee blade kit 55 1/2 inch gum rubber (pkg of 2) $113.42 1 usually ships 17-28 days
KIT 172-8100 Squeegee blade kit 55 1/2 rear and 51 inch gum rubbr (pkg 2) $55.56 1 (OEM) usually ships 17-28 days
KIT 994-0027 Squeegee blade kit 55 1/2 rear and 51 inch gum rubbr (pkg 2) $54.04 1 (NON-OEM) ships same day
