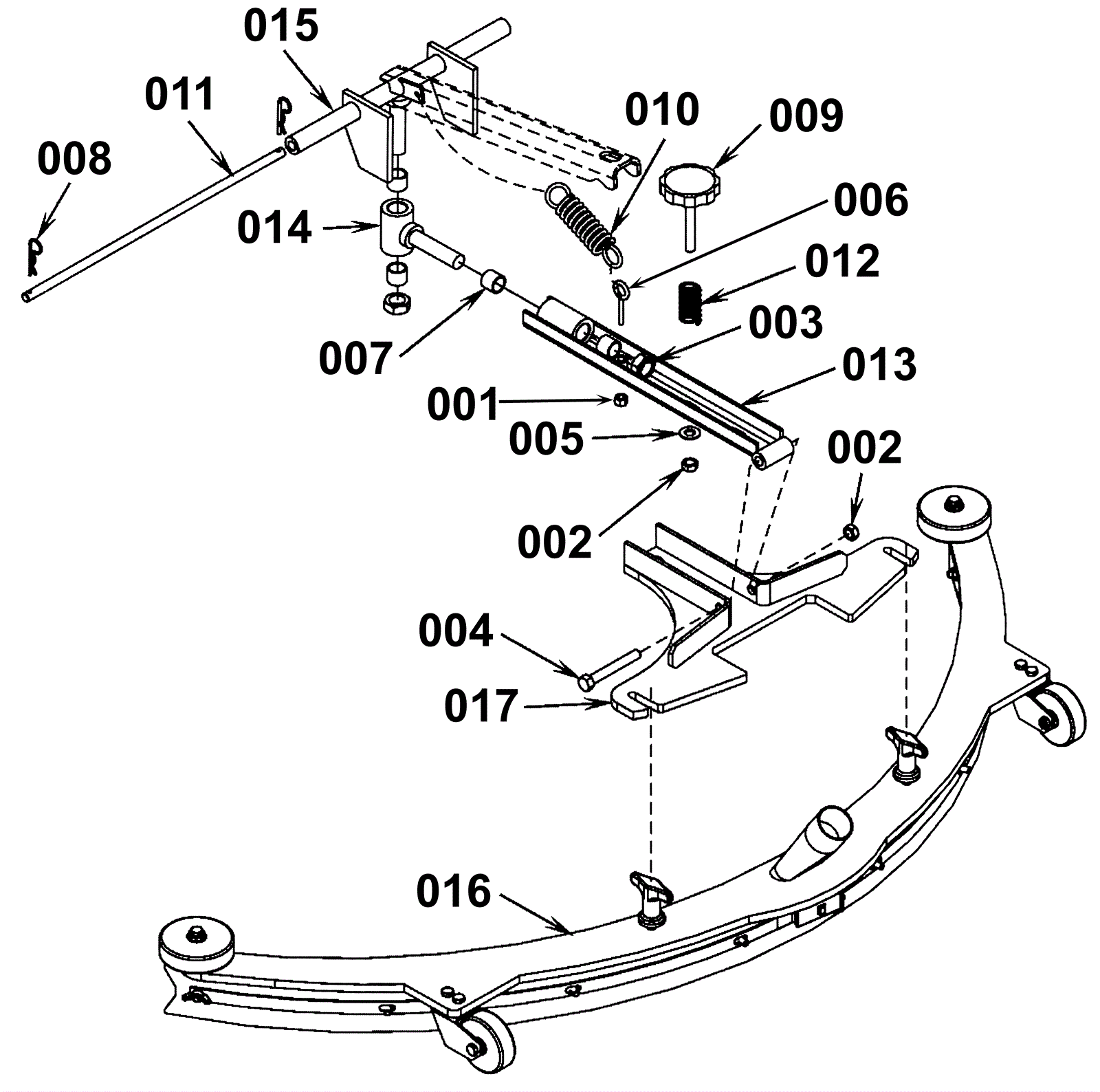

C-MAX34ST Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
002 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
003 999-0704 Nut 5/8-11 nylon insert lock stainless steel $3.65 2 ships same day
004 999-0686 Bolt 3/8-16 x 2 3/4 hex head stainless steel $2.55 1 ships same day
005 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
006 172-0547 Bolt 1/4-20 x 1 3/8 eye $10.52 1 usually ships 1-5 days
007 172-0107 Sleeve bearing $13.22 4 usually ships 1-5 days
008 997-2511 Cotter pin $0.99 2 ships same day
009 272-1425 Adjustment knob assembly $70.50 1 ships same day
010 181-0142 Extension spring $24.60 1 usually ships 17-28 days
011 181-0046 Shaft stainless steel $22.24 1 usually ships 1-5 days
012 181-0168 Compression spring $13.07 1 usually ships 17-28 days
013 272-1429 Squeegee bar weldment $170.42 1 usually ships 1-5 days
014 272-1430 Squeegee pivot weldment $103.87 1 (also order reference 003 and 007 for complete assembly) usually ships 1-5 days
015 172-2366 Squeegee lift $307.86 1 usually ships 17-28 days
016 272-1394 34 inch squeegee assembly $1,072.96 1 usually ships 1-5 days
017 272-1393 Mounting plate weldment $320.21 1 usually ships 1-5 days
