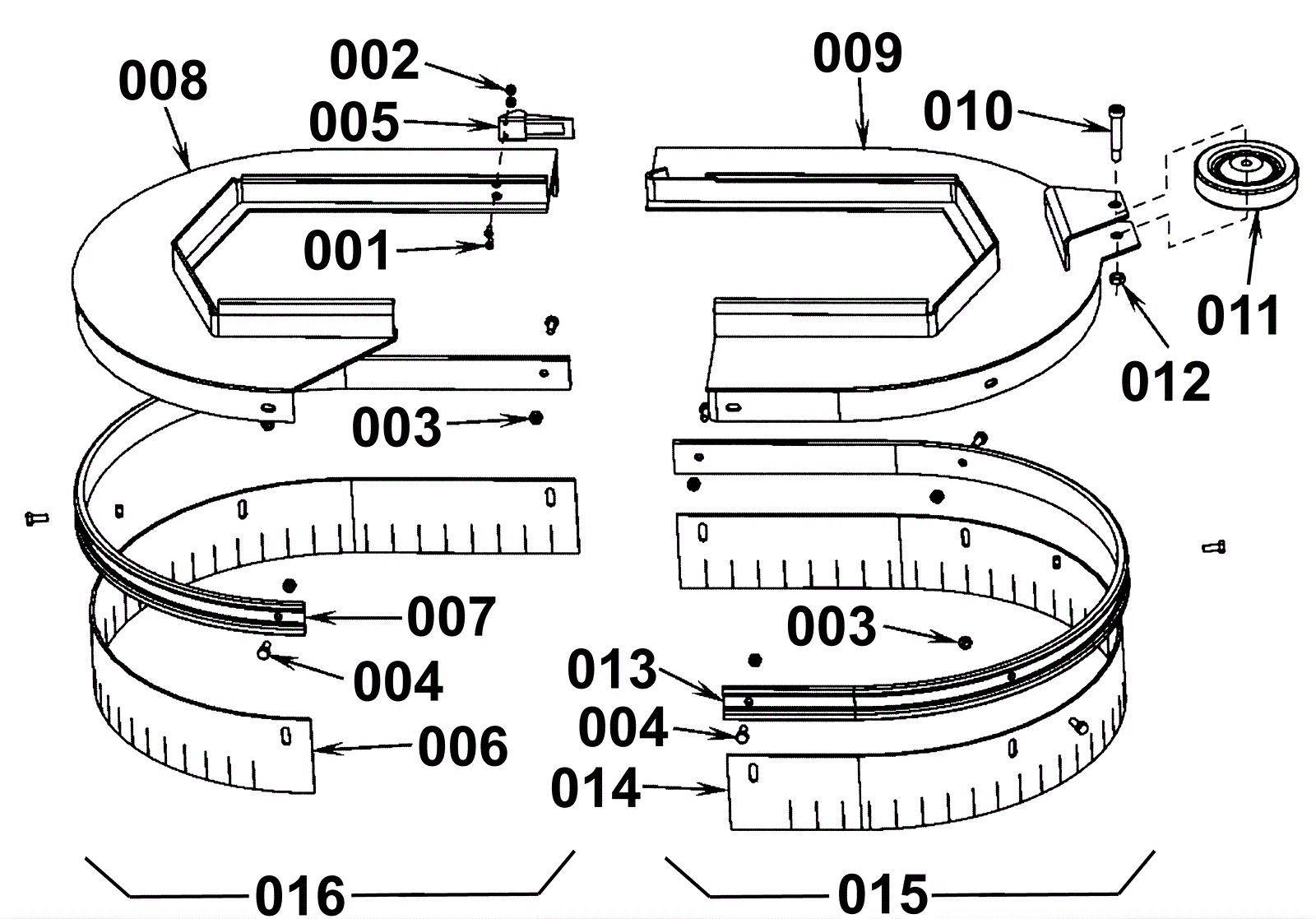

C-MAX34ST Scrub Skirt Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
001 999-0618 Screw 3/8-16 x 1 1/4 socket head stainless steel $2.64 2 ships same day
002 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
003 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 9 usually ships 12-18 days
004 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 9 ships same day
005 172-0094 Latch $44.58 1 ships same day
006 172-1773 Squeegee blade left $31.05 1 usually ships 17-28 days
007 172-1844 Left channel $64.64 1 usually ships 1-5 days
008 172-1845 Left brush cover weldment (OBSOLETE) $263.45 1 usually ships 1-5 days
009 172-1846 Right brush cover weldment $368.50 1 usually ships 1-5 days
010 999-1367 Bolt 3/8 x 1 1/2 x 5/16-18 socket head shoulder SS $16.12 1 ships same day
011 172-3010 Wheel $53.55 1 usually ships 17-28 days
012 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated $0.99 1 ships same day
013 172-1848 Right channel $67.11 1 usually ships 1-5 days
014 172-1774 Squeegee blade right $29.16 1 usually ships 17-28 days
015 172-1843 Right brush guard assembly $366.96 1 (includes 003, 004 and 009 thru 014) usually ships 1-5 days
016 172-1842 Left brush guard assembly $737.00 1 (includes 001 thru 008) usually ships 1-5 days
