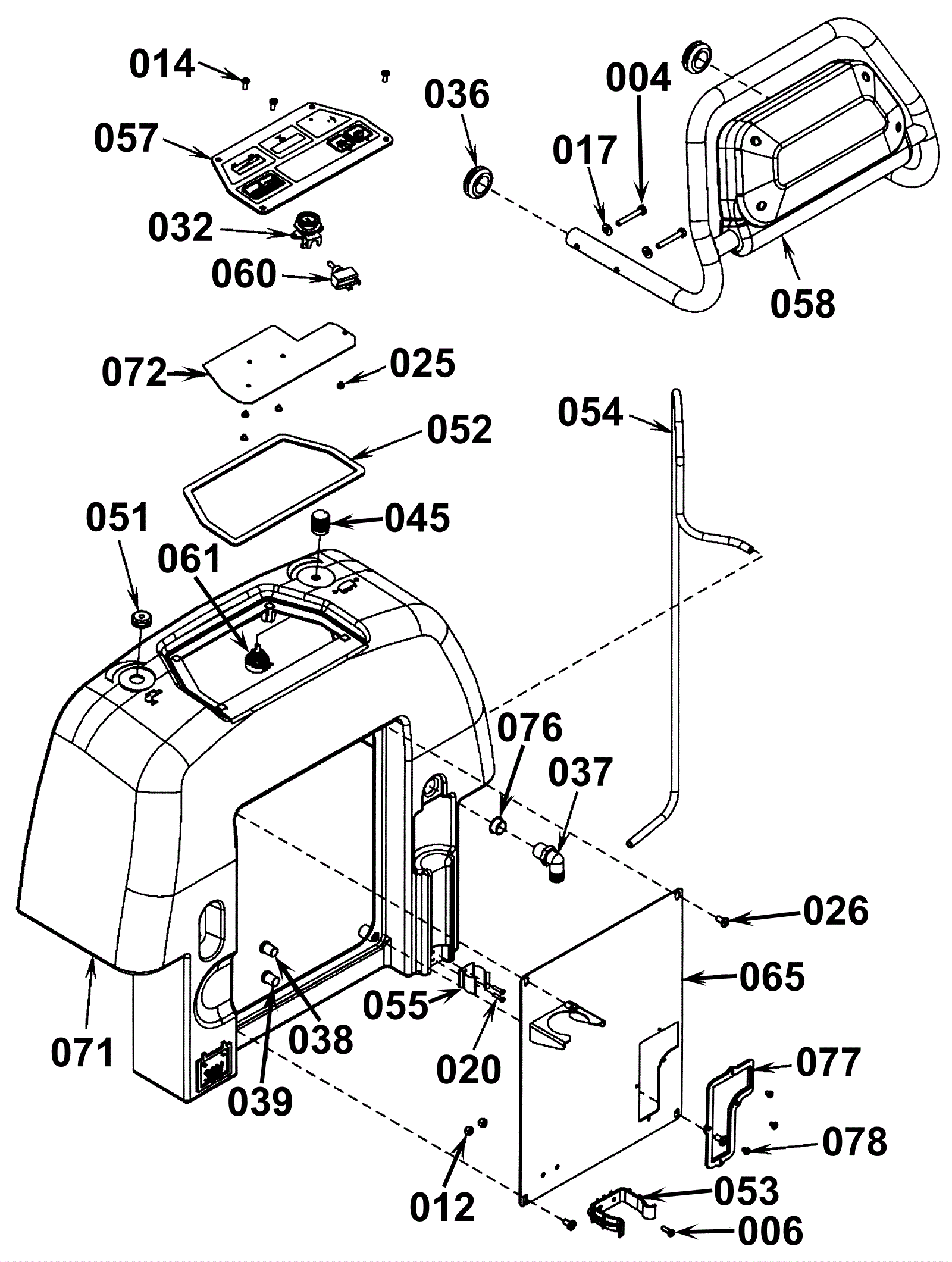

C-MAX34ST Control and Electrical Assembly -1

#PartDescriptionPriceReqNotesAvailability
004 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
006 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
014 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 4 ships same day
017 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
020 999-1362 Screw 6-18 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
025 999-1272 Screw 8-32 x 3/16 pan head phillips stainless steel $0.99 4 ships same day
026 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 4 ships same day
032a 172-2161 Key switch with key and bracket $215.00 1 usually ships 17-28 days
032b 172-0451 Replacement key $38.40 1 usually ships 17-28 days
036 272-1310 Grommet (OBSOLETE) $8.14 2 usually ships 1-5 days
037 172-2322 90 degree elbow barb 3/4 x 3/8 $26.04 1 usually ships 17-28 days
038 172-0231 Reset button boot $49.63 1 usually ships 17-28 days
039 172-0232 Clear boot cap $34.87 1 usually ships 17-28 days
045 172-2169 Knob (OBSOLETE) $68.46 1 usually ships 17-28 days
051 272-1313 Grommet $8.03 1 usually ships 1-5 days
052 272-1314 Gasket $11.75 1 usually ships 17-28 days
053 272-1317 Plastic clamp $26.04 1 ships same day
054 272-1318 PVC hose (OBSOLETE) $7.48 1 usually ships 1-5 days
055 172-1799 Spring clip $8.56 1 usually ships 17-28 days
057 272-2029 Display panel assembly (OBSOLETE) $364.22 1 usually ships 17-28 days
058 172-1800 Handle assembly $939.38 1 usually ships 1-5 days
060 172-1761 Toggle switch SPST $19.65 1 (main toggle switch) usually ships 17-28 days
061 991-9023 25K Potentiometer $23.14 1 ships same day
065 172-1801 Rear panel weldment (OBSOLETE) $40.39 1 usually ships 1-5 days
071 172-1802 Rear cover (OBSOLETE) $711.68 1 usually ships 1-5 days
072 272-2030 Control PCB panel assembly (OBSOLETE) $939.38 1 usually ships 17-28 days
076 172-1803 Plug $12.31 1 usually ships 1-5 days
077 172-1804 Plastic wear strip (OBSOLETE) $118.06 1 usually ships 1-5 days
078 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling $0.99 4 ships same day
