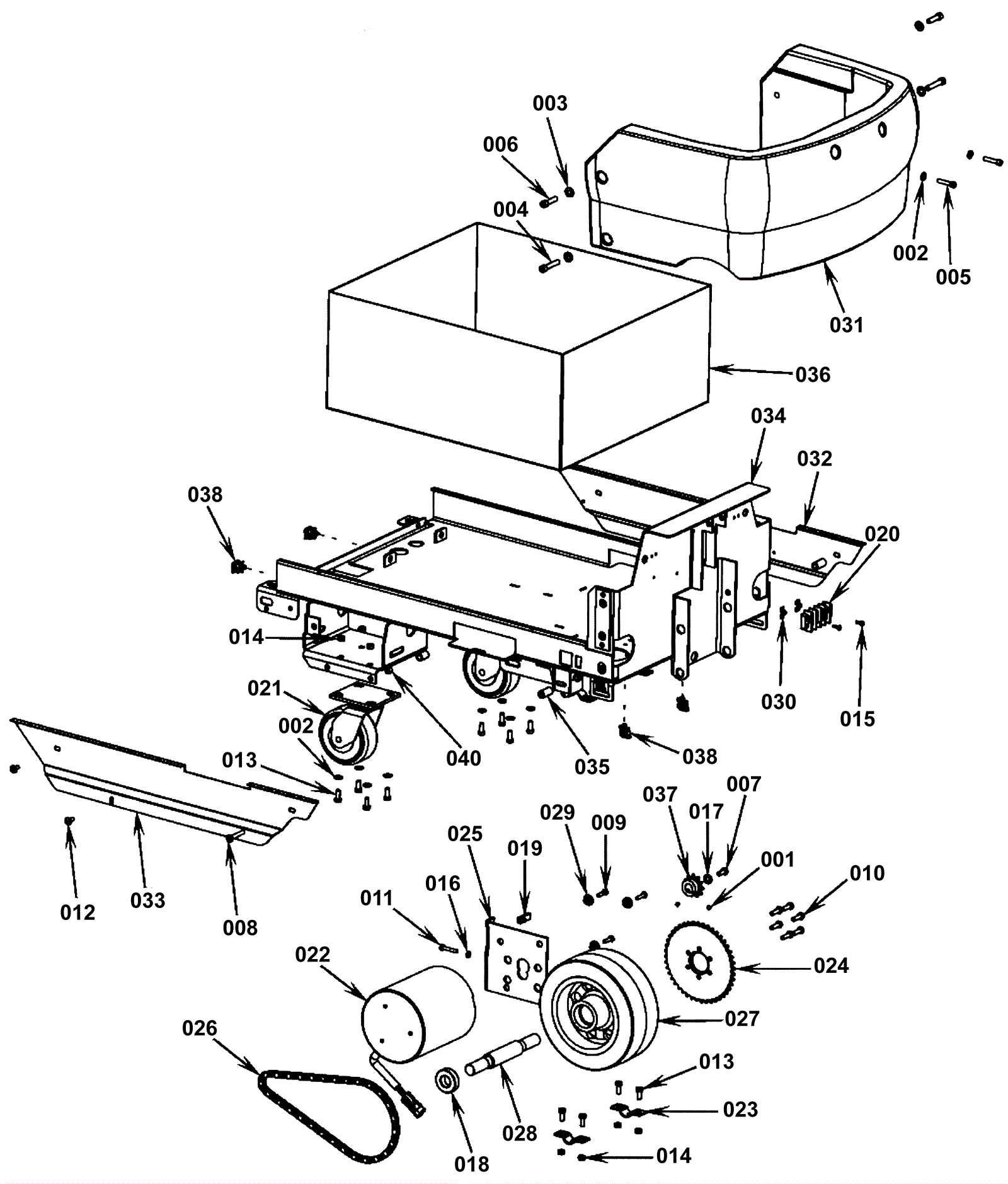

C-MAX34ST Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
002 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 10 ships same day
003 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
004 999-0505 Screw 3/8-16 x 2 flat head socket zinc plated $1.41 2 ships same day
005 999-0179 Screw 5/16-18 x 1 1/2 socket head alloy plain finish $0.99 2 ships same day
006 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
007 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $2.64 1 ships same day
008 999-0354 Screw 5/16-18 x 2 round head slotted zinc plated $0.99 2 ships same day
009 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 3 ships same day
010 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 6 ships same day
011 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated $0.99 1 ships same day
012 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated $0.99 4 ships same day
013 999-0810 Screw 5/16-18 x 3/4 flat head slotted stainless steel $1.56 12 ships same day
014 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 12 ships same day
015 999-0193 Screw 10-24 x 5/8 pan head slotted thread cutting zinc $0.99 2 ships same day
016 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 ships same day
017 181-0015 Washer flat $9.26 1 usually ships 17-28 days
018 172-9411 Ball bearing $44.58 2 ships same day
019 172-2049 Nut 1/4- 20 $12.31 1 usually ships 1-5 days
020 172-2030 Terminal block with (4) 50amp terminals (OBSOLETE) $26.58 1 usually ships 1-5 days
021 172-8073 Caster wheel $144.53 2 usually ships 17-28 days
022a 172-1785 36V 1/2HP drive motor $1,590.05 1 usually ships 1-5 days
022b 164-0325 Carbon brush with lead and terminal (sold individually) $17.52 4 ships same day
023 272-1342 Axle clamp $22.24 2 usually ships 1-5 days
024 272-1345 Sprocket $213.51 1 ships same day
025 172-1786 Tension bracket (OBSOLETE) $27.83 1 usually ships 17-28 days
026a 991-0101 Chain (sold by the link) $0.55 70 usually ships 4-8 days
026b 991-0103 Master link $1.87 1 ships same day
027 172-1788 Wheel 10 x 4 (OBSOLETE) $605.44 1 usually ships 17-28 days
028 172-1789 Axle $124.82 1 usually ships 17-28 days
029 172-2065 Bushing $20.46 3 usually ships 1-5 days
030 172-2184 Jumper plate (OBSOLETE) $8.56 2 usually ships 17-28 days
031 272-1364 Front cover (OBSOLETE) $743.05 1 usually ships 1-5 days
032 272-1365 Left side skirt (OBSOLETE) $47.22 1 usually ships 1-5 days
033 272-1366 Right side skirt (OBSOLETE) $36.39 1 usually ships 17-28 days
034 172-1790 Upper chassis weldment (OBSOLETE) $1,051.97 1 usually ships 1-5 days
035 172-1791 Aluminum spacer (OBSOLETE) $10.89 2 usually ships 1-5 days
036 172-1792 Battery box (OBSOLETE) $727.77 1 usually ships 1-5 days
037 172-2066 Sprocket with keyway $40.08 1 usually ships 1-5 days
038 172-1793 Clip $12.31 2 usually ships 1-5 days
040 999-0430 Nut 5/16-18 hex jam plain finish $0.99 4 ships same day
N/S 172-0442 Square keyway $11.69 1 usually ships 1-5 days
N/S 272-8010 Actuator wire kit (OBSOLETE) $42.24 1 usually ships 17-28 days
