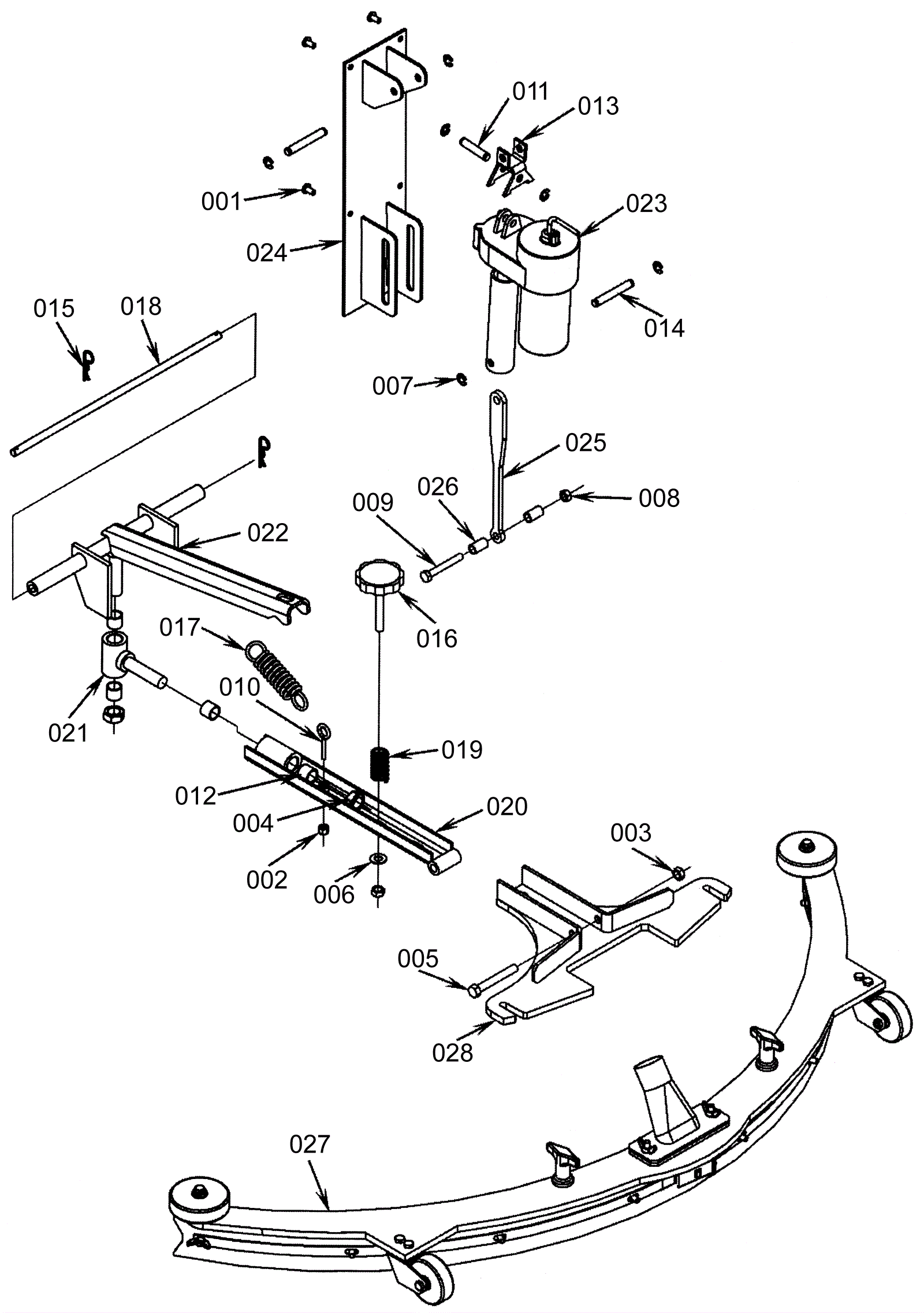

CONVERTAMAX 34 Squeegee System after S/N 1477841

#PartDescriptionPriceReqNotesAvailability
001 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 4 ships same day
002 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
003 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
004 999-0704 Nut 5/8-11 nylon insert lock stainless steel $3.65 2 ships same day
005 999-0686 Bolt 3/8-16 x 2 3/4 hex head stainless steel $2.55 1 ships same day
006 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
007 172-4033 3/8 inch retaining ring $9.60 6 usually ships 16-41 days
008 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
009 999-1368 Screw M8-1.25 x 60mm hex head stainless steel $3.41 1 ships same day
010 172-0547 Bolt 1/4-20 x 1 3/8 eye $9.56 1 usually ships 1-5 days
011 172-8918 Pin $27.53 1 usually ships 16-41 days
012 172-0107 Sleeve bearing $12.02 4 usually ships 1-5 days
013 172-2364 Gear motor yoke (OBSOLETE) $74.98 1 usually ships 1-5 days
014 172-2365 Pin $40.72 2 usually ships 1-5 days
015 997-2511 Cotter pin $0.99 2 ships same day
016 272-1425 Adjustment knob assembly $64.09 1 ships same day
017 181-0142 Extension spring $21.77 1 usually ships 16-41 days
018 181-0046 Shaft stainless steel $20.22 1 usually ships 1-5 days
019 181-0168 Compression spring $11.88 1 usually ships 16-41 days
020 272-1429 Squeegee bar weldment $154.93 1 usually ships 1-5 days
021 272-1430 Squeegee pivot weldment $94.43 1 usually ships 1-5 days
022 172-2366 Squeegee lift $69.97 1 ships same day
023 272-1421 36V motor actuator $596.69 1 usually ships 16-41 days
024 272-1422 Actuator mount weldment (OBSOLETE) $132.84 1 usually ships 1-5 days
025 272-1423 Link (OBSOLETE) $37.80 1 usually ships 1-5 days
026 272-1424 Spacer (OBSOLETE) $7.98 2 usually ships 1-5 days
027a 272-1394 34 inch squeegee assembly $975.42 1 usually ships 1-5 days
027b 272-1395 Squeegee assembly 34 inch (OBSOLETE) $814.25 1 usually ships 1-5 days
028 272-1393 Mounting plate weldment $291.10 1 usually ships 1-5 days
