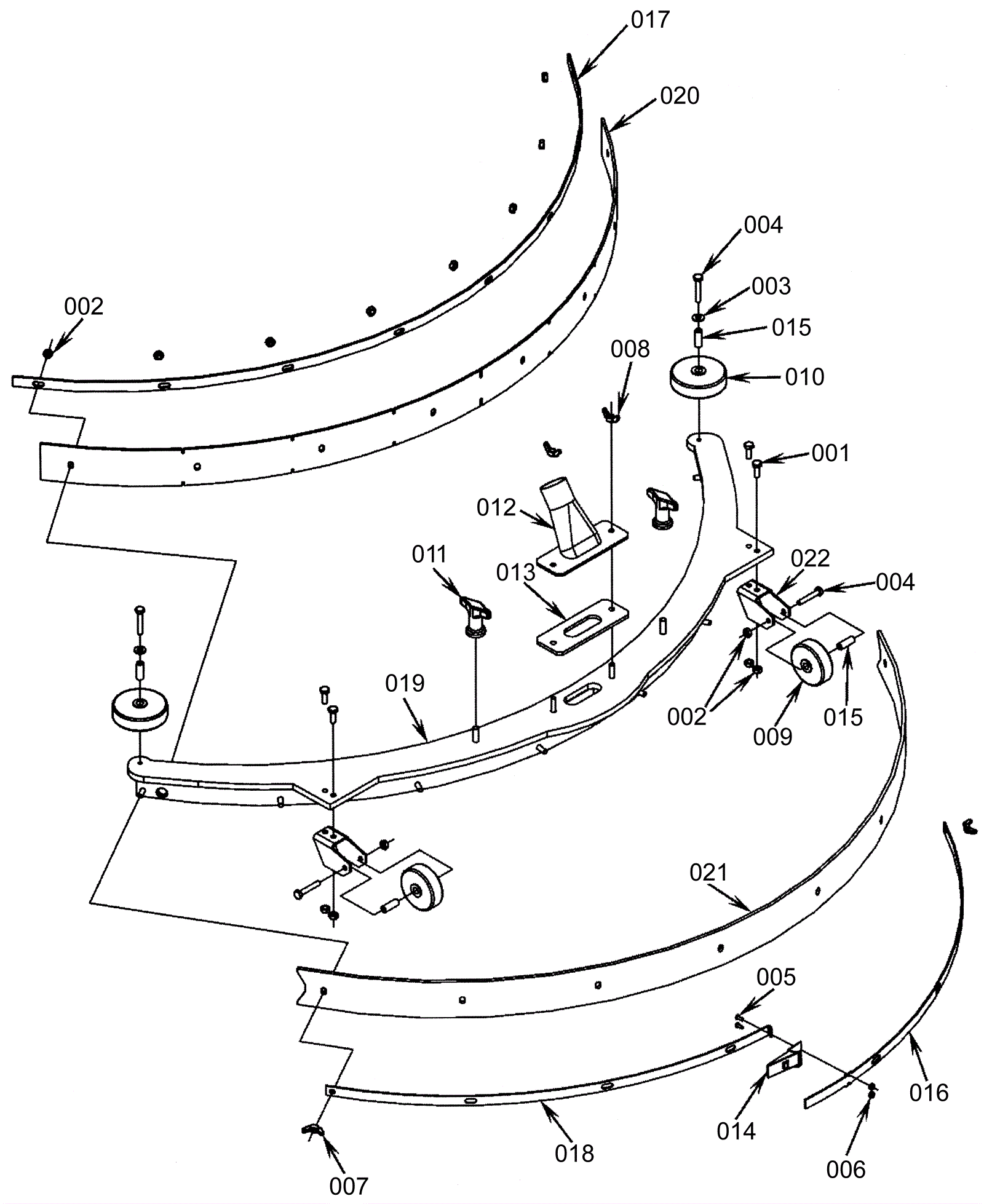

CONVERTAMAX 34 Squeegee Assembly after S/N 1477841

#PartDescriptionPriceReqNotesAvailability
001 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 usually ships 12-18 days
002 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 14 ships same day
003 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
004 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 4 ships same day
005 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
006 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 2 ships same day
007 999-0306 Nut 1/4-20 wing zinc plated $0.99 2 ships same day
008 999-0603 Nut 1/4-20 wing stainless steel $7.33 2 ships same day
009a 172-0045 Guide wheel $13.76 2 ships same day
009b 991-3051 Guide wheel $4.95 2 ships same day
010a 172-0083 3 inch guide wheel $13.76 2 ships same day
010b 991-3060 Bumper wheel $5.77 2 ships same day
010c 991-3030 Wheel $5.77 2 (NON-OEM) ships same day
011 172-4099 Nut 5/16-18 thumb $11.57 2 ships same day
012 172-0625 Tube weldment $116.55 1 usually ships 17-28 days
013 172-8081 Gasket $18.39 1 usually ships 17-28 days
014 172-0094 Latch $44.58 1 ships same day
015 172-0095 Bushing $36.32 4 usually ships 17-28 days
016 172-1775 Rear strap $50.06 1 usually ships 17-28 days
017 172-1776 Front strap $60.19 1 usually ships 1-5 days
018 172-1777 Rear strap (OBSOLETE) $42.39 1 usually ships 1-5 days
019 172-2367 Screw M8-1.25 x 20mm flat head $10.01 1 usually ships 1-5 days
020a 172-8102 Squeegee blade front notched gum rubber 511/2 inch (OBSOLETE $39.30 1 usually ships 17-28 days
020b 272-1388 Front gum rubber squeegee blade for tile floors (OBSOLETE) $38.72 1 usually ships 1-5 days
021a 172-8101 Squeegee blade 55 inch gum rubber rear (tan) (OBSOLETE) $48.82 1 usually ships 17-28 days
021b 272-1389 Squeegee blade kit 55 1/2 inch gum rubber (pkg of 2) $113.42 1 usually ships 17-28 days
022 172-0093 Wheel bracket $46.00 2 usually ships 17-28 days
KIT 172-1778 Squeegee blade kit oil resistant neoprene (OBSOLETE) $92.22 1 usually ships 17-28 days
KIT 172-8100 Squeegee blade kit 55 1/2 rear and 51 inch gum rubbr (pkg 2) $55.56 1 (OEM) usually ships 17-28 days
KIT 994-0027 Squeegee blade kit 55 1/2 rear and 51 inch gum rubbr (pkg 2) $54.04 1 (NON-OEM) usually ships 13-16 days
N/S 172-2368 Wheel with hub $183.90 1 usually ships 1-5 days
