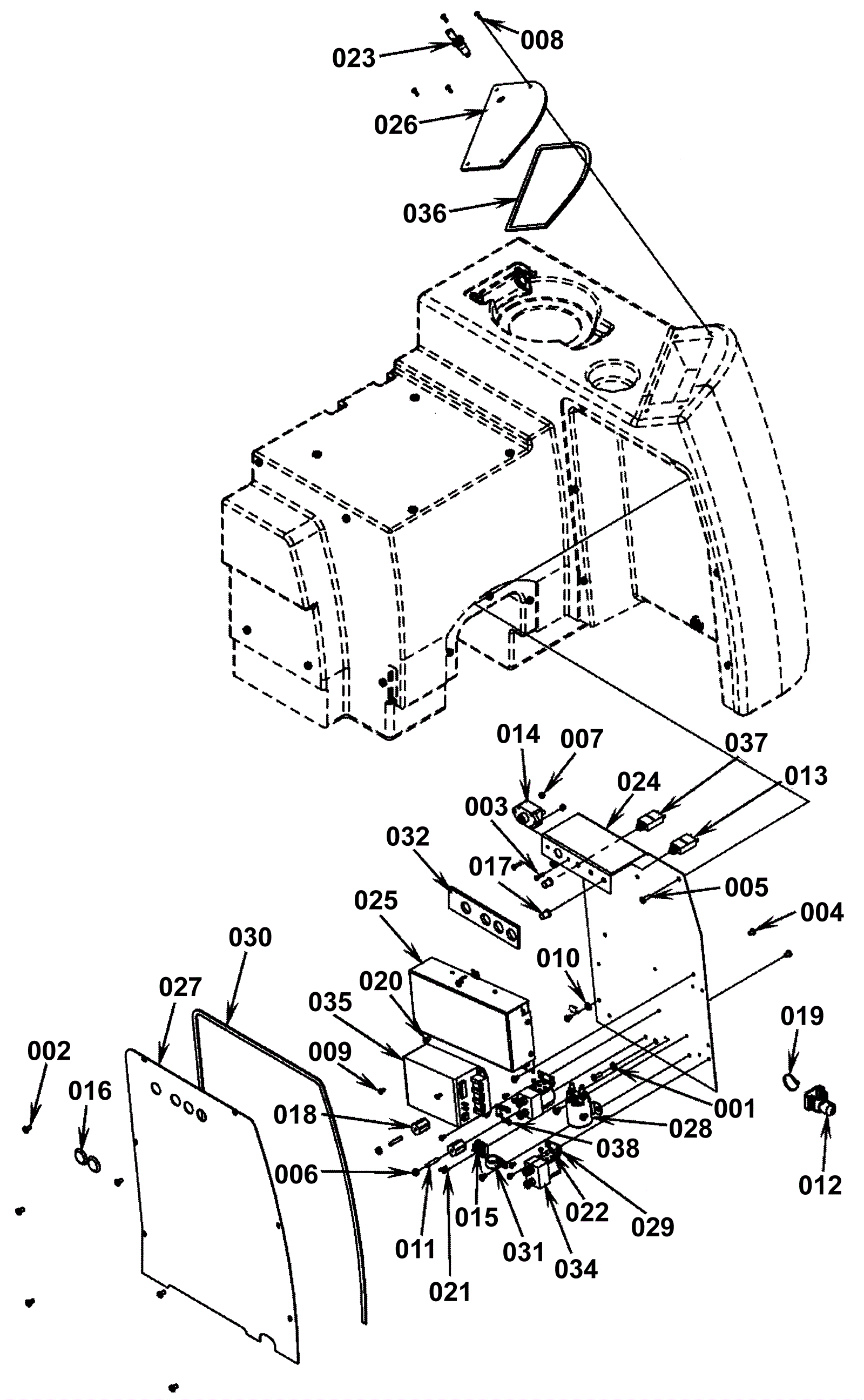

HYDRO 3800B-DISK Electrical System

#PartDescriptionPriceReqNotesAvailability
001 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
002 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 6 ships same day
003 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
004 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 2 ships same day
005 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 3 ships same day
006 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 ships same day
007 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
008 999-0267 Screw 10-24 x 1/2 pan head phillips zinc $0.99 4 ships same day
009 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 7 ships same day
010 999-0238 Washer 1/4 internal star lock zinc plated $0.99 1 ships same day
011 172-0346 Stud 1/4-20 $12.31 2 ships same day
012 172-0223 Battery cable boot $9.26 12 ships same day
013 172-2160 10amp circuit breaker $77.12 1 usually ships 16-41 days
014 172-9573 80 Amp circuit breaker (brush motor) $291.50 1 usually ships 1-5 days
015 172-9259 Diode $30.13 1 usually ships 1-5 days
016 172-1145 Plug button 1.00 (OBSOLETE) $8.78 2 usually ships 1-5 days
017 172-0231 Reset button boot $49.63 1 usually ships 16-41 days
018 172-0103 Electrical mount $13.76 2 usually ships 1-5 days
019 997-2101 6 inch cable tie $0.99 12 ships same day
020 999-0722 Screw 1/4-20 x 3/8 pan head slotted thread cutting $0.99 7 ships same day
021 999-0455 Screw 4-40 x 5/8 pan head phillips zinc plated $0.99 2 ships same day
022 999-0777 Screw M4-.7 x 10mm hex head plain finish $0.99 4 ships same day
023 272-1316 Key switch assembly $199.52 1 usually ships 16-41 days
024a 172-1146 Electrical panel (OBSOLETE) $47.52 1 usually ships 1-5 days
024b 172-1147 Electrical panel (OBSOLETE) $178.86 1 usually ships 1-5 days
025 172-1148 Control assembly (OBSOLETE) $1,265.00 1 usually ships 1-5 days
026a 172-1149 Display panel assembly (OBSOLETE) $923.29 1 usually ships 1-5 days
026b 172-1150 Display panel assembly (OBSOLETE) $1,267.09 1 usually ships 1-5 days
027 172-1151 Panel (OBSOLETE) $176.01 1 usually ships 1-5 days
028 172-2805 36V contactor $100.10 1 ships same day
029 172-1152 Contactor bracket (OBSOLETE) $5.94 2 usually ships 1-5 days
030 172-1153 Electrical cover gasket (OBSOLETE) $7.65 1 usually ships 1-5 days
031 172-1154 P clamp $12.31 1 usually ships 1-5 days
032 172-1155 Gasket (OBSOLETE) $6.29 1 usually ships 1-5 days
033 172-1156 Main harness (OBSOLETE) $536.98 1 usually ships 1-5 days
034 172-1157 Contactor $395.73 2 usually ships 1-5 days
035 172-1158 Controller 36 Volt DC (OBSOLETE) $2,534.96 1 usually ships 1-5 days
036 172-1159 Gasket (OBSOLETE) $8.78 1 usually ships 1-5 days
037a 172-9572 15amp circuit breaker $77.12 1 usually ships 16-41 days
037b 991-8539 15amp circuit breaker $7.74 1 (NON-OEM) ships same day
038a 172-9265 250 Ohm Resistor $30.80 1 usually ships 1-5 days
038b 172-8828 Battery cable $48.18 10 ships same day
038c 172-1160 Main harness (OBSOLETE) $238.06 1 usually ships 1-5 days
038d 172-1161 Cable assembly (OBSOLETE) $47.91 1 usually ships 1-5 days
038e 172-1162 Cable assembly (OBSOLETE) $36.96 1 usually ships 1-5 days
038f 172-1163 Cable assembly (OBSOLETE) $33.77 1 usually ships 1-5 days
038g 172-1165 Cable assembly (OBSOLETE) $32.97 1 usually ships 1-5 days
038h 172-1166 Cable assembly (OBSOLETE) $34.79 1 usually ships 1-5 days
038i 172-1167 Cable assembly (OBSOLETE) $35.59 1 usually ships 1-5 days
038j 172-1168 Cable assembly (OBSOLETE) $28.74 1 usually ships 1-5 days
038k 172-1169 Cable assembly (OBSOLETE) $108.37 1 usually ships 1-5 days
038l 172-1170 Cable assembly (OBSOLETE) $207.31 1 usually ships 1-5 days
038m 172-1171 Ground cable (OBSOLETE) $27.49 1 usually ships 1-5 days
038n 172-8829 Battery terminal clamp $29.16 2 usually ships 1-5 days
