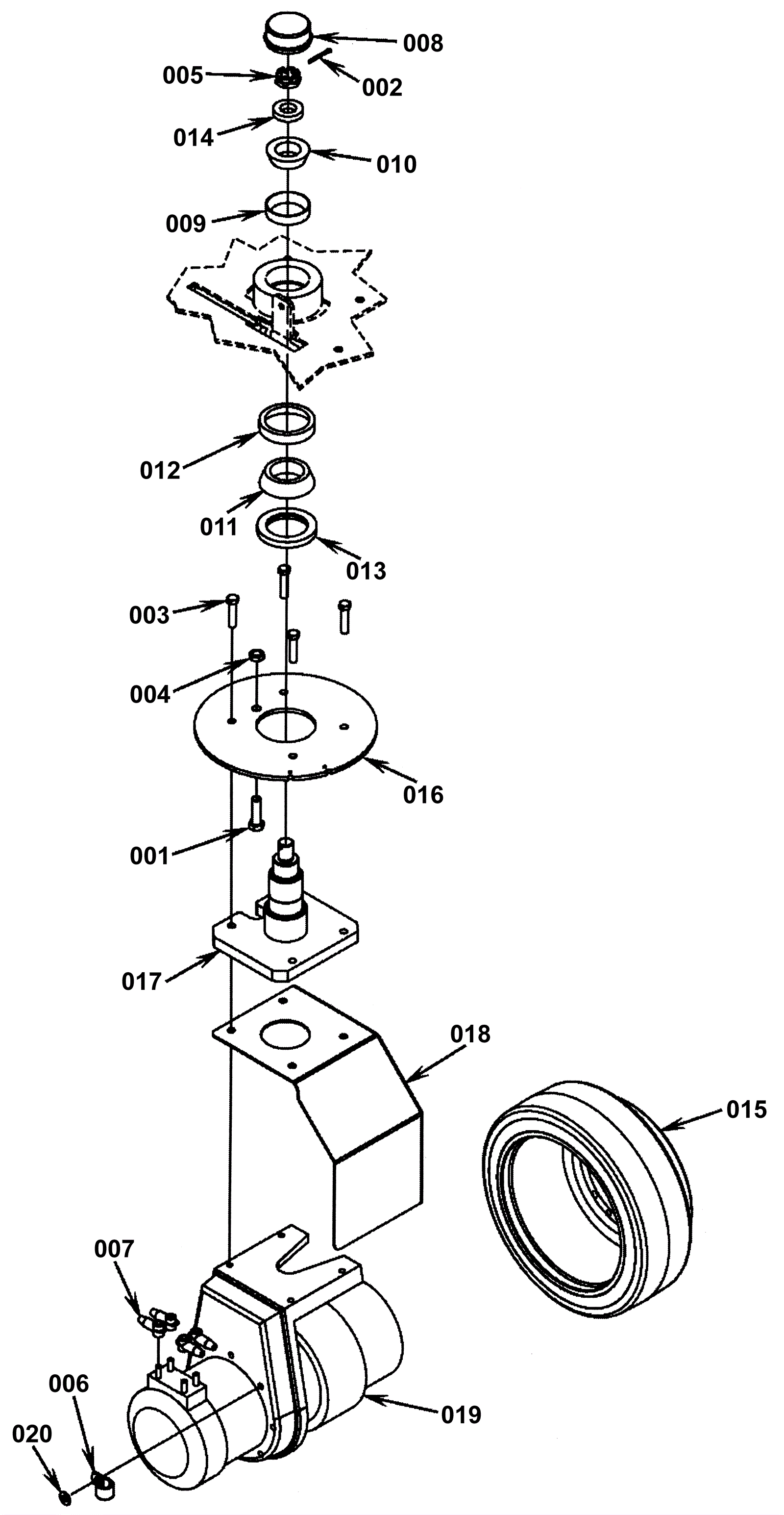

HYDRO 3800B-DISK Front Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 1 ships same day
002 172-9386 Cotter pin $10.85 1 usually ships 1-5 days
003 272-1612 Bolt 10mm-1.50 x 45mm hex nylon locking $12.31 4 usually ships 1-5 days
004 999-0050 Nut 1/2-13 hex jam plain finish $0.99 1 ships same day
005 272-1603 Nut 7/8-14 castle $51.21 1 usually ships 1-5 days
006 272-1613 P clamp $10.85 1 usually ships 1-5 days
007 172-9147 Terminal insulator $13.76 4 ships same day
008 172-9403 Grease cap $40.45 1 usually ships 1-5 days
009 172-9404 Cup bearing $87.54 1 usually ships 1-5 days
010 172-9405 Cone bearing $78.58 1 usually ships 1-5 days
011 172-9406 Cone bearing $100.10 1 usually ships 1-5 days
012 172-9407 Cup bearing $64.53 1 usually ships 1-5 days
013 172-9408 Radial lip seal $42.98 1 usually ships 1-5 days
014 172-9409 Bushing $82.32 1 usually ships 1-5 days
015 272-2565 Drive wheel (OBSOLETE) $1,281.95 1 usually ships 16-41 days
016 172-1016 Steering plate (OBSOLETE) $146.23 1 usually ships 1-5 days
017 172-1017 Spindle weldment (OBSOLETE) $1,013.06 1 usually ships 1-5 days
018 172-1018 Splash guard (OBSOLETE) $73.01 1 usually ships 1-5 days
019a 172-1019 Drive motor (OBSOLETE) $7,287.39 1 usually ships 1-5 days
019b 172-1020 O-ring (OBSOLETE) $27.26 1 usually ships 1-5 days
019c 172-1021 Oil seal (OBSOLETE) $184.68 1 usually ships 1-5 days
019d 172-1022 Oil seal (OBSOLETE) $45.06 1 usually ships 1-5 days
019e 172-1023 O-ring (OBSOLETE) $24.97 1 usually ships 1-5 days
019f 172-1024 O-ring (OBSOLETE) $7.92 1 usually ships 1-5 days
019g 172-1025 Brush spring (OBSOLETE) $27.32 4 usually ships 1-5 days
019h 172-1026 Carbon brush $62.70 4 usually ships 1-5 days
019i 172-1019 Drive motor (OBSOLETE) $7,287.39 1 usually ships 1-5 days
019j 172-1028 Complete D.C. motor (OBSOLETE) $3,384.80 1 usually ships 1-5 days
020 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
