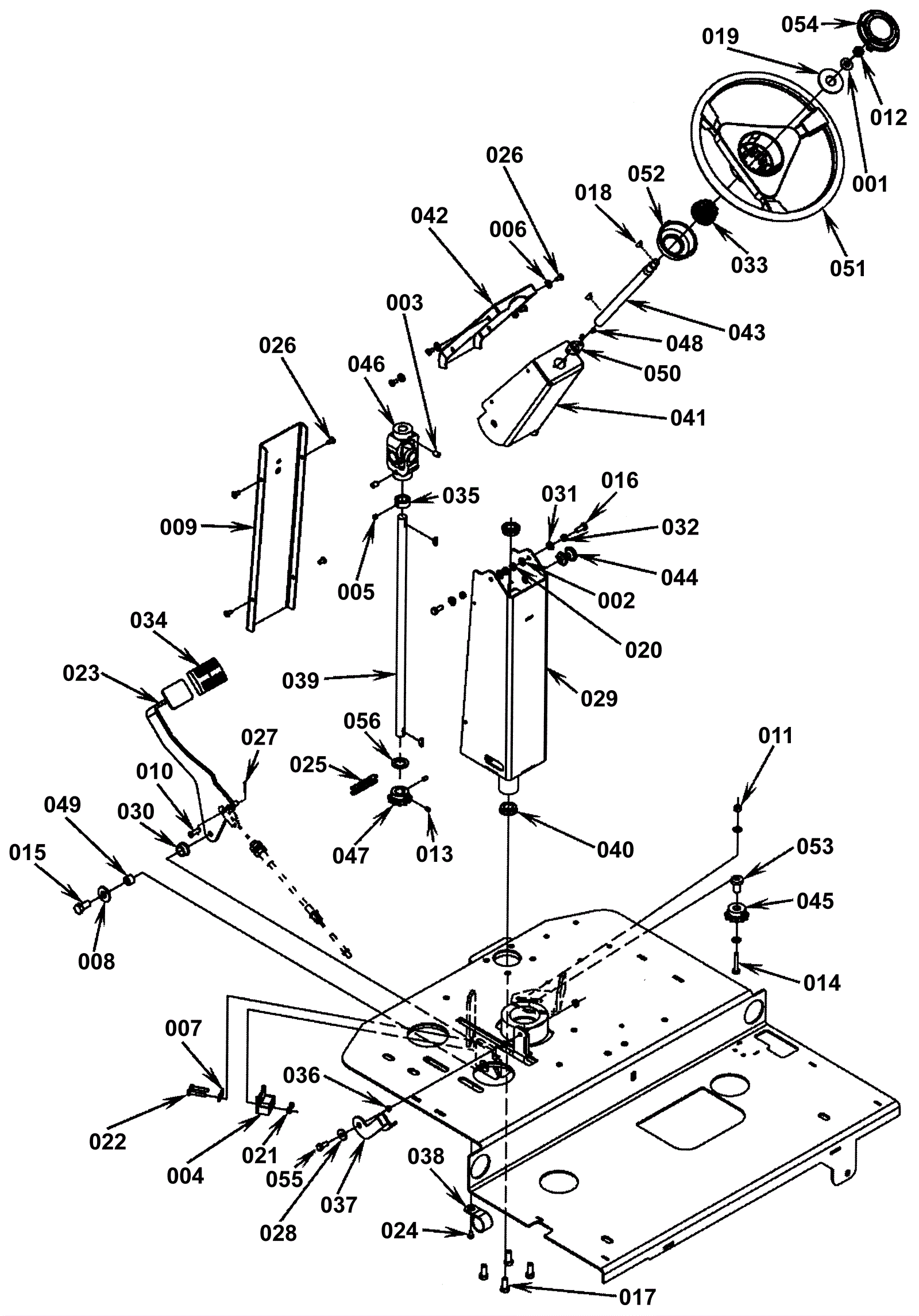

HYDRO 3800B-DISK Steering Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
002 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
003 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel $6.34 2 usually ships 1-5 days
004 172-1009 Chain support block (OBSOLETE) $22.92 1 usually ships 1-5 days
005 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 1 ships same day
006 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
007 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
008 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
009 172-1010 Lower column cover (OBSOLETE) $54.87 1 usually ships 1-5 days
010 172-9534 Clevis pin (OBSOLETE) $7.76 1 usually ships 1-5 days
011 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
012 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
013 272-1454 Screw 1/4-20 X 3/8 socket set lock $12.31 2 usually ships 1-5 days
014 999-0734 Screw 5/16-18 x 1 3/4 flat head socket zinc plated $1.25 1 ships same day
015 272-1659 Bolt 1/2-13 X 1 lock $12.31 1 usually ships 1-5 days
016 999-0810 Screw 5/16-18 x 3/4 flat head slotted stainless steel $1.56 2 ships same day
017 272-1624 Bolt M10-1.5 x 40mm hex $12.31 4 usually ships 16-41 days
018 172-9387 Woodruff key $12.31 4 usually ships 16-41 days
019 999-1363 Washer 7/8 flat stainless steel $3.48 1 ships same day
020 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
021 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
022 999-0398 Screw 1/4-20 x 1 1/2 pan head phillips zinc plated $0.99 2 ships same day
023 172-1011 Brake pedal weldment (OBSOLETE) $102.55 1 usually ships 1-5 days
024 272-1619 Bolt 6mm - 1 x 10mm hex head stainless steel $13.76 1 usually ships 1-5 days
025 172-1012 Roller chain $62.70 1 usually ships 1-5 days
026 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 8 ships same day
027 997-2503 Cotter pin 1/8 x 1 $0.99 1 ships same day
028 172-2067 Washer 11/32 x 1/8 flat $12.31 1 usually ships 16-41 days
029 172-1013 Lower column weldment (OBSOLETE) $238.52 1 usually ships 1-5 days
030 172-9388 Flanged bearing $13.76 1 usually ships 16-41 days
031 172-8919 Flanged bearing $12.31 2 usually ships 16-41 days
032 172-4008 Bushing $33.43 2 ships same day
033 172-9078 Steering wheel adapter $42.98 1 usually ships 1-5 days
034 272-1983 Rubber pedal pad $10.85 1 usually ships 16-41 days
035 172-0115 Shaft collar $29.23 1 usually ships 16-41 days
036 172-9202 Bushing $46.00 1 usually ships 16-41 days
037 172-9210 Park brake latch $40.70 1 usually ships 1-5 days
038 172-1014 P clamp $12.31 1 usually ships 1-5 days
039 172-1015 Lower steering shaft (OBSOLETE) $60.69 1 usually ships 1-5 days
040 172-9066 Bearing $63.07 2 usually ships 1-5 days
041 172-9069 Steering column $156.19 1 usually ships 1-5 days
042 172-9070 Upper column cover $35.48 1 usually ships 1-5 days
043 172-9072 Upper steering shaft $127.61 1 usually ships 1-5 days
044 172-9073 Latch assembly $137.42 1 usually ships 16-41 days
045 172-9401 Sprocket assembly $136.44 1 usually ships 1-5 days
046 172-9074 Universal joint $238.01 1 usually ships 1-5 days
047 172-8093 Sprocket $95.66 1 usually ships 16-41 days
048 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling $0.99 2 ships same day
049 172-9674 Bushing (OBSOLETE) $44.26 1 usually ships 1-5 days
050 172-9057 Bushing $18.38 1 usually ships 1-5 days
051 172-9075 Steering wheel $245.69 1 usually ships 16-41 days
052 172-9076 Cup $19.98 1 usually ships 1-5 days
053 172-9410 Flanged bushing $30.80 1 usually ships 1-5 days
054 172-9077 Cap $47.56 1 usually ships 1-5 days
055 999-0801 Screw M8-1.25 x 45mm hex head zinc $1.38 1 ships same day
056 999-1134 Washer 1 1/4 flat stainless steel $6.01 1 ships same day
