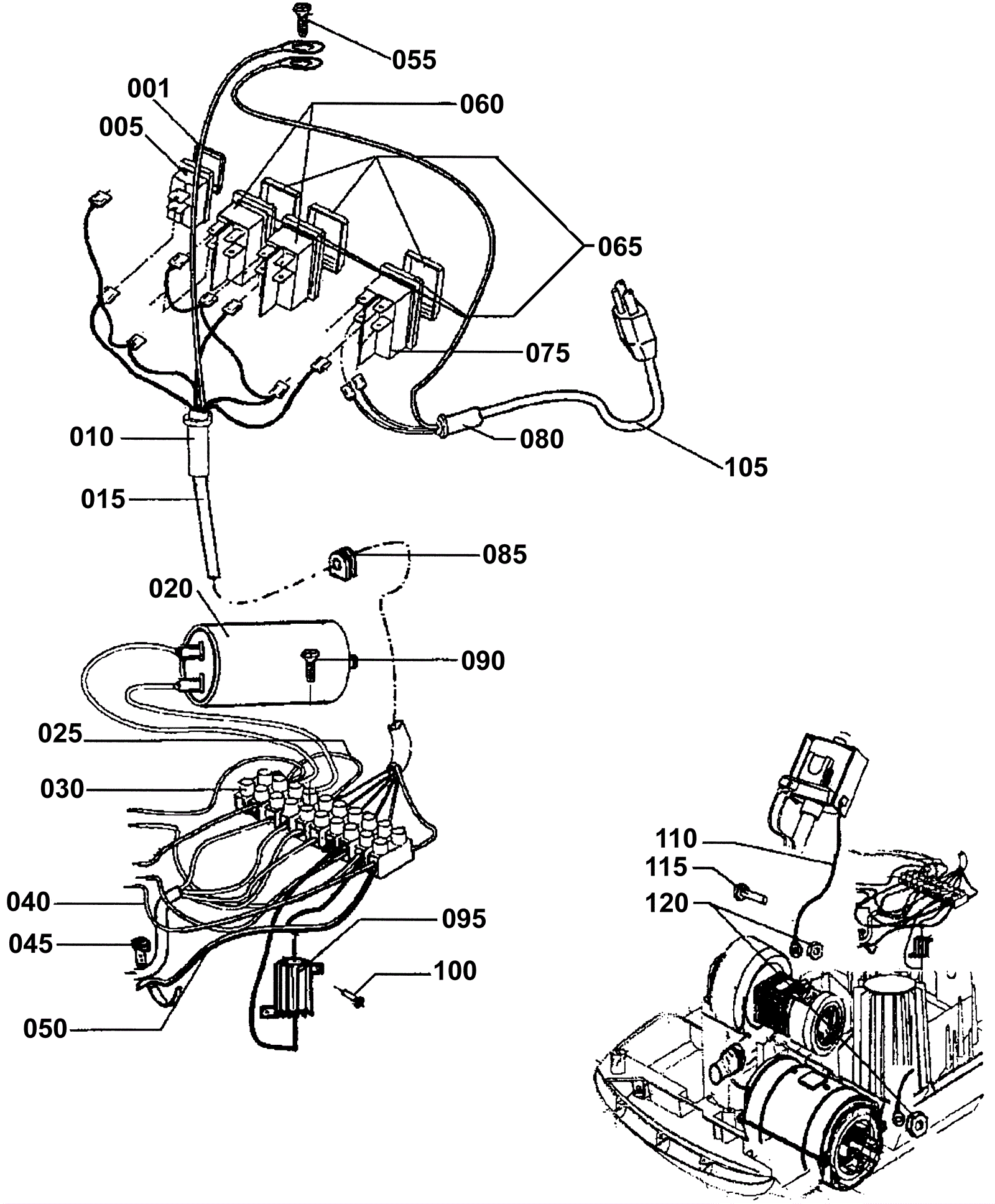

Model 340000 Wiring System-120V/60Hz

#PartDescription ReqNotesAvailability
001 272-8642 Protection cap 1
005 272-7561 Pump switch (OBSOLETE) 1
010 N/A Not available 1 (not available) Socket
015 172-0774 Internal cable (OBSOLETE) 1
020 172-0775 Capacitor 40 mf 1
025 N/A Not available 1 (not available) Strand wire
040 N/A Not available 1 (not available) 230mm strand wire
045 N/A Not available 1 (not available) Clamp
050 N/A Not available 1 (not available) 450mm strand wire
055 172-0777 Screw 4 x 5 cheese head (OBSOLETE) 1
060 272-2708 Switch kit 2
065 172-0805 Switch boots with seal (OBSOLETE) 3
075 272-5306 Switch assembly 1
080 172-0807 Socket 1
085 172-0661 Rubber socket 2
090 172-0808 Screw M2.9x16 pan phillips head thread form (OBSOLETE) 1
095 N/A Not available 1 (not available) Resistor 33 OHM
100 172-0810 Resistor CPL. 1
105 172-0811 Power supply cable, CPL. (OBSOLETE) 1
110 172-0712 Nozzle 1
115 172-0812 Screw M4 x 16 cheese head (OBSOLETE) 1
120 172-0813 Nut M4 hex stainless steel (OBSOLETE) 1
