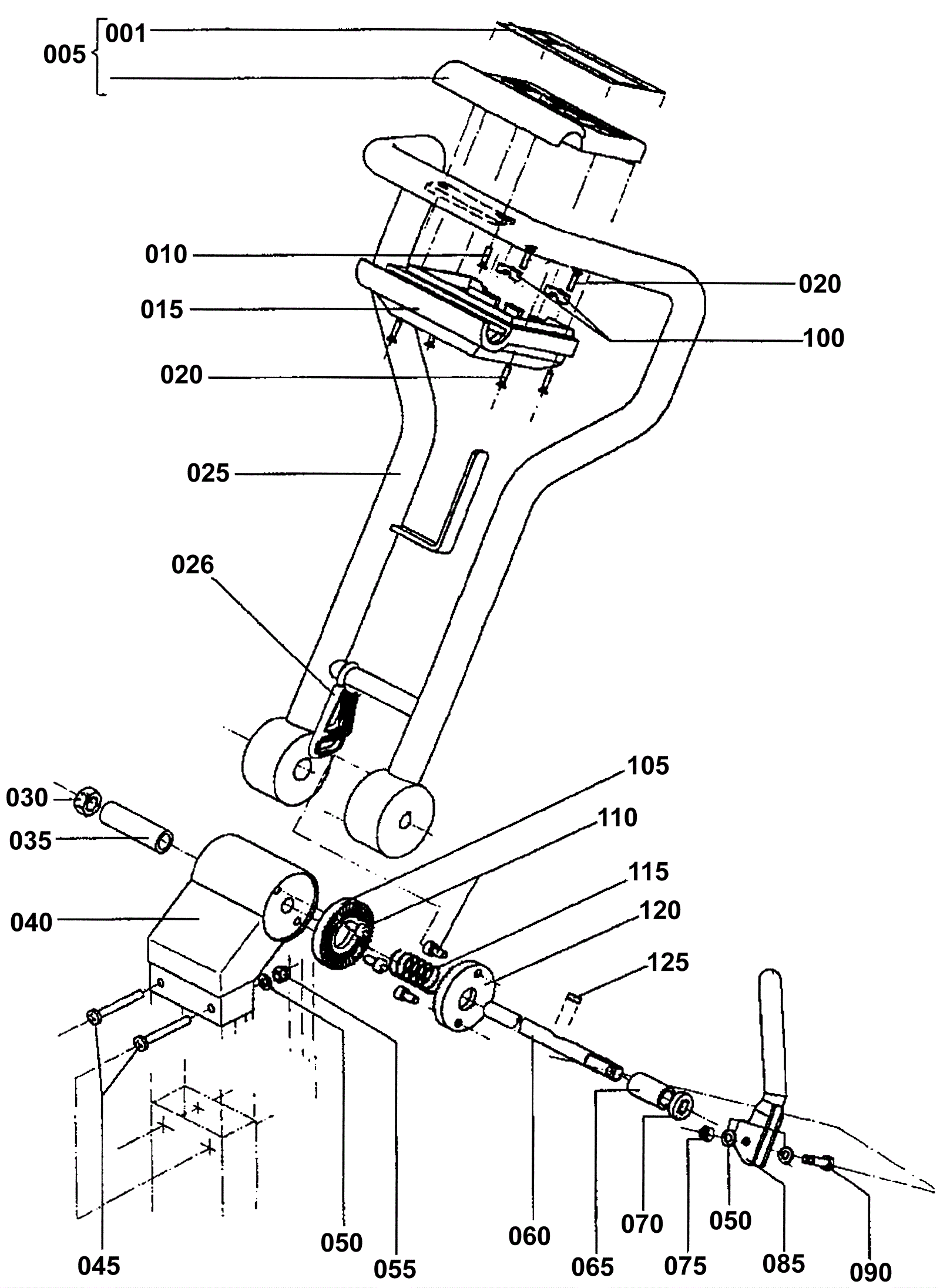

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-0758
|
Control panel decal (OBSOLETE) |
1 |
|
|
005 |
272-5472
|
Upper housing switch (OBSOLETE) |
1 |
(includes 001) |
|
010 |
999-0521
|
Screw M4-.7 x 12mm pan head phillips zinc |
2 |
|
|
015 |
272-5471
|
Lower housing switch |
1 |
|
|
020 |
999-1180
|
Screw M3-.5 x 16mm pan head stainless steel |
8 |
|
|
025 |
572-3863
|
HANDLE BAR |
1 |
|
|
026 |
572-3843
|
HOLDER CABLE |
1 |
|
|
030 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
035 |
172-0762
|
Distance sleeve |
1 |
|
|
040 |
172-0763
|
Housing (OBSOLETE) |
1 |
|
|
045 |
172-0764
|
Screw 6 x 45 pan phillips |
2 |
|
|
050 |
372-1036
|
Washer 6mm |
4 |
|
|
055 |
N/A
|
Not available |
2 |
(Nut) |
|
060 |
172-0765
|
Shaft |
1 |
|
|
065 |
572-3870
|
SPACER 13X18X32 |
1 |
|
|
070 |
572-3862
|
SPACER HANDLE ADJUSTMENT LEVER |
1 |
|
|
075 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
085 |
472-7073
|
LEVER (OBSOLETE) |
1 |
|
|
090 |
999-0779
|
Screw M6-1 x 25mm hex head plain finish |
1 |
|
|
100 |
272-2693
|
Clamp (OBSOLETE) |
2 |
|
|
105 |
172-0767
|
Ratchet Disc |
1 |
|
|
110 |
172-0768
|
Screw 6 x 12 socket thread to head |
4 |
|
|
115 |
172-0769
|
Compression spring |
1 |
|
|
120 |
172-0770
|
Ratchet disc |
1 |
|
|
125 |
172-0771
|
Key |
1 |
|
|
