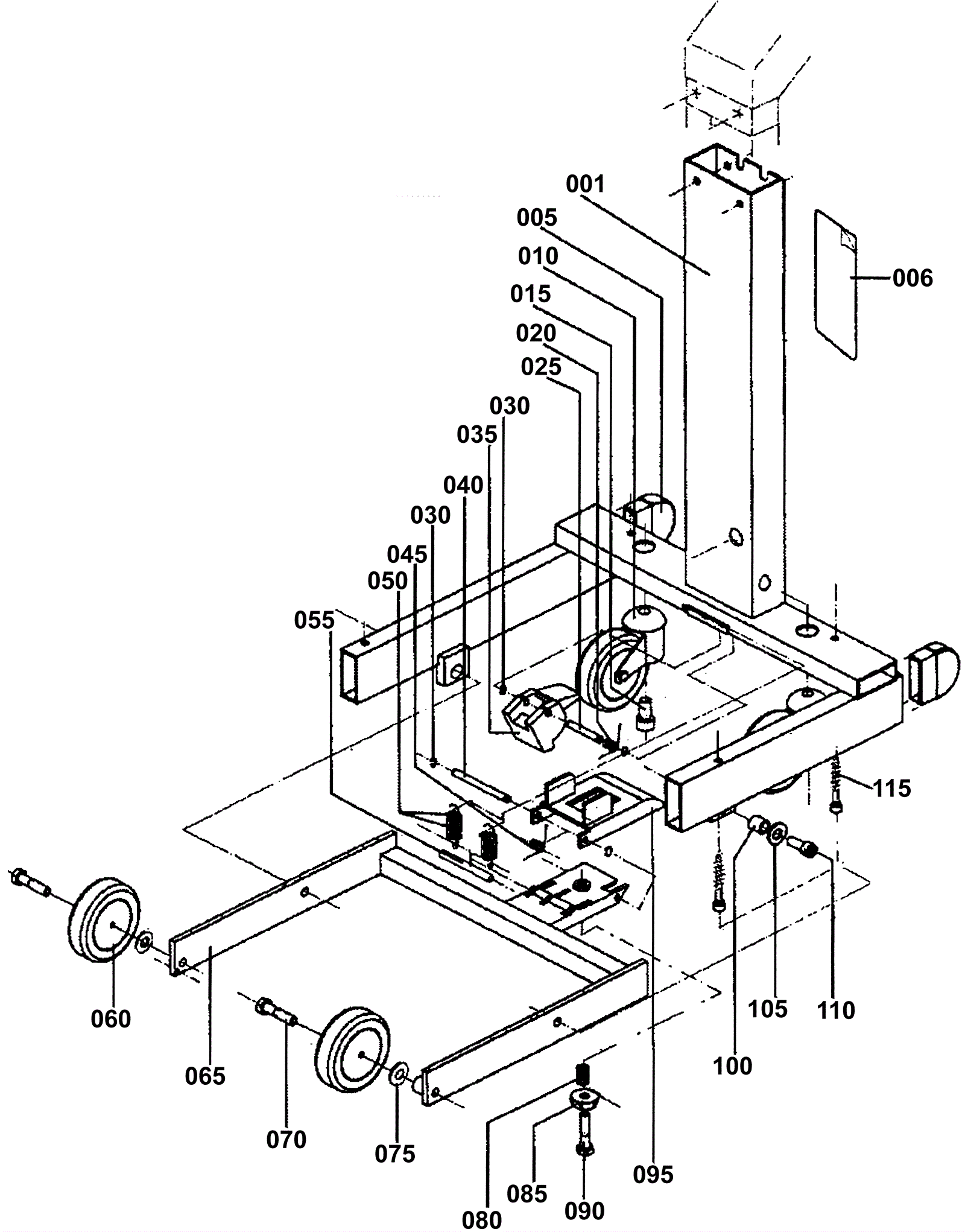

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
572-3854
|
FRAME (OBSOLETE) |
1 |
|
|
005 |
572-3855
|
PLUG |
2 |
|
|
006 |
172-5020
|
Warning decal (OBSOLETE) |
1 |
|
|
010 |
172-0741
|
Wheel guide |
2 |
|
|
015 |
N/A
|
Not available |
2 |
(Screw M10 x 20mm socket head) |
|
020 |
172-0743
|
Spring (OBSOLETE) |
1 |
|
|
025 |
172-0744
|
Bolt 55 mm (OBSOLETE) |
1 |
|
|
030 |
172-0745
|
Washer lock lifting |
4 |
|
|
035 |
172-0746
|
Lift pedal (OBSOLETE) |
1 |
|
|
040 |
172-0747
|
Bolt 68mm (OBSOLETE) |
1 |
|
|
045 |
172-0748
|
Spring |
1 |
|
|
050 |
172-0749
|
Tension spring (OBSOLETE) |
2 |
|
|
060a |
572-3399
|
WHEEL D.75X28 GREY KIT |
2 |
|
|
060b |
572-3399
|
WHEEL D.75X28 GREY KIT |
2 |
(replaced 060a) |
|
065 |
172-0752
|
Lifting frame (OBSOLETE) |
1 |
|
|
070 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
075 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
080 |
172-0753
|
Compression spring |
1 |
|
|
085 |
172-0754
|
Adjustment nut |
1 |
|
|
090 |
172-0755
|
Screw hex head |
1 |
|
|
095 |
472-7076
|
PEDAL LOWERING (OBSOLETE) |
1 |
|
|
100 |
172-0756
|
Sleeve (OBSOLETE) |
2 |
|
|
105 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
110 |
N/A
|
Not available |
2 |
(Screw) |
|
115 |
999-1303
|
Screw M6-1 x 25mm flat head phillips stainless steel |
4 |
|
|
N/S |
572-3332
|
PEDAL BRUSH LIFTING KIT (OBSOLETE) |
1 |
( includes 1, 90, 95) |
|
N/S |
172-4212
|
Plastic cap |
1 |
(after SN 1532711) |
|
