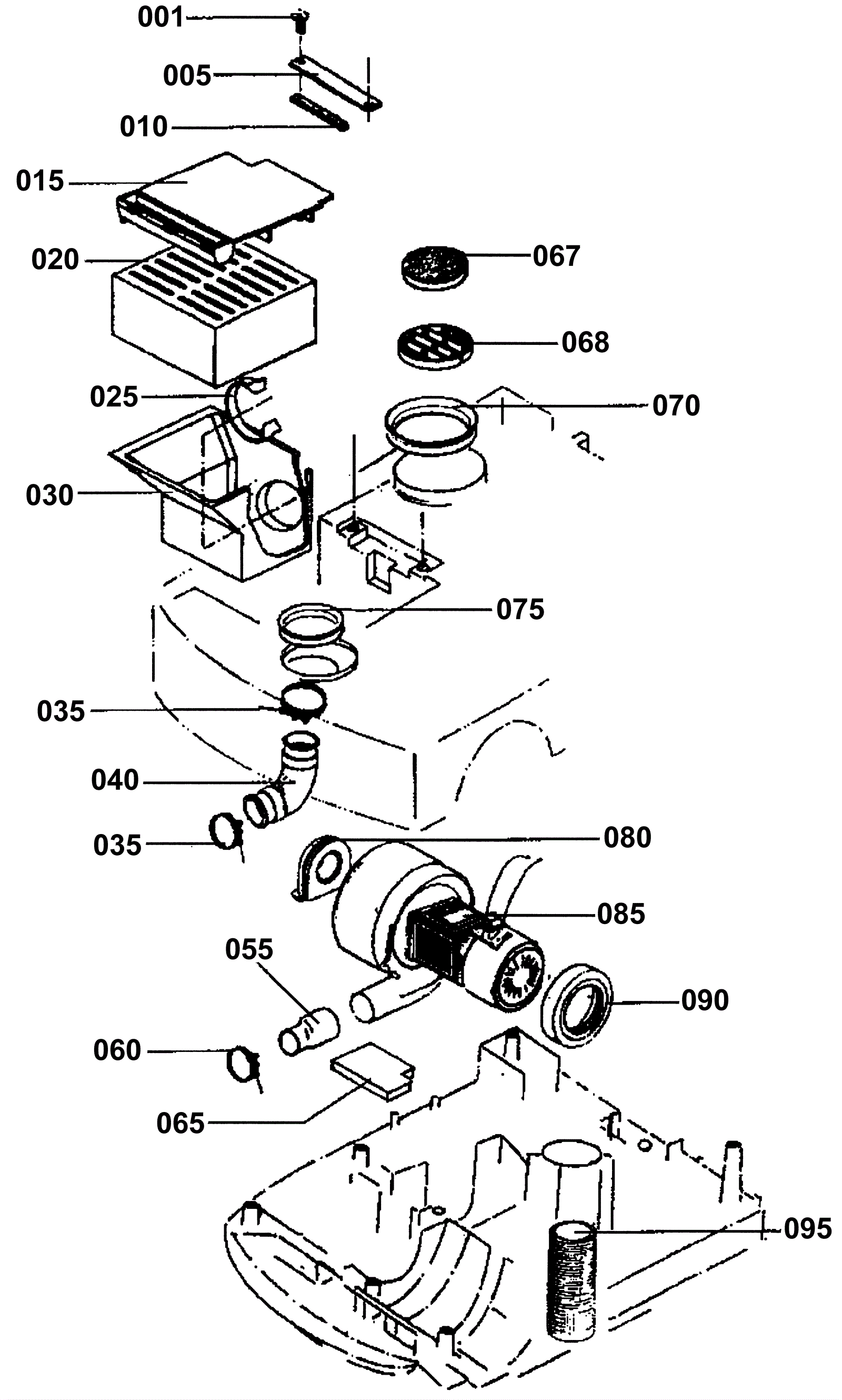

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
2 |
(Screw M5 x 20 flat thread forming phillips head) |
|
005 |
172-0722
|
Strip |
1 |
|
|
010 |
172-0723
|
Spring |
1 |
|
|
015 |
172-0724
|
Filter cover (OBSOLETE) |
1 |
|
|
020 |
172-0725
|
Sound insulation top |
1 |
|
|
025 |
N/A
|
Not available |
1 |
(Clamp collar) |
|
030 |
172-0726
|
Exhaust sound insulation |
1 |
|
|
035 |
172-0727
|
Hose clamp (OBSOLETE) |
2 |
|
|
040 |
172-0728
|
Squeegee vacuum hose |
1 |
|
|
055 |
172-0729
|
Exhaust hose |
1 |
|
|
060 |
272-4459
|
Clamp |
1 |
|
|
065 |
172-0731
|
Bottom insulation |
1 |
|
|
067 |
172-0732
|
Turbine pre-fillter |
1 |
|
|
068 |
172-0733
|
Grate suction |
1 |
|
|
070 |
172-0734
|
Turbine inlet seal |
1 |
|
|
075 |
172-0735
|
Recovery tank inlet seal (OBSOLETE) |
1 |
|
|
080 |
172-0736
|
Seal |
1 |
|
|
083 |
N/A
|
Not available |
1 |
Strand wire |
|
085 |
172-0737
|
120V vacuum motor |
1 |
|
|
090 |
572-3858
|
SEAL |
1 |
|
|
095 |
172-0738
|
Motor pre-filter |
1 |
|
|
