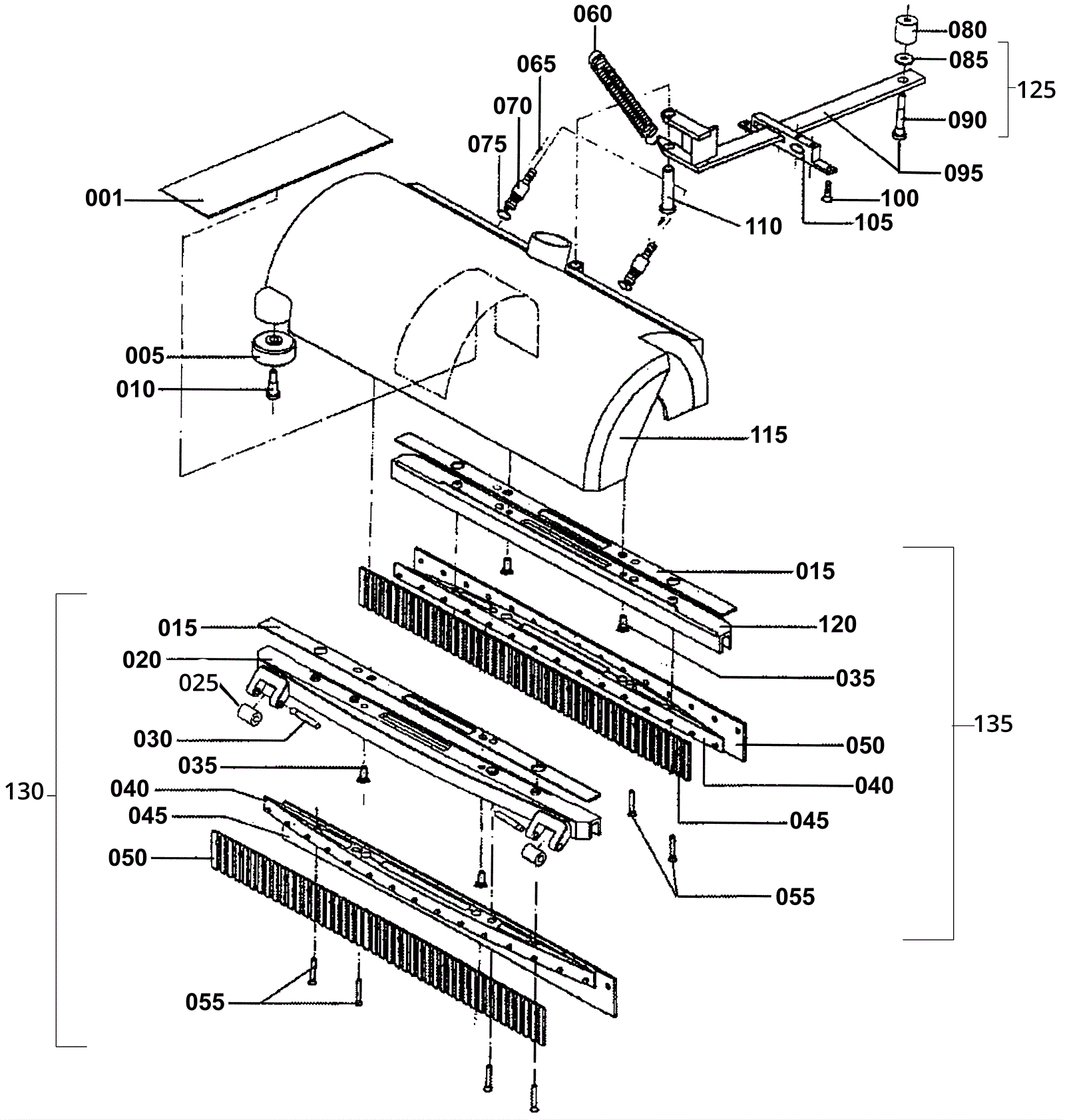

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
172-0699
|
Suction channel cover (OBSOLETE) |
1 |
|
|
005 |
172-0700
|
Bumper roller |
2 |
|
|
010 |
172-0701
|
Screw M6 x 16 (OBSOLETE) |
2 |
|
|
015 |
172-0702
|
Squeegee housing seal |
2 |
|
|
020 |
172-0703
|
Squeegee housing front (OBSOLETE) |
1 |
|
|
025 |
572-3892
|
WHEEL |
|
|
|
030 |
172-0704
|
Pin spring m6.3 x 40 |
2 |
|
|
035 |
572-3899
|
SCREW PAN HD M5 X 16 SS |
4 |
|
|
040 |
172-0706
|
Retaining strip |
2 |
|
|
045 |
372-1621
|
Squeegee blade kit |
2 |
|
|
050 |
372-1621
|
Squeegee blade kit |
2 |
|
|
055 |
999-1425
|
Screw M5-.8 x 25mm pan head stainless steel |
8 |
|
|
060 |
572-3849
|
TENSION SPRING |
1 |
|
|
065 |
172-0711
|
Screw M4.2 x 9 phillips pan head thread forming |
2 |
|
|
070 |
172-0712
|
Nozzle |
2 |
|
|
075 |
172-0713
|
Seal |
2 |
|
|
080 |
572-4222
|
Lever brush fixing kit |
1 |
|
|
085 |
572-3898
|
SPACER 6.5 X 18 X 3.5 (OBSOLETE) |
1 |
(replaced by 572-4222) |
|
090 |
572-4222
|
Lever brush fixing kit |
1 |
(replaced by 572-4222) |
|
095 |
172-0716
|
Linkage arm |
1 |
|
|
100 |
172-0717
|
Screw M4 x 20 pan head phillips thread forming (OBSOLETE) |
2 |
|
|
105 |
172-0718
|
Guide |
1 |
|
|
110 |
172-0719
|
Pin m10 x 48 |
1 |
|
|
115 |
172-0720
|
Squeegee head |
1 |
(includes 65, 70, 75, 572-3831, 572-3894,172-4211) |
|
120 |
572-3850
|
SQUEEGEE HOUSING REAR (OBSOLETE) |
1 |
|
|
125 |
572-4222
|
Lever brush fixing kit |
1 |
|
|
130 |
572-3329
|
BLADE FRONT KIT (OBSOELTE) |
1 |
(includes 15, 20, 30, 35, 40, 45, 50, 55) |
|
135 |
572-3330
|
BLADE REAR KIT (OBSOLETE) |
1 |
(includes 15, 35, 40, 45, 50, 55, 120) |
|
N/S |
172-4246
|
Squeegee head complete |
1 |
(includes 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 120) |
|
N/S |
572-3831
|
WASHER M4 |
2 |
|
|
N/S |
999-0955
|
Nut M4-.7 hex nylon lock |
2 |
|
|
N/S |
172-4211
|
Screw M4 x 40 cylinder head stainless steel |
2 |
|
|
