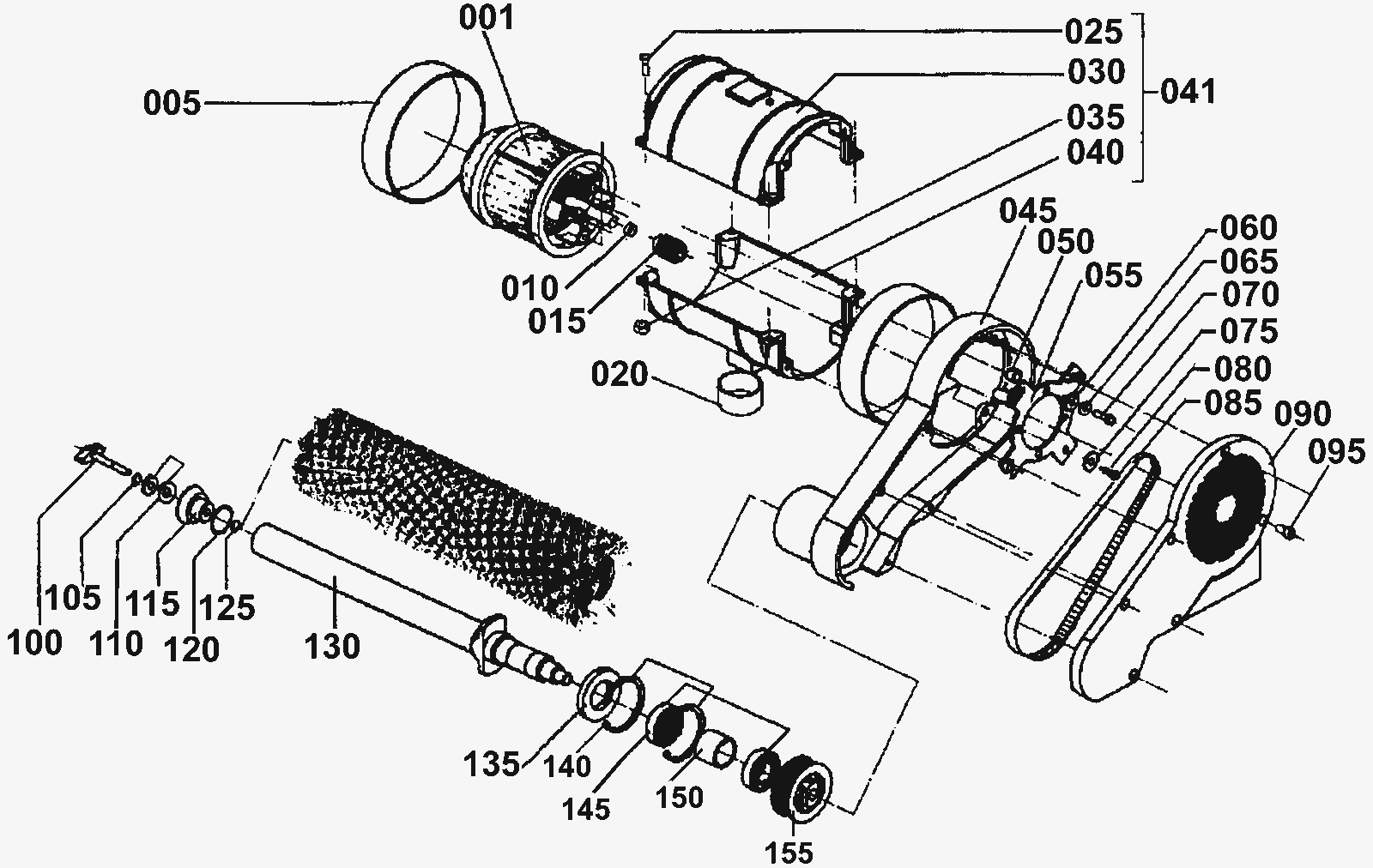

Model 340000 Brush Drive System

#PartDescription ReqNotesAvailability
001a 572-3355 MOTOR BRUSH 115V 60HZ KIT 1
001b 172-0674 Brush motor 230v (OBSOLETE) 1
005 N/A Not available 2 (rubber band)
010 472-3363 WASHER M10 UNI6592 10 PCS SET 1
015 172-4213 Aluminum alloy pulley complete (OBSOLETE) 1
020 N/A Not available 1 (rubber band)
025 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish 4
030 N/A Not available 1 (Top motor cover)
035 999-0743 Nut M5-.8 hex coarse thread 4
040 N/A Not available 1 (Bottom motor cover)
041 172-0678 Motor cover complete (OBSOLETE) 1 (includes 25, 30, 35, 40)
045 172-0679 Gear case (OBSOLETE) 1
050 N/A Not available 4 (Spacer)
055 N/A Not available 1 (Motor flange)
060 N/A Not available 4 (Insulation covering)
065 572-3833 Washer 4
070 N/A Not available 4 (Screw)
075 N/A Not available 4 (Washer)
080 172-0698 Screw M6 x 20 socket head 4
085 172-0683 Drive belt 1
090 172-0684 Gear cover (OBSOLETE) 1
095 172-0768 Screw 6 x 12 socket thread to head 6
100 172-0685 Bolt wing (OBSOLETE) 1
105 N/A Not available 1 (Washer)
110 572-3832 WASHER FLAT 6 X 18 2
115 172-0687 Compression ring (OBSOLETE) 1
120 172-4470 O-ring (OBSOLETE) 1
125 172-0689 Washer locking (OBSOLETE) 1
130 172-0690 Shaft 1
135 172-0691 Shaft seal (OBSOLETE) 1
140 172-0692 Locking ring (OBSOLETE) 2
145 172-0693 Float bal (OBSOLETE) 2
150 172-0694 Spacer sleeve 1
155a 172-0695 Pulley drive shaft (OBSOLETE) 1
155b 172-0696 1
155c 996-0842 Lite grit scrubbing brush - 500 grit - CYLINDRICAL (OBSOLETE 1
155d N/A Not available 1 (320 grit brush)
N/S 572-3333 WEAR PACK KIT 1
N/S 572-3906 SCREEN BRUSH MOTOR 1
N/S 572-3334 WEAR PACK SICA BRUSH KIT 1
N/S 572-3328 HARDWARE BRUSH FIXING KIT 1 (includes 100, 105, 110, 115, 120, 125)
