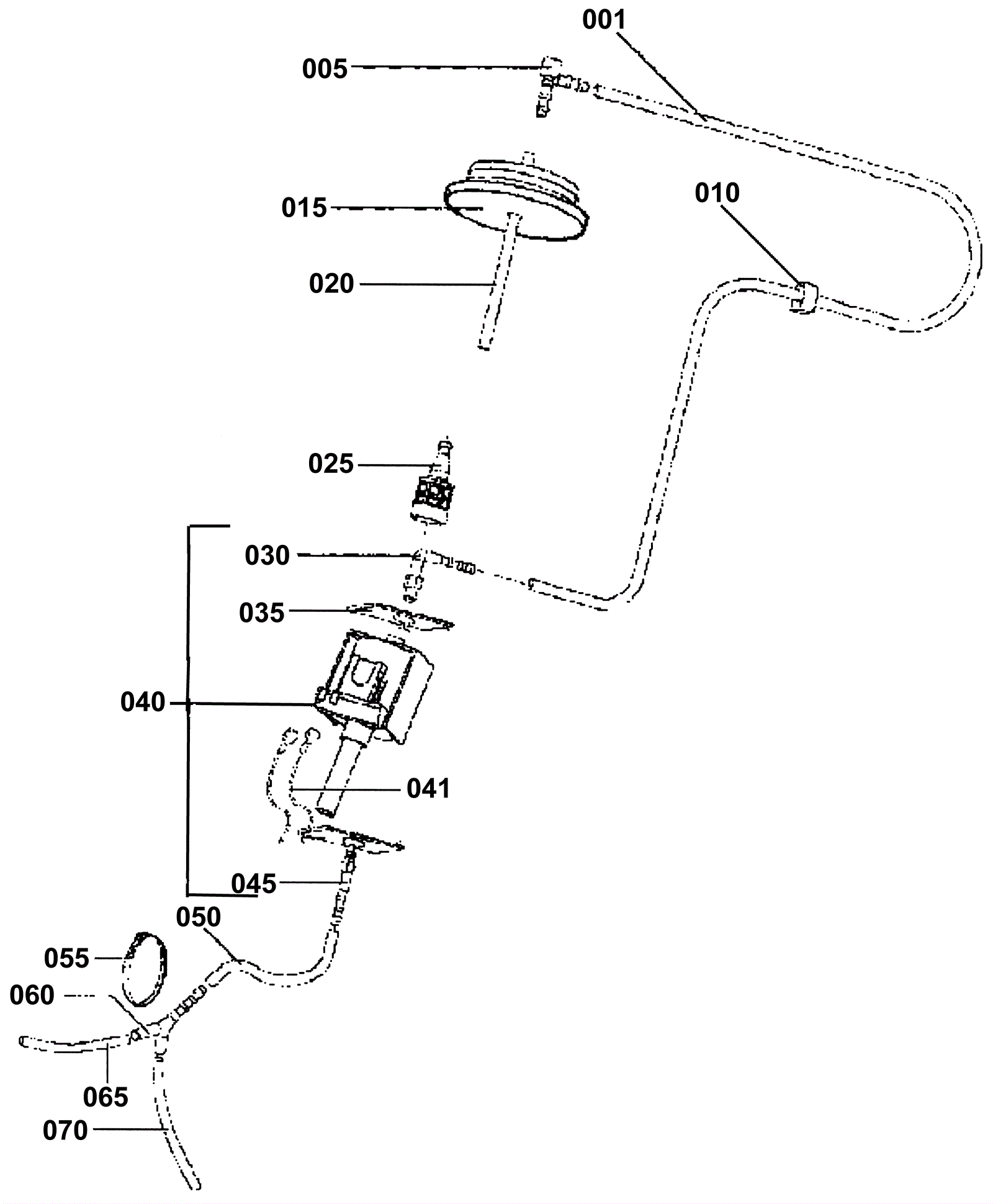

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
572-3897
|
HOSE PVC |
1 |
|
|
005 |
172-0660
|
L-connection |
1 |
|
|
010 |
172-0661
|
Rubber socket |
1 |
|
|
015 |
172-0662
|
Plug with hole |
1 |
|
|
020 |
172-0663
|
Hose |
1 |
|
|
025 |
172-0664
|
Solution filter |
1 |
|
|
030 |
172-0665
|
L-connection |
1 |
|
|
035 |
172-0666
|
Insulation board |
2 |
|
|
040 |
172-0667
|
Pump kit (OBSOLETE) |
1 |
(includes 30, 35, 41, 45) |
|
041 |
172-0712
|
Nozzle |
2 |
|
|
045 |
172-0669
|
Tube (OBSOLETE) |
1 |
|
|
050 |
572-3900
|
HOSE |
1 |
|
|
055 |
N/A
|
Not available |
1 |
(clamp) |
|
060 |
172-0671
|
Y-piece |
1 |
|
|
065 |
172-0672
|
Hose (OBSOLETE) |
1 |
|
|
070 |
172-0666
|
Insulation board |
1 |
|
|
N/S |
572-3908
|
Pump assembly without resistor (OBSOLETE) |
1 |
|
|
