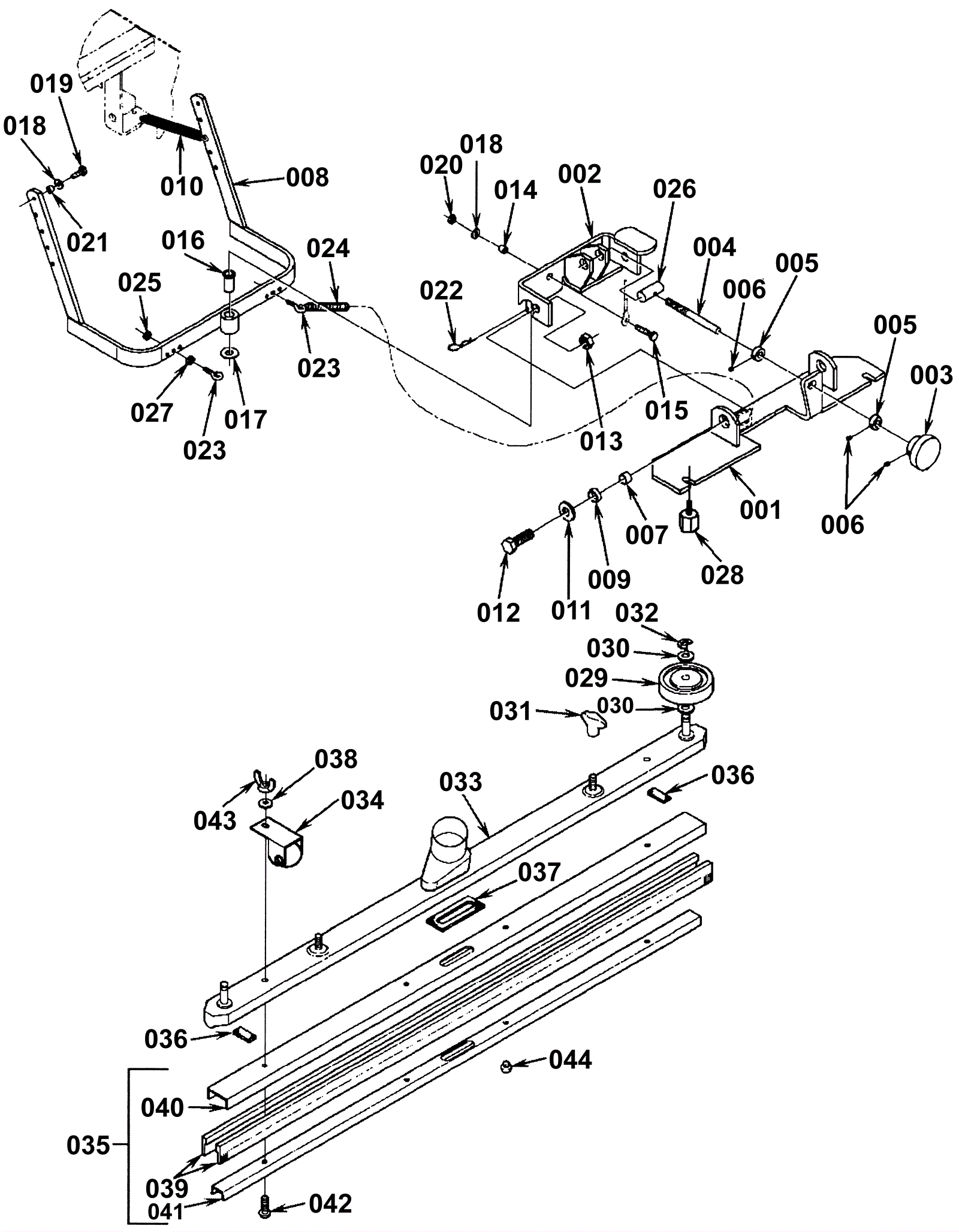

CONVERTAMATIC 20B Model 324500 Squeegee System

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 (Mounted weldment) usually ships 3-26 days
002 N/A Not available Call for price 1 (Mounted weldment) usually ships 3-26 days
003 172-0078 Knob $12.31 1 usually ships 17-28 days
004 172-0076 Adjustment rod $45.62 1 usually ships 17-28 days
005 172-0071 Collar $9.26 2 usually ships 17-28 days
006 999-0284 Screw 10-24 x 3/16 cup point socket set alloy plain finish $0.99 3 ships same day
007 172-0072 Bushing $44.58 2 usually ships 17-28 days
008 N/A Not available Call for price 1 (Linkage weldment) usually ships 3-26 days
009 172-0079 Sleeve bearing (OBSOLETE) $20.68 2 usually ships 17-28 days
010 172-2341 Extension spring $13.76 2 usually ships 17-28 days
011 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
012 999-0116 Bolt 1/2-13 x 1 1/2 hex head grade 5 $1.36 2 ships same day
013 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 2 ships same day
014 N/A Not available Call for price 1 (Bushing) usually ships 3-26 days
015 999-0822 Screw 1/4-20 x 7/8 hex head plain finish $0.99 1 ships same day
016 172-0080 Flanged bearing $31.64 1 usually ships 17-28 days
017 999-0033 Washer 7/16 SAE flat $0.99 1 ships same day
018 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
019 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling $0.99 2 ships same day
020 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
021 172-0016 Bushing $31.16 2 usually ships 1-5 days
022 997-2509 Cotter pin 1/8 x 3/4 stainless steel $0.99 2 ships same day
023 172-0542 Bolt 10-24 x 5/8 eye $9.27 2 usually ships 17-28 days
024 172-2344 Extension spring $12.31 2 usually ships 17-28 days
025 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
026 172-0070 Pin $60.76 1 usually ships 17-28 days
027 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
028 172-0882 Spacer $40.70 2 usually ships 1-5 days
029 172-0274 Guide wheel $16.50 2 usually ships 17-28 days
030 172-0404 Washer 25/64 x 5/8 x 1/16 flat $12.31 4 usually ships 17-28 days
031 172-4099 Nut 5/16-18 thumb $11.57 2 ships same day
032 172-0315 Retaining ring $10.85 2 usually ships 17-28 days
033 172-0239 Channel weldment $275.00 1 usually ships 1-5 days
034 172-0276 Roller assembly $61.49 2 usually ships 17-28 days
035 172-0008 Squeegee blade cartridge 26 inch straight (OBSOLETE) $196.37 1 usually ships 17-28 days
036 172-0275 Gasket $10.85 2 usually ships 17-28 days
037 172-0238 Gasket $10.85 1 usually ships 17-28 days
039 172-0184 Squeegee blade 30 7/8 inch (blue) $67.42 2 usually ships 17-28 days
040 172-0427 Channel (OBSOLETE) $44.99 1 usually ships 17-28 days
041 172-0428 Retainer (OBSOLETE) $24.96 1 usually ships 17-28 days
042 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
043 999-0306 Nut 1/4-20 wing zinc plated $0.99 2 ships same day
044 999-0343 Screw 1/4-20 x 1/4 pan head phillips stainless steel $0.99 2 ships same day
N/S 172-0271 Squeegee blade assembly straight (OBSOLETE) $451.00 1 usually ships 1-5 days
