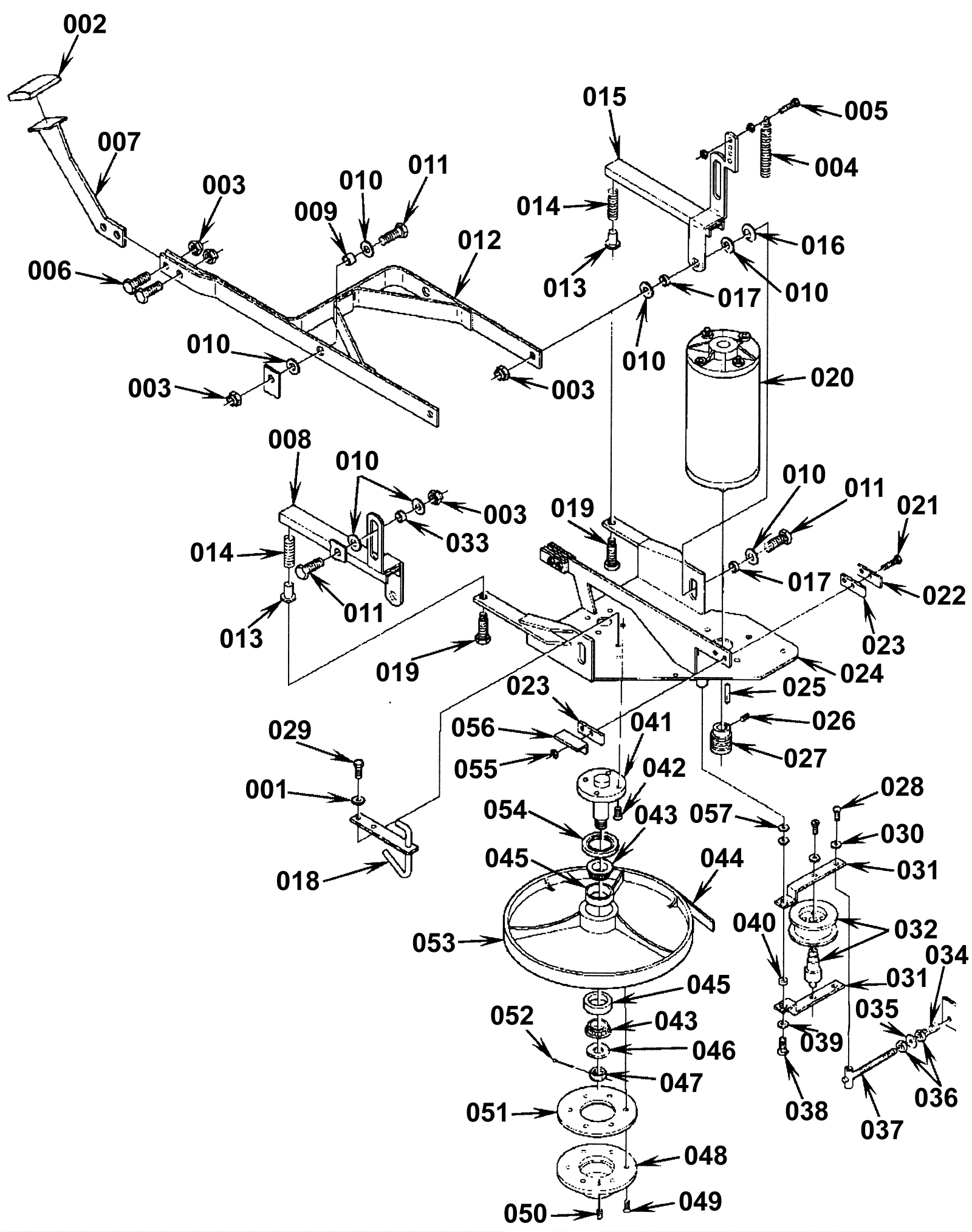

Model 324500 Brush Drive System

#PartDescription ReqNotesAvailability
001 172-0553 Washer 17/64 x 1/16 flat 2
002 272-1983 Rubber pedal pad 1
003 999-0118 Nut 1/2-13 nylon insert lock zinc plated 8
004 172-4025 Extension spring 1/2 x 6 1/4 (OBSOLETE) 1
005 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
006 999-0372 Bolt 1/2-13 x 1 3/4 hex head 2
007 N/A Not available 1 (Plate)
008 172-2216 Bracket (OBSOLETE) 1
009 172-0072 Bushing 2
010 172-0550 Washer 33/64 x 3/4 flat 14
011 999-0200 Bolt 1/2-13 x 1 1/4 hex head 6
012 N/A Not available 1 (Brush linkage)
013 172-2218 Guide bushing (OBSOLETE) 2
014 172-2219 Spring (OBSOLETE) 2
015 N/A Not available 1 Bracket
016 N/A Not available 2 (Washer)
017 172-2221 Bushing 4
018 172-2235 Solution pipe (OBSOLETE) 1
019 999-1931 Bolt 3/8-16 x 2 hex head full thread stainless steel 2
020a 172-2223 Brush drive motor 1
020b 172-2224 Carbon brush set (OBSOLETE) 1
021 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 4
022 172-2225 Plate (OBSOLETE) 3
023 172-2226 Wear strip (OBSOLETE) 4
025 172-4579 Square keyway 1
026 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 2
027 172-4558 Poly-v sheave (OBSOLETE) 1
028 172-0561 Bolt 10-24 x 3/8 hex lock 4
029 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling 2
030 999-0006 Washer 3/16 flat zinc plated 4
031 172-2229 Bracket 2
032a 172-4556 Idler assembly (OBSOLETE) 1
032b 172-2230 Pulley 1
032c 172-2231 Shaft 1
033 172-0139 Bushing 2
034 172-2232 Spring (OBSOLETE) 1
035 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1
036 999-0430 Nut 5/16-18 hex jam plain finish 2
037 172-2233 Linkage (OBSOLETE) 1
038 181-0019 Screw 5/16-18 x 3/4 hex head 1
039 999-0123 Washer 1/4 SAE flat zinc plated 1
040 172-0162 Bushing 1
041 172-4573 Stud shaft 1
042 172-4624 Screw 10-24 x 1/2 flat head phillips thread forming 4
043 172-4570 Bearing 2
044 172-4563 Poly-v belt (OBSOLETE) 1
045 172-4571 Bearing cup 2
046 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened 1
047 999-0425 Nut 9/16-12 hex slotted plain finish 1
048a 172-4566 Drive cap (silver) (OBSOLETE) 1
048b 172-4651 Drive cap (gold) (OBSOLETE) 1
050 172-6044 Catch (OBSOLETE) 1
051 172-4567 Gasket (OBSOLETE) 1
052 172-0781 Cotter pin .06 x .75 1
053 172-4598 Pulley assembly 1
054 172-4572 Seal shaft 1
055 999-0152 Nut 1/4-20 nylon insert lock zinc plated 6
056 172-2234 Bracket (OBSOLETE) 1
057 172-6237 Washer 3/8 bowed (OBSOLETE) 2
N/S 996-0855 Polypropelene scrubbing brush 1
N/S 996-0372 Big mouth pad holder (left hand thread) 1
N/S 996-0858 Polypropelene scrubbing brush 1
N/S 996-0377 18 inch lite grit scrubbing brush - 500 grit 1
N/S 996-0047 18 inch heavy grit stripping brush - 80 grit 1
N/S 172-4599 Clutch plate 1
N/S 996-0020 18 inch medium grit scrubbing brush - 180 grit 1
N/S 996-0854 Lite grit scrubbing brush - 500 grit 1
N/S 996-0901 Pad driver 1
N/S 996-0071 19 inch pad driver 1
N/S 996-0865 Union mix scrubbing brush 1
N/S 996-0860 Extra heavy grit stripping brush - 46 grit 1
N/S 172-4600 Plastic clutch plate for NP92 1
N/S 996-0853 Extra heavy grit stripping brush - 46 grit 1
N/S 996-0375 18 inch polypropylene scrubbing brush 1
N/S 996-0859 Polypropelene scrubbing brush 1
N/S 996-0712 20 inch polypropelene scrubbing brush 1
N/S 996-0709 20 inch pad driver 1
N/S 996-0864 Medium grit scrubbing brush - 180 grit 1
N/S 996-0852 Extra heavy grit stripping brush - 46 grit 1
N/S 996-0857 Medium grit scrubbing brush - 180 grit 1
